Gabriel Verd Arquitectos

46 Social Houses

46 Social Houses
© Roland Halbe
46 Social Houses
© Roland Halbe

46 SOCIAL HOUSES

Gabriel Verd Arquitectos

LOCATION
Mairena Del Aljarafe, Spain

PHOTOGRAPHS
Roland Halbe

CATEGORY
Housing

AREA
6738 m²

YEAR
2011

COLLABORATORS
Federico Farina, Ronit Shmaryahu

TECHNICAL ARCHITECT
Eduardo Vázquez López

STRUCTURES
Santiago Bermejo

INSTALLATIONS
IDD Consultores

MANUFACTURERS
Vmzinc

Text description provided by architect.

The project was built in an area of residential expansion in the outer suburb of Seville, in the south of Spain.

46 Social Houses
© Roland Halbe
46 Social Houses
© Roland Halbe

The small size of the plot and the high housing density that was required suggested a court-type solution.

The patio played a key role as an area for social interaction and made it possible to achieve the objective of giving the 46 apartments (2 or 3 bedrooms) two prospects – on the inner courtyard and on the street.

46 Social Houses
© Roland Halbe
46 Social Houses
© Roland Halbe

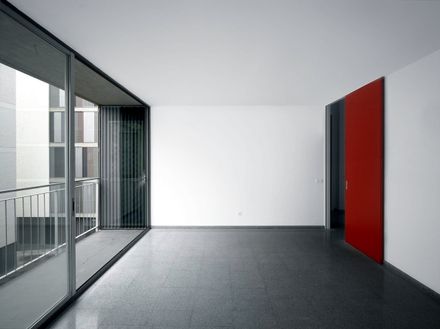

Each apartment is divided by a central access with service facilities.

The bedrooms have tall, narrow windows and are on the northern side while the sitting rooms and kitchens that give onto the souther side have large windows.

The terraces are designed as outdoor extensions of the sitting rooms and their projections shade the large windows during the summer months while allowing the sun to enter during the winter.

46 Social Houses
© Roland Halbe
46 Social Houses
© Roland Halbe

This means that all the apartments are exposed on both sides, with cross ventilation.

On the ground floor, shops are separated by entrances to the vertical circulation systems which go through the block from one side to the other, linking the internal courtyard and the road.

The complex is complete with parking spaces and store rooms for each apartment.

46 Social Houses
© Roland Halbe
46 Social Houses
© Roland Halbe

The materials, which are those for low-income housing, are finished in simple ways, such as pre-coloured plasterwork with different textures and nuances, depending on the surface to be made.

The use of corrugated zinc panels in five different alloys – opaque on the ground floor and microperforated on the upper floors of the apartments – gives the impression of a space with colours and reflections that change during course of the day.

46 Social Houses
© Roland Halbe


46 Social Houses
Elevation

46 Social Houses

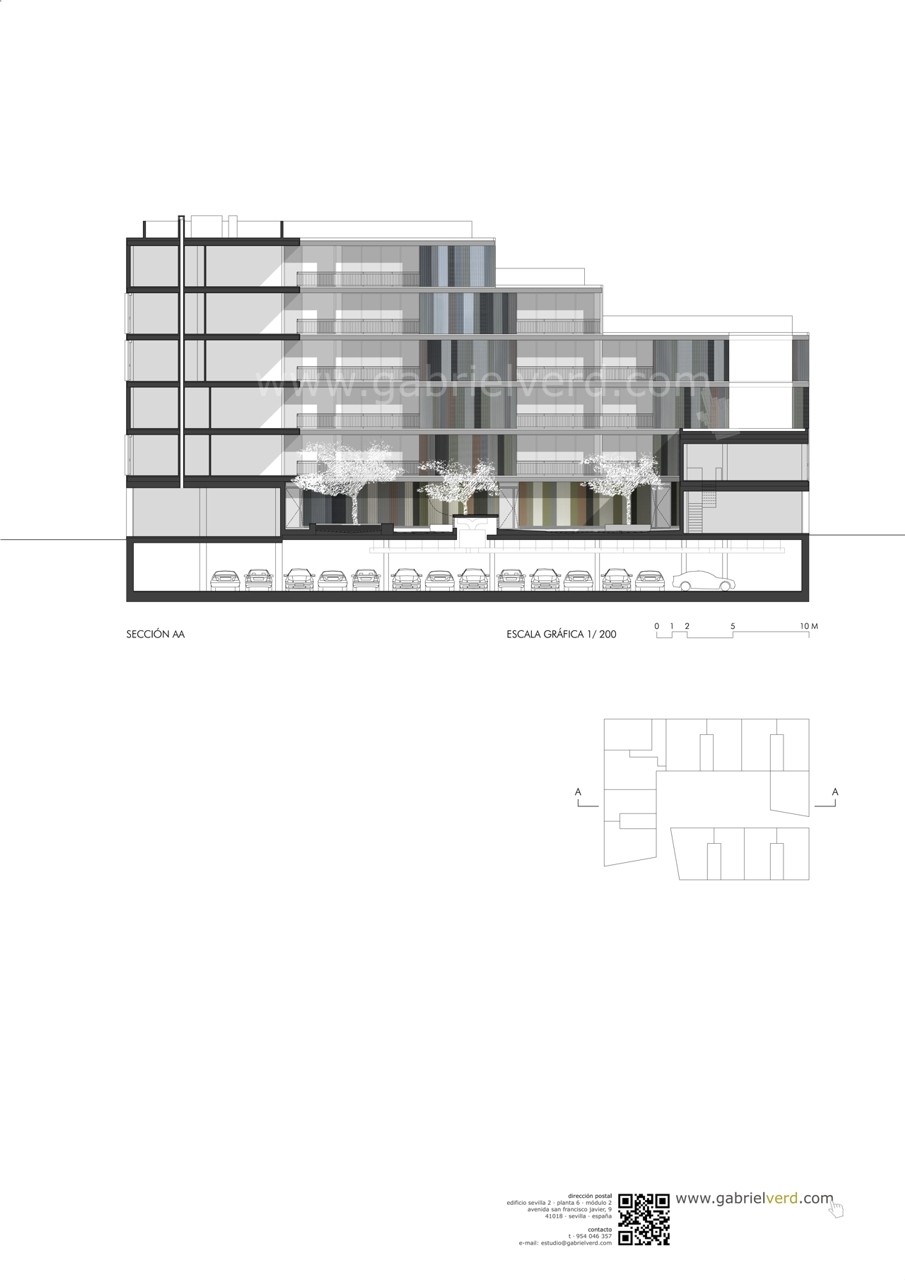

Section

46 Social Houses
Section

46 Social Houses
Section


46 Social Houses
Floor Plan
46 Social Houses
First Floor Plan
46 Social Houses
Ground Floor Plan
46 Social Houses
Site Plan


46 Social Houses

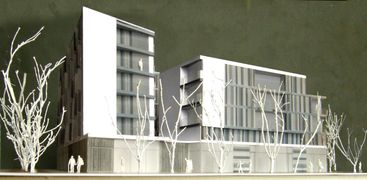

Model
46 Social Houses
Model
46 Social Houses
Model
