CHB CAMPINAS F1 STATE SCHOOL

MMBB Arquitetos

ARCHITECTS
MMBB Arquitetos

PHOTOGRAPHS
Nelson Kon

AREA
3000 m²

COLLABORATORS
Eduardo Ferroni, M·rcia Terazaki, Jaques Rordorf, Marina Sabino, Paula Cardoso, Renata Vieira e Thiago Rolemberg

YEAR
2003

LOCATION
Campinas, Brazil

CATEGORY
Educational Architecture, Schools

Chb Campinas F1 State School
© Nelson Kon
Chb Campinas F1 State School
© Nelson Kon

Text description provided by architect.

The project for this primary school is part of a group of four pilot projects developed by the FDE - Fundação para o Desenvolvimento da Educação,

Chb Campinas F1 State School
© Nelson Kon
Chb Campinas F1 State School
© Nelson Kon

(Educational Development Foundation) to define a standard school format and experiment with the application of a prefabricated structural system.

The school was built in a housing complex currently being constructed in Campinas by the São Paulo State Government.The lot is located in an area reserved for the construction of public facilities.

Chb Campinas F1 State School
© Nelson Kon
Chb Campinas F1 State School
© Nelson Kon

It faces onto a square that completes the set of public spaces planned for the estate.

 The way the school was sited opened the student and staff entrances onto the square and accommodated an open patio on the opposite, north-facing side of the plot.

Chb Campinas F1 State School
© Nelson Kon
Chb Campinas F1 State School
© Nelson Kon

The project defined the indoor multisports court as the spatial centre of the programme, thus creating a large and festive school.

The ground floor is composed around the sports court, which helps preserve the continuity of the site.

Chb Campinas F1 State School
© Nelson Kon
Chb Campinas F1 State School
© Nelson Kon

As such, the upper floors and circulation and living spaces were also organized around this void, therefore establishing an interconnection among the spaces.

The prefabricated structural system with reinforced and prestressed concrete elements was defined as a rectangular system of beams and pillars “welded” in-situ.

Chb Campinas F1 State School
© Nelson Kon
Chb Campinas F1 State School
© Nelson Kon

This welding gives the structure a monolithic deportment, and using concrete block masonry for the siding, a depredation-resistant technique that requires minimal maintenance.

Departing from this welding, we planned for large continuous panels of painted sheathing for the masonry and structure, which contrary to the rhythm of the modular elements of the prefabricated construction, confers unity upon the conjunct.

Chb Campinas F1 State School
© Nelson Kon


Chb Campinas F1 State School
© Nelson Kon
Chb Campinas F1 State School
© Nelson Kon
Chb Campinas F1 State School
© Nelson Kon


Chb Campinas F1 State School
Fachadas
Chb Campinas F1 State School
Fachadas


Chb Campinas F1 State School
Cortes
Chb Campinas F1 State School
Cortes


Chb Campinas F1 State School
Benheiros
Chb Campinas F1 State School
Cozinha


Chb Campinas F1 State School
Detalhes
Chb Campinas F1 State School
Detalhes
Chb Campinas F1 State School
Detalhes
Chb Campinas F1 State School
Detalhes
Chb Campinas F1 State School
Detalhes
Chb Campinas F1 State School
Detalhes


Chb Campinas F1 State School

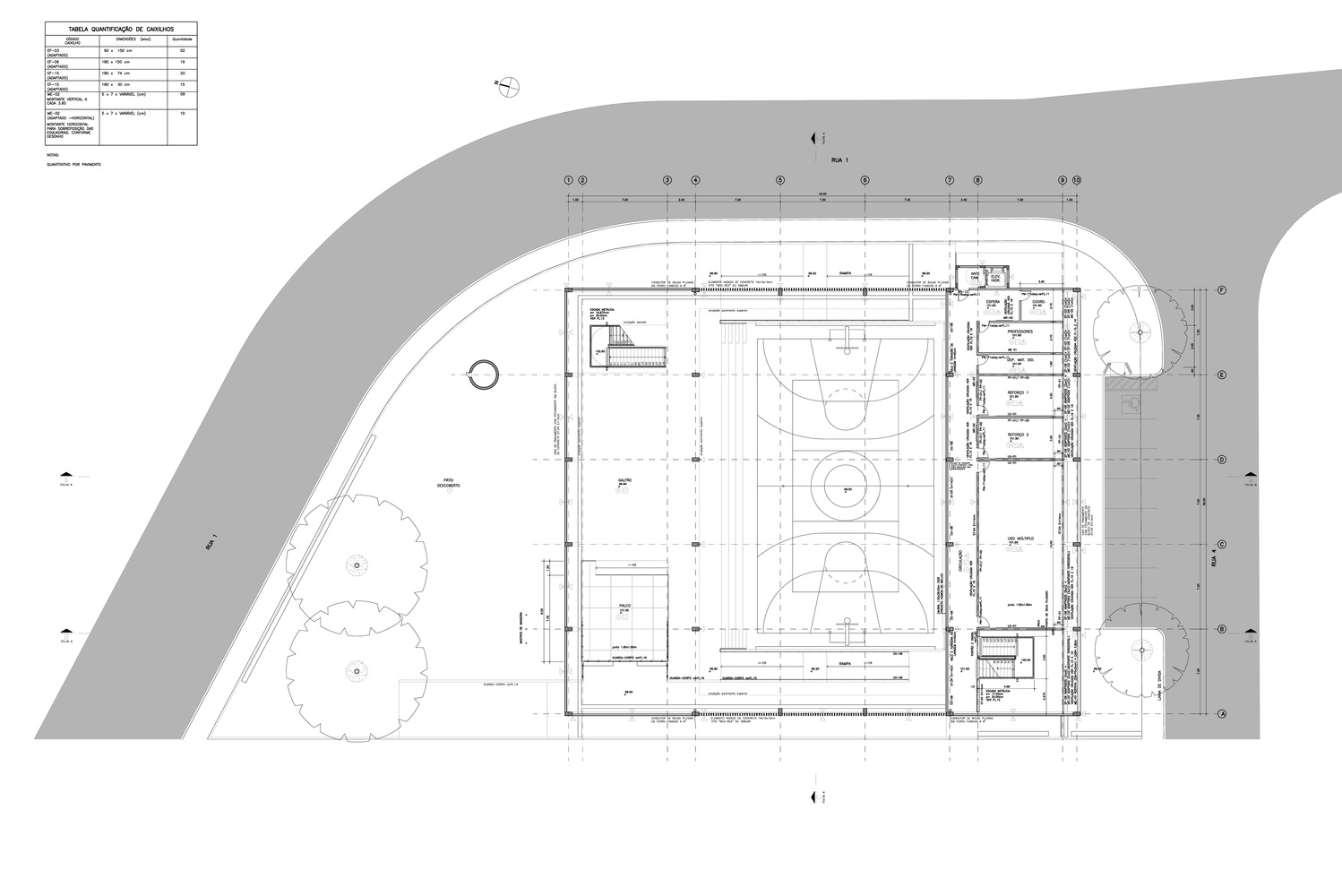

Planta Pavimento Térreo
Chb Campinas F1 State School
Planta 1° Pavimento
Chb Campinas F1 State School
Planta Cobertura
Chb Campinas F1 State School
Planta 2° Pavimento
Chb Campinas F1 State School

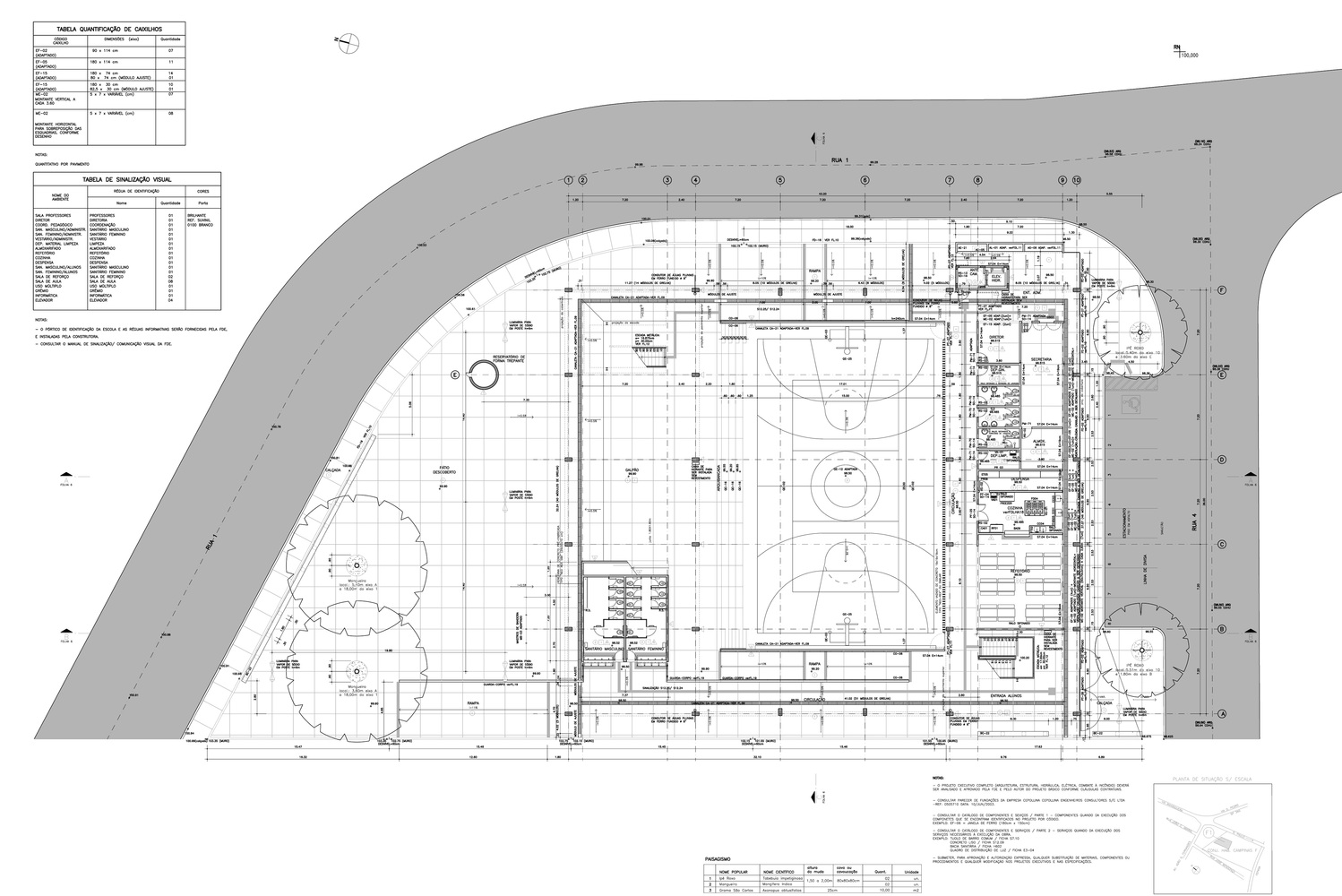

Planta Terreno
Chb Campinas F1 State School
Plantas


Chb Campinas F1 State School
Escada
