Sukhumvit 50 House

SUKHUMVIT 50 HOUSE

DFAP Architect

Sukhumvit 50 House
© Boonchet Chuangsuvanich
Sukhumvit 50 House
© Boonchet Chuangsuvanich

ARCHITECTS
DFAP Architect

MANUFACTURERS
American Standard, COTTO, Tostem

AREA
620 m²

CATEGORY
Houses

YEAR
2017

LOCATION
Khlong Toei, Thailand

PHOTOGRAPHS
Boonchet Chuangsuvanich

STRUCTURE ENGINEER
Thanachit Chinagorn

INTERIOR ARCHITECTS
DFAP Architect (Chaydan Satien, Variya Vongprachum)

Sukhumvit 50 House
© Boonchet Chuangsuvanich

Text description provided by architect.

This house is located at the end of the alley (soi) with a width of 5.00 meters. The site is surrounded by residential buildings with some part of the front entrance facing the street. Both sides of the land are neighbor’s houses and behind is a 4-storey apartment.

Because the limitations of the site and its surrounding environment, the design approach for the house is to have adequate spaces, easily accessible, views and to meet the owner’s requirements, which result in a 3-storey building of multi-rectangular forms.

The design of the building starts with rectangular boxes, deducted into a U-shaped with a central court that connect between the outside and inside spaces.

The projected mass of building on the 2nd and 3rd floors provides a parking space for the ground floor and views for the 3rd floor.

Sukhumvit 50 House
© Boonchet Chuangsuvanich
Sukhumvit 50 House
© Boonchet Chuangsuvanich

The second floor is a box interlocking into the main building as a metaphor for interlocking bodies. The architectural style mimics the characteristics of the homeowner who is a doctor.

She requires her house to have connecting and challenging spaces like doctor challenges with diagnosis and treatment for the patients.

Sukhumvit 50 House
© Boonchet Chuangsuvanich
Sukhumvit 50 House
© Boonchet Chuangsuvanich
Sukhumvit 50 House
© Boonchet Chuangsuvanich

The long rectangular box is the owner's master bedroom. The cantilever make the entrance stand out and provide an open space for the ground floor.

Sukhumvit 50 House
© Boonchet Chuangsuvanich

The solid wall offers privacy to the rooms, the terrace and windows provide view of large trees and green landscape opposite from the house. Save this picture!

Sukhumvit 50 House
© Boonchet Chuangsuvanich

To bring natural light and good ventilation, the house is designed into a U-shaped building with a small central court that continues into the house, which creates a good atmosphere for living and dining areas. This space is two-storey height.

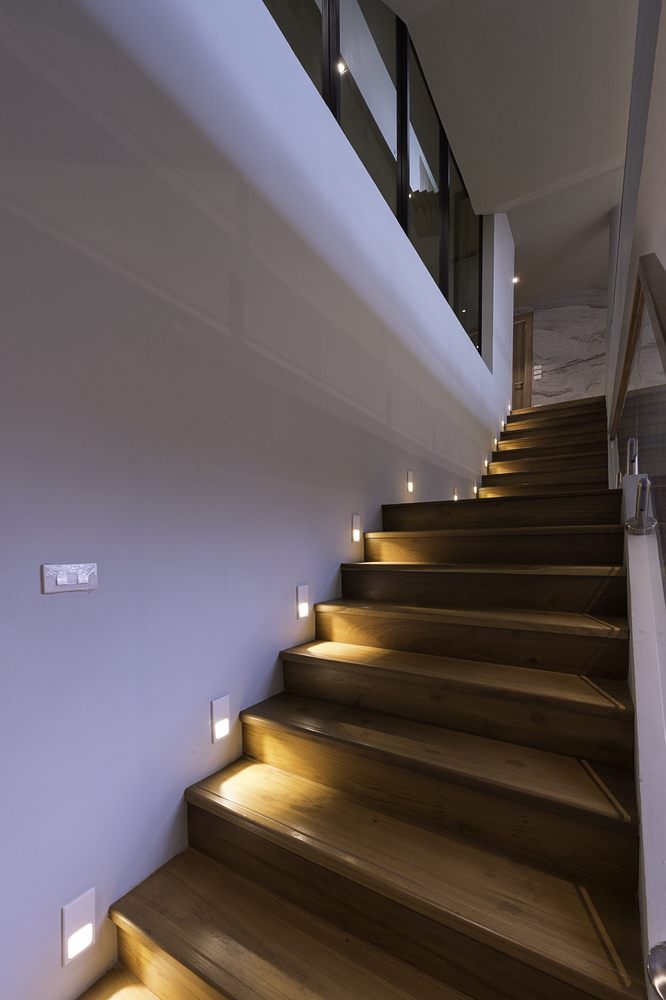

There is a staircase from first to third floor and the open void from the second floor hallway to the living room on the ground floor that creates an open space that overlooking into the garden outside the house. This space allows air to flow into the house and bring natural light.

Sukhumvit 50 House
© Boonchet Chuangsuvanich


Sukhumvit 50 House
Elevation
Sukhumvit 50 House
Elevation
Sukhumvit 50 House
Elevation
Sukhumvit 50 House
Elevation


Sukhumvit 50 House
1st Level Plan
Sukhumvit 50 House
2nd Level Plan
Sukhumvit 50 House
3rd Floor Plan
Sukhumvit 50 House
Section


Sukhumvit 50 House
Diagram
