Urbantainer Inc.

Malpyo Factory

Malpyo Factory
© Seungbok Lee

MALPYO FACTORY

Urbantainer

ARCHITECTS
Urbantainer

CLIENT
Malpyo

LANDSCAPE DESIGN
Urbantainer

CONSTRUCTION
Dasan Engineering Co., Ltd.

MODULAR CONSTRUCTION
Jesam Construction Co., Ltd.

MECHANICAL ENGINEER
ENG Energy Lab

EXTERIOR COLOR & SIGNAGE
Yejee Lee, Minjeong Choi

STRUCTURE ENGINEER
Gawon Structural Engineers Co.,Ltd.

ELECTRICAL ENGINEER
Kunil MEC

PHOTOGRAPHS
Seungbok Lee

AREA
4797 m²

YEAR
2017

LOCATION
Gimpo-si, South Korea

CATEGORY
Factory

Malpyo Factory
© Seungbok Lee

Text description provided by architect.

Malpyo, a family business with a long history spanning over three generations, is expanding into the cosmetics sector.

Malpyo Factory
© Seungbok Lee
Malpyo Factory
© Seungbok Lee

URBANTAINER’s mission is to capture the spirit of the company’s transition to a modern and trend-oriented brand with the new company headquarter.

The starting point for the design concept was to overcome the literal notion of a factory as a place of production by creating a space that symbolically carries the energy of the company’s new brand identity, by effectively utilising shipping containers in emotion-evoking colours.

Malpyo’s new headquarter consists of two parts, the office area and the production facilities. In order to create an efficiently built space with a unique character, the office area was built with shipping containers.

Malpyo Factory
© Seungbok Lee
Malpyo Factory
© Seungbok Lee
Malpyo Factory
© Seungbok Lee

Due to its large scale, the production facilities are based on a steel-frame structure, coated with container skin.

What makes this building unique is the arrangement of the two parts–the office area is angled as if it diagonally protruded from he the production hall.

Before the redesign, the factory was a typical production, completely shielded to the outside world, and with a clear separation between office space and production area. In this setup, machinery served the sole purpose of manufacturing goods.

Malpyo Factory
© Seungbok Lee
Malpyo Factory
© Seungbok Lee

An important part of URBANTAINER’s design strategy is aimed at breaking up this dichotomy. The separating wall between the office and production areas is made of glass and provides a transparent view from the office to the factory and vice versa.

The machinery now becomes part of the interior design of the space.

Malpyo Factory
© Seungbok Lee
Malpyo Factory
© Seungbok Lee

All procedures that make up the heart of the factory, from manufacturing to logistics, are made visible and become a crucial part of communicating the brand essence to visitors. The design also extends to the functional dimension of the production process.

In order to maximize production efficiency, the space layout now accommodates the flow of the complete production chain from arriving raw materials to manufacturing to the finished product by taking into account workers’ movements and optimising space utilisation.

Malpyo Factory
© Seungbok Lee
Malpyo Factory
© Seungbok Lee

With the new design layout, separate delivery and loading zones for the raw materials and the finished product section guarantee a smooth un-interrupted workflow.

Another point of optimization for the workers is the addition of direct access to their rest facilities to cut unnecessary passages.

Malpyo Factory
© Seungbok Lee
Malpyo Factory
© Seungbok Lee

One early challenge for the construction of the Malpyo headquarter building was the characteristic position of the building. While located between a main and a side street, access from the main road was not possible due to local traffic regulations.

The resulting necessary detour to access the building from the side street and confusing facade alignment presented an enormous inconvenience for visitors.

Malpyo Factory
© Seungbok Lee
Malpyo Factory
© Seungbok Lee

This problem was solved by aligning the building mass along a steep diagonal axis which opens up the facade view from the main road, allowing visitors to instantaneously find easy access to the main entrance.


Malpyo Factory
© Seungbok Lee
Malpyo Factory
© Seungbok Lee
Malpyo Factory
© Seungbok Lee


Malpyo Factory
East and West Elevations
Malpyo Factory
North and South Elevations


Malpyo Factory
Sections
Malpyo Factory
First Level Plan
Malpyo Factory
Second Level Plan
Malpyo Factory

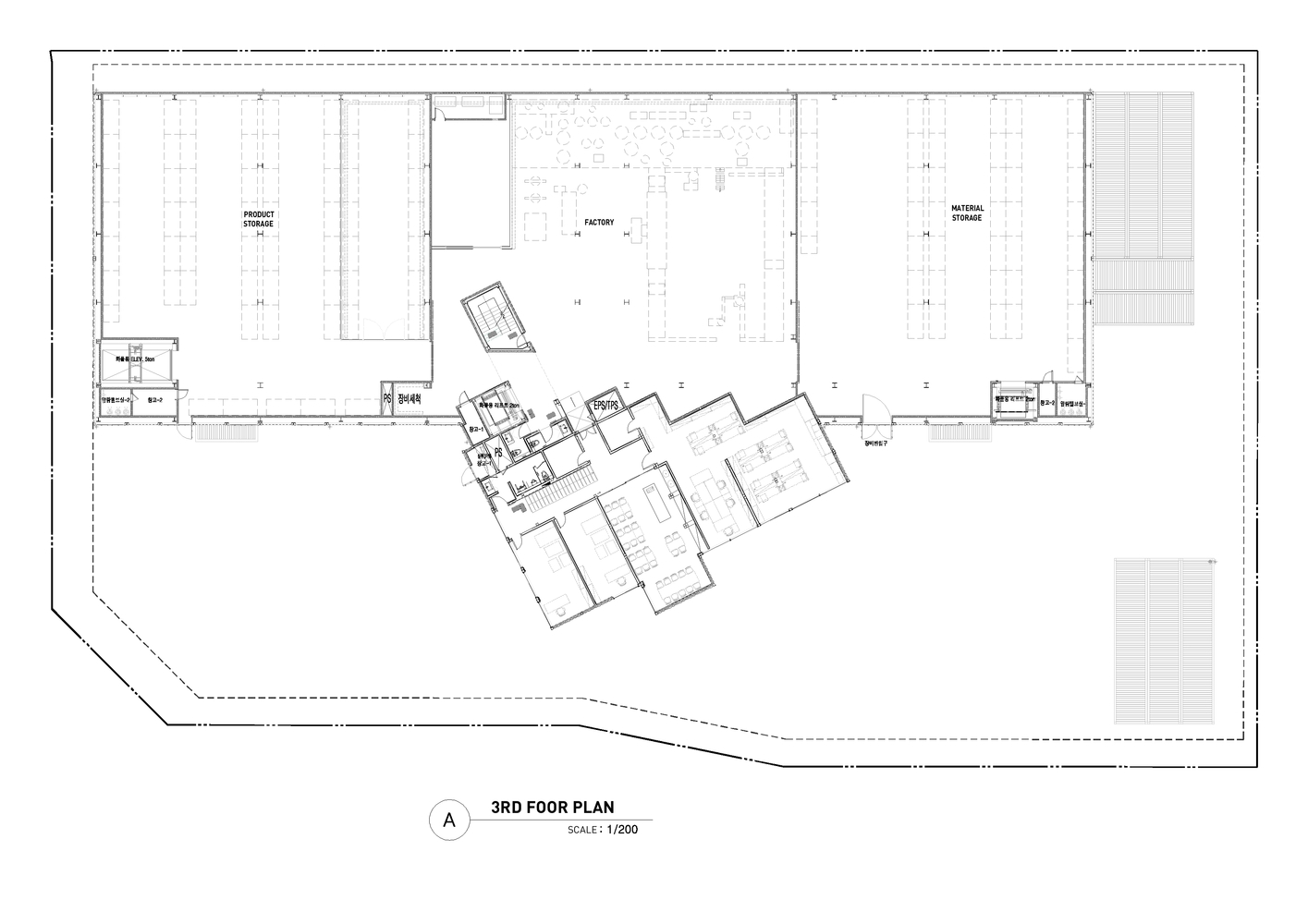

Third Level Plan
Malpyo Factory
Fourth Level Plan
Malpyo Factory

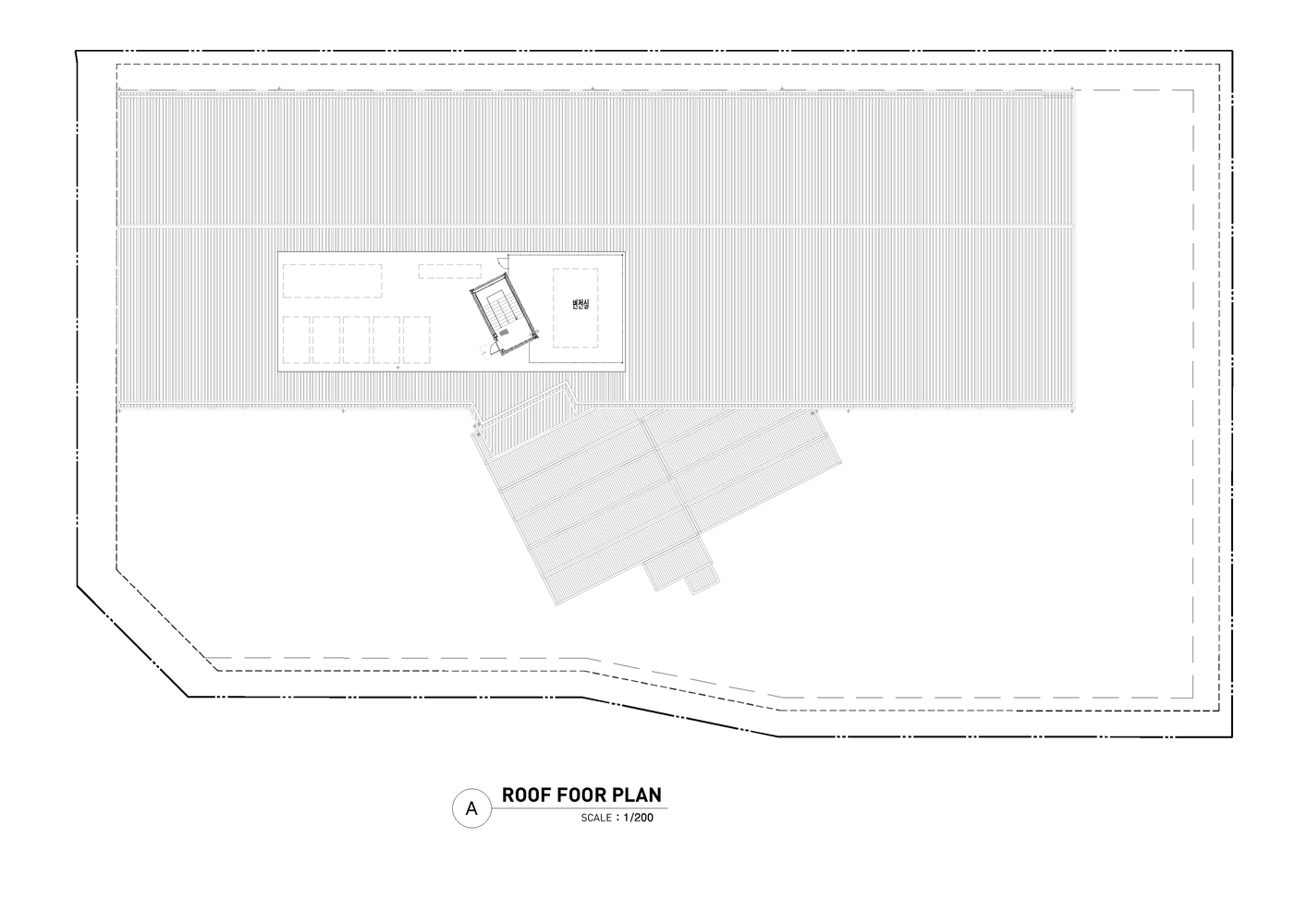

Rooftop Plan
