House-Workshop For An Artist

House-Workshop For An Artist
© Mathias Jacob

HOUSE-WORKSHOP FOR AN ARTIST

Planmaestro

CATEGORY
Mixed Use Architecture, Houses, Interior Design

LOCATION
Peñalolén, Chile

ARCHITECTS
Planmaestro

AREA
135

YEAR
2017

PHOTOGRAPHS
Mathias Jacob

MANUFACTURERS
Atika, CLC, Metalcon, Sikkens HLSe, Ventanas Chile, Wasser

STRUCTURE CALCULATION
Ruiz Saavedra Ingenieros

CONSTRUCTION
Julio Hernández

House-Workshop For An Artist
© Mathias Jacob
House-Workshop For An Artist
© Mathias Jacob

Text description provided by architect.

The requirement was a building that would accommodate an artist’s studio and residential space for occasional use as a weekend house.

House-Workshop For An Artist
© Mathias Jacob
House-Workshop For An Artist
© Mathias Jacob

The 1.500 sqm site is located in Peñalolén, a suburban district with low construction density, and neighbors some undeveloped sites.

This condition leaves the building very exposed to its surroundings, so the client required that the project would limit the exposure of the interior spaces and provide privacy.

House-Workshop For An Artist
© Mathias Jacob
House-Workshop For An Artist
© Mathias Jacob
House-Workshop For An Artist
© Mathias Jacob
House-Workshop For An Artist
© Mathias Jacob

The project also had to be capable of becoming an exclusively residential building at a future time, so it needed spaces to allow new uses and an extension to be planned.

The privacy of interior spaces was addressed by limiting and directing the views to and from the exterior. This was accomplished by arranging mass and void volumes through the perimeter, placing openings to allow certain views.

House-Workshop For An Artist
© Mathias Jacob
House-Workshop For An Artist
© Mathias Jacob

The mass and void relation is contained between the two horizontal planes of floor and ceiling. The mass volumes offer interior space for furniture and closets.

House-Workshop For An Artist
© Mathias Jacob
House-Workshop For An Artist
© Mathias Jacob

The voids open views and access to the exterior through floor-to-ceiling windows, which are receded from the facade, forming covered exterior spaces.

House-Workshop For An Artist
© Mathias Jacob
House-Workshop For An Artist
© Mathias Jacob

This confinement between two horizontal planes is only interrupted in the central room, where space is defined by a ceiling at a higher level.

The difference between both ceiling heights allows natural light to enter through a ribbon window. The rooms are divided into three zones. To the east, there are two bedrooms and two bathrooms.

House-Workshop For An Artist
© Mathias Jacob
House-Workshop For An Artist
© Mathias Jacob

The central room is a social area, containing living, dining, kitchen facilities and entry hall. This space opens to a covered terrace to the north.

To the west, the working studio opens to the central room and to the terrace and is also connected to a covered service yard with a sink, where the work with wet materials is done.

House-Workshop For An Artist
© Mathias Jacob
House-Workshop For An Artist
© Mathias Jacob

The future transformation for exclusively residential use considers the following operations. The studio space will become a dining room and will open to a larger kitchen located in the current service yard.

The central room will be used as a larger living room. Finally, an extension to the east will add a master bedroom and bathroom, and another bedroom.

House-Workshop For An Artist
© Mathias Jacob
House-Workshop For An Artist
© Mathias Jacob

The construction system consists of concrete foundations, steel frame structure and light steel internal walls. A ventilated facade of vertical wooden slats was used for the exterior perimeter.

The use of the same material for all exterior walls reinforces the perception of mass volumes interrupted by void spans. The ventilated facade also helps with the thermal control of interior space.

House-Workshop For An Artist
© Mathias Jacob


House-Workshop For An Artist

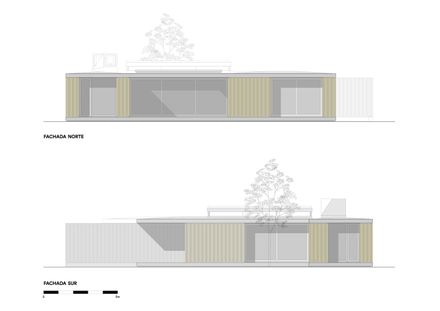

North and South Elevations
House-Workshop For An Artist
East and West Elevations


House-Workshop For An Artist
Sections
House-Workshop For An Artist
Details


House-Workshop For An Artist
Ground Floor Plan
House-Workshop For An Artist
Site Plan
