KNOCK KNOCK HEON

Guga Urban Architecture

ARCHITECTS
Guga Urban Architecture

LOCATION
Jingwan-dong, Eunpyeong-gu, South Korea

CATEGORY
Houses

AREA
175 m²

YEAR
2016

PHOTOGRAPHS
Young-chae Park

STRUCTURAL ENGINEER
TheKuJo Engineering

MANUFACTURERS
American Standard, DAELIM BATH, Eagon, Goryeong Rooftile, Sunilwood

SUPERVISION
guga Urban Architecture

AWARD
Korean Architecture Awards 2017, Bronze prize / Korea Institute of Registered Architects

Text description provided by architect.

Knock Knock Heon is located on the border of Seoul, surrounded by an exceptional landscape made up by a forest in the foreground and the famous Bukhansan in the background.

Knock Knock Heon
© Young-chae Park
Knock Knock Heon
© Young-chae Park

Both the architect and the client agreed that the relationship to the mountain would be the guiding line of the project. The building shape is the result of the combination of two conditions.

The first one is the relation to the mountain and the second one is the shape of the plot. In order to reduce the density of the house, the spaces are articulated between two Madang (void between the constructions).

Knock Knock Heon
© Young-chae Park
Knock Knock Heon
© Young-chae Park

The first one is the residual spaces generated by the relationship between the serrated typology and the Damjang (Korean boundary walls) taking the form of a fragmented courtyard and reinforcing the visual connection from the house to the mountain.

Knock Knock Heon
© Young-chae Park
Knock Knock Heon
© Young-chae Park

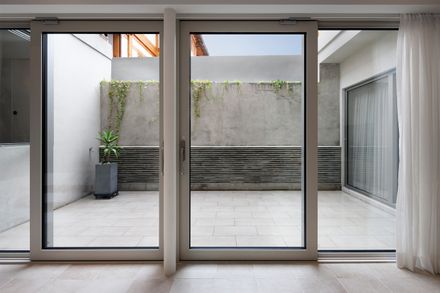

The second Madang is located on the backside of the house. More introverted, the sunken Madang is like a patio bringing light and air to the basement spaces.

Knock Knock Heon
© Young-chae Park
Knock Knock Heon
© Young-chae Park

The house is divided into two parts. The level difference between the house floor levels and the road were carefully calculated in order to find the balance.

Namely: A constant visual connection to the mountain, the penetration of the light into the inferior storey and an acceptable gap between the level of the road and the entrance.

The inferior storey was designed like a bedrock supporting the Hanok. Fulfilling all the functional need of the house, the basement could be used as an autonomous part.

Knock Knock Heon
© Young-chae Park
Knock Knock Heon
© Young-chae Park

As the Hanok is slightly detached from the ground, the light and the air can penetrate into the interior spaces through a clearstory window.

Organized around the sunken Madang (patio), the cryptic spaces are bright and comfortable, and does not give the feeling to be in a basement. In order to create a fluid and comfortable space, an anti-chamber was needed.

Knock Knock Heon
© Young-chae Park
Knock Knock Heon
© Young-chae Park

Carefully positioned, the vestibule and staircases are essential parts of the house, not only they act like as generous thresholds between the two floors but also it allows the superior spaces to focus on its relationship with the mountain.

The evolution of the structure material highlights the soft transition between the inferior to the superior part. Indeed, starting from the concrete of the basement, we are passing through the brick walls of the interconnected staircase to the wooden structure of the Hanok.

The traditional Numaru (a space with a wooden floor that has a panoramic view) inspired the dining room.

In this house, the Numaru lays as an object on a concrete plate. This project shows the capacity of the evolution of the traditional Korean Hanok.

Knock Knock Heon
© Young-chae Park
Knock Knock Heon
© Young-chae Park

Thanks to this new shape and the new technologies, this house was able to free some architectural and mechanical constraints from the traditional Hanok and produce more comfort, light and space.

Knock Knock Heon fits the need of the modern society but in the same allow a coexistence between the traditional and modern lifestyles.

https://vimeo.com/183645967


Knock Knock Heon
Courtesy of guga Urban Architecture
Knock Knock Heon
Courtesy of guga Urban Architecture
Knock Knock Heon
Courtesy of guga Urban Architecture
Knock Knock Heon
Courtesy of guga Urban Architecture
Knock Knock Heon
Courtesy of guga Urban Architecture


Knock Knock Heon
Cross Section

Knock Knock Heon
Axonometric Section


Knock Knock Heon
Lower Floor Plan
Knock Knock Heon
Upper Floor Plan


Knock Knock Heon
Sketch 1
Knock Knock Heon
Sketch 2
