BRICK PASSIVE DESIGNED UNIVERSITY

TAISEI DESIGN Planners Architects & Engineers

CATEGORY
University

LOCATION
Xuân Quan, Vietnam

AREA
3731

ARCHITECTS
TAISEI DESIGN Planners Architects & Engineers

PHOTOGRAPHS
Hiroyuki Oki

MANUFACTURERS
Viglacera, Công ty TNHH sơn Kansai and Alphanam, Công ty cổ phần nhôm Việt Dũng, Công ty nhôm định hình Sapa- Bến Thành ( Vijalco)

CLIENT (CONCEPT DESIGN)
Tokyo Human Health Sciences University Vietnam

LOCAL FIRM
Vinata International joint venture

CITY
Xuân Quan

YEAR
2017

COUNTRY
Vietnam

Text description provided by architect.

Located in a recently developed area at about 30 minutes driving from Hanoi (Vietnam), the Japanese nursing university created a learning environment where Japanese and Vietnamese culture blend together.

Brick Passive Designed University
© Hiroyuki Oki
Brick Passive Designed University
© Hiroyuki Oki

The client (who is a University based in Japan) is aiming to expand abroad and introducing their knowledge (Nursing, Physical Therapy, Prosthetics & Orthotics) to Vietnamese students.

Our main focus was to make use of design techniques and materials found in the local area. This gave us the opportunity to create a more sustainable and economic structure with a visually daring design reaching out to Vietnam’s local architecture.

Brick Passive Designed University
© Hiroyuki Oki
Brick Passive Designed University
© Hiroyuki Oki

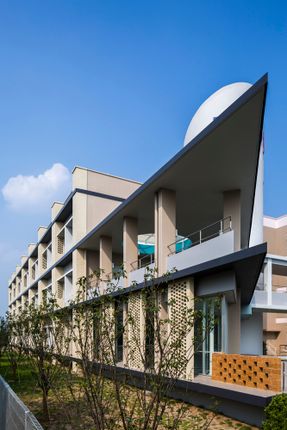

Large canopies provide shade against the hot summer sun and heavy rainfall, both common in Vietnam’s tropical climate. These canopies created a semi-outdoor terrace where students can get together and enjoy their time between classes.

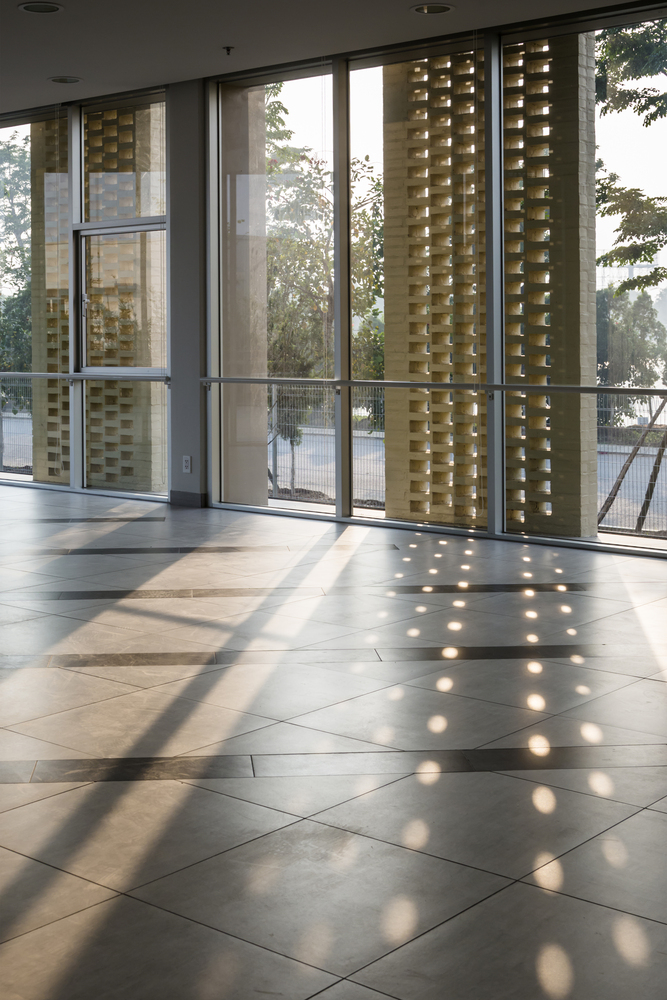

The porous brick screens in front of the glass façade allow an appropriate amount of natural light while maintaining the beautiful view of rich greenery which is surrounding the building. The small openings in the brick screen shatters sunlight, constantly changing throughout the day.

Brick Passive Designed University
© Hiroyuki Oki
Brick Passive Designed University
© Hiroyuki Oki

In addition, mechanical shafts on the façade are not purely functional but also put an accent to a normally mortar with paint finish which is typical in Vietnam.

The shaft conceals piping and downspout and itself doubles as a solar chimney, taking in air from the small openings at the porous brick area and exhaust at the roof.

Brick Passive Designed University
© Hiroyuki Oki
Brick Passive Designed University
© Hiroyuki Oki

Porous Materials and methods have been carefully selected depending on each location (screen, handrail, ventilation etc.) and purpose (view and filtering light and air to appropriate levels).

Brick Passive Designed University
© Hiroyuki Oki
Brick Passive Designed University
© Hiroyuki Oki

Traces of craftsman who made each brick screen by hand are visible on the brick texture. The perforated patterns form a contrast with heaviness of a brick wall. The clearly expressed passive design technologies have created a unified façade and dramatic interior space of unusual refinement.

Although the building features Vietnamese typical materials and low-tech construction methods, our aim is not to reproduce the vernacular but to bring together Vietnamese traditional and intelligent practice creating sustainable architecture suitable for the present.


Brick Passive Designed University

First Floor Plan
Brick Passive Designed University

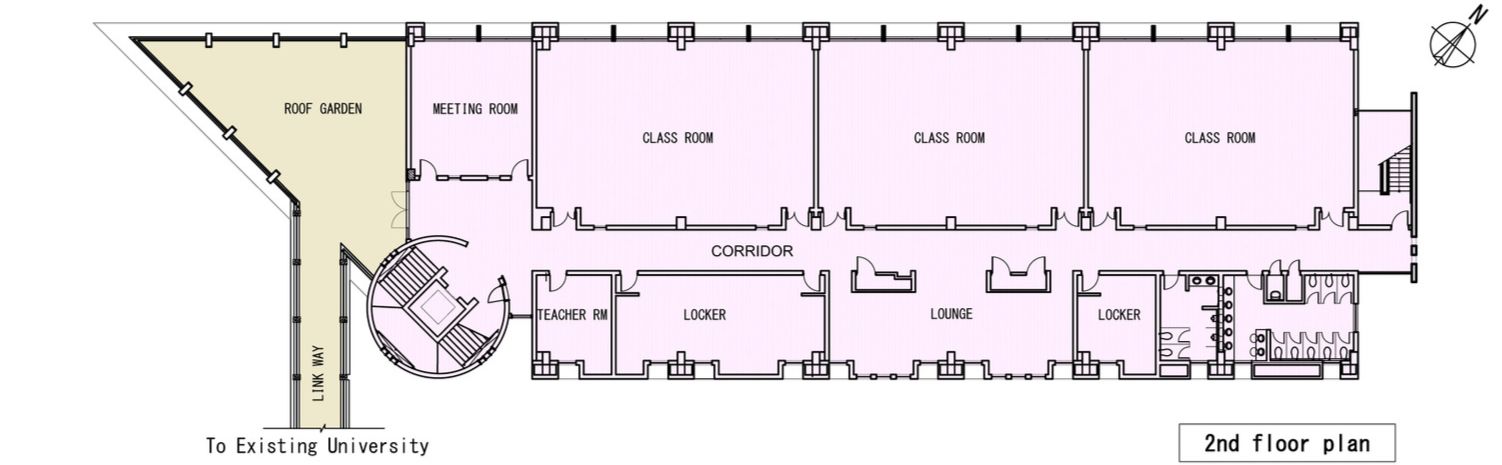

Second Floor Plan
Brick Passive Designed University

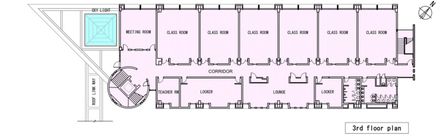

Third Floor Plan


Brick Passive Designed University
Brick Diagram
Brick Passive Designed University
Section
Brick Passive Designed University
Brick Detail
