Charged Voids

Residence 913

Residence 913
© Nakul Jain

RESIDENCE 913

Charged Voids

ARCHITECTS
Charged Voids

3 D VISUALIZER
Haneet Khanna

CLIENT NAME
Mr. Abhayjeet Saini

MANUFACTURERS
BTicino, Daikin, Duravit, Grohe, Osram, ALCOI, ART N GLASS, Gupta plywood, Neeraj, R.K. Marbles, Uni, Urban Ladder

STRUCTURE CONSULTANT
Pankaj Chopra

WATER BODY
Madhhu irritech; Uttam Singh

M S FABRICATOR
Lohar creations; Anil Dhiman

PHOTOGRAPHS
Nakul Jain, Purnesh Dev Nikhanj

AREA
370 m²

YEAR
2016

CATEGORY
Houses

LOCATION
Karnal, India

Text description provided by architect.

BRIEF

The brief was to design a house for a father son duo, who had recently lost the lady of the house.

CONCEPT

The idea was to design a house that brings its occupants in close contact with elements of nature in order to lend a strong spiritual character.

Residence 913
© Nakul Jain
Residence 913
© Nakul Jain

The overall concept was devised as the free plan with interconnecting volumes, that emphasize the sense of nothingness overlooking the courtyard & a blank stone wall painted in light. Spaces like courtyard & verandah were reinterpreted to suit the urban context

PLANNING

The plan was organized around a northern courtyard & water body with the central space i.e., the living room looking into it.

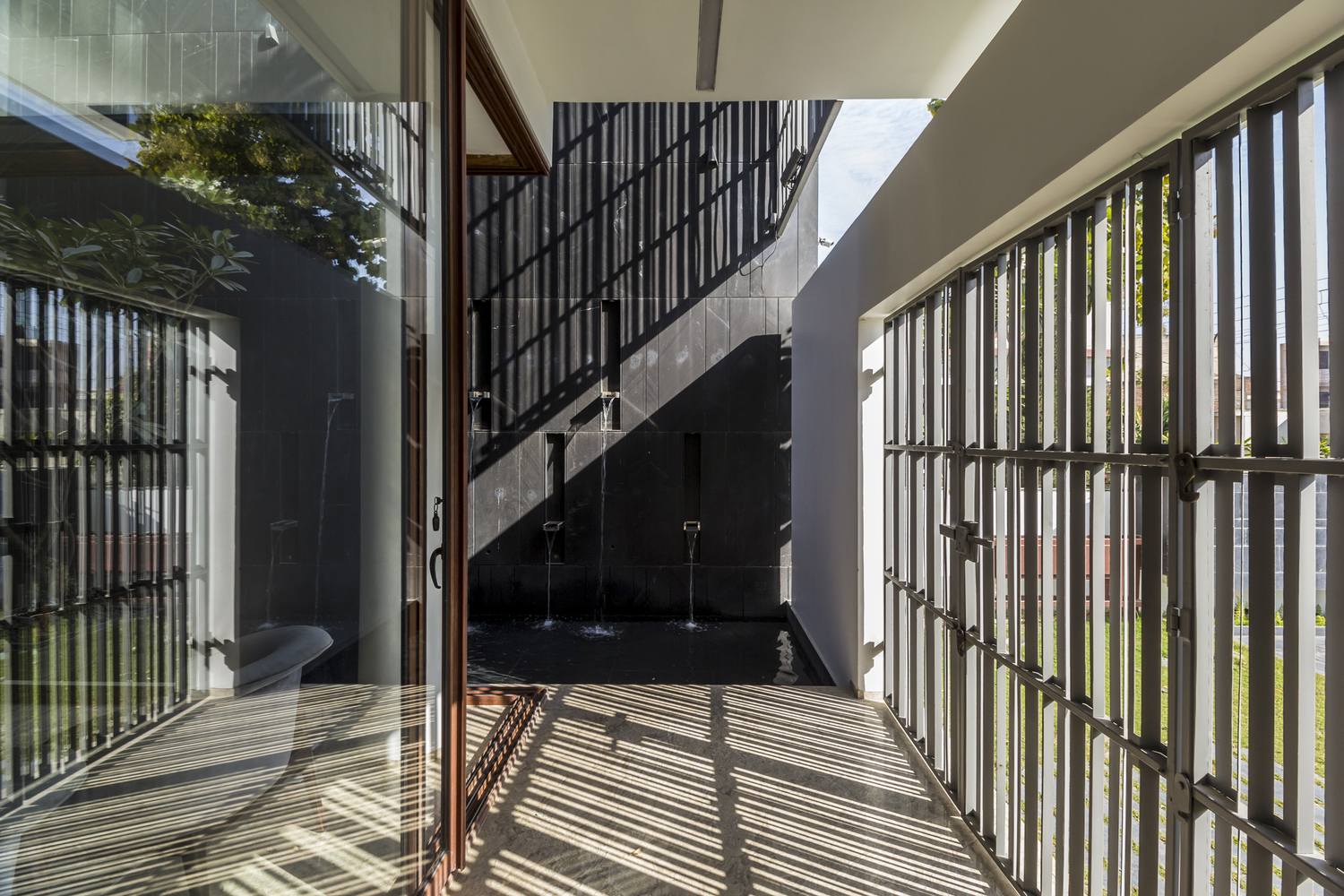

The entrance was conceived through a screened verandah overlooking the water body on one side & living room in the front.

Residence 913
© Nakul Jain
Residence 913
© Nakul Jain

This allowed for a complete absence of window coverings as no direct sunlight penetrated the central space but there was ample natural light throughout the day.

The interconnecting volumes in the section allow the cross axes to be visible as soon as one enters the house.

Residence 913
© Nakul Jain
Residence 913
© Nakul Jain

The project houses a total of three rooms, two master bedrooms for the father & son and a guest room. The father was housed on the lower floor while the son’s room & the guest room are planned on the upper level.

The domestic help & other services are housed on the third level with a separate access from an external service staircase.

Residence 913
© Nakul Jain
Residence 913
© Nakul Jain

The open kitchen with dining area along with a lounge is ideal, since there are only 2 occupants in the house.

Although a separate spice kitchen is provided at the back for the domestic help & other services.

Residence 913
© Nakul Jain
Residence 913
© Nakul Jain

MATERIAL PALLETTE

The overall project was conceived in a monochromatic palette to lend a meditative character to the space.

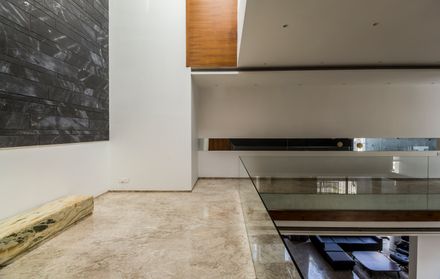

The interior surfaces are simply Stone clad or white painted with patterns of shadows created from external screens being the principal focus

Residence 913
© Purnesh Dev Nikhanj
Residence 913
© Purnesh Dev Nikhanj

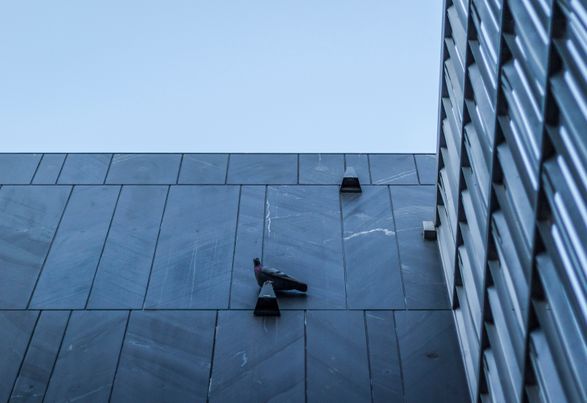

The ocean black stone used in different finishes is a local Stone available in Rajasthan.

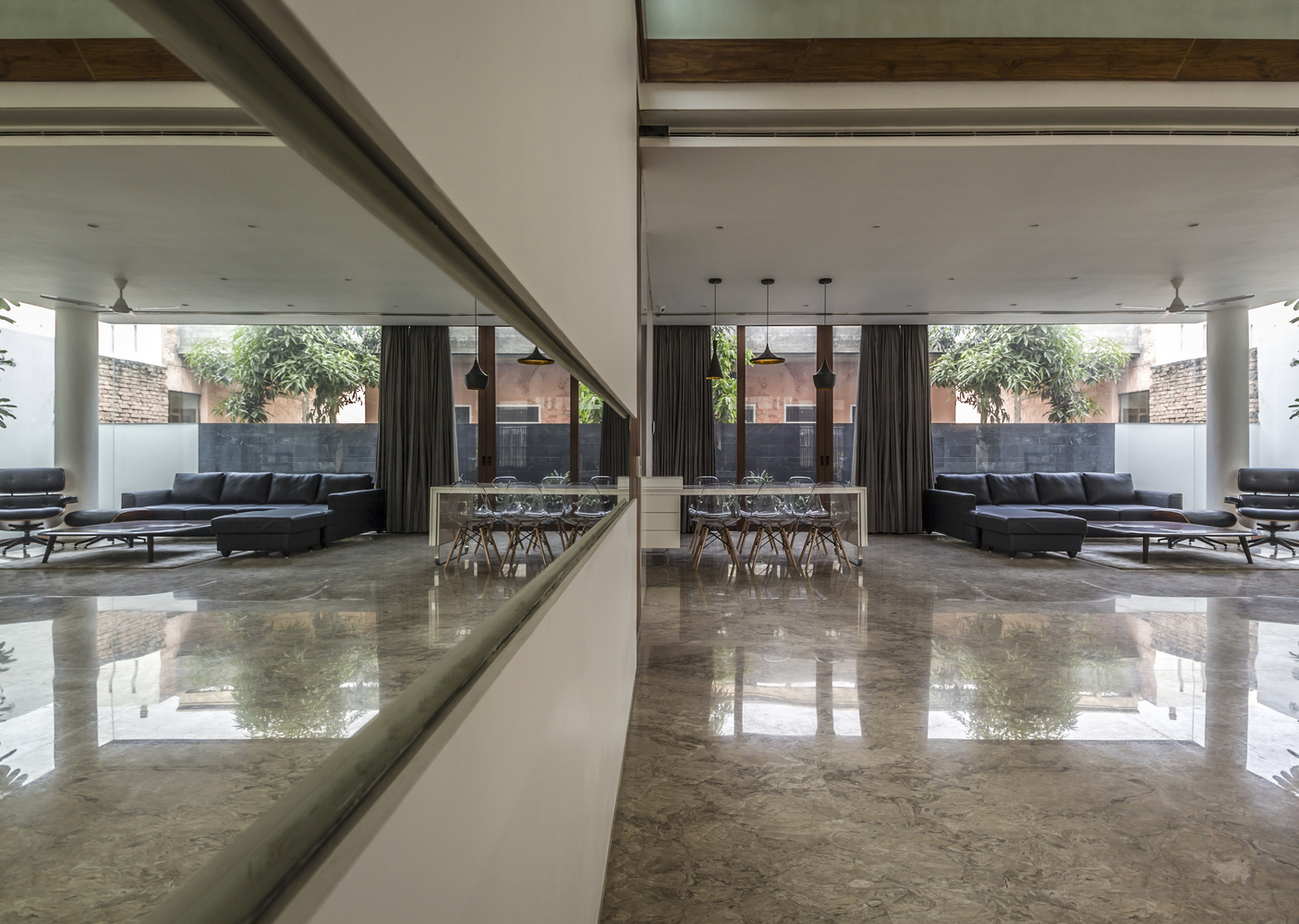

The only other material used is strips of mirror to add to the illusive character of space.

Residence 913
© Purnesh Dev Nikhanj


Residence 913
© Nakul Jain
Residence 913
© Purnesh Dev Nikhanj
Residence 913
© Nakul Jain


Residence 913
Illustration


Residence 913
Section
Residence 913
Section


Residence 913
Ground Floor
Residence 913
First Floor Plan
Residence 913
Jaali Modules


Residence 913
Sketch
Residence 913
Sketch
