The Godfather’s Theatre Of Views

The Godfather’s Theatre Of Views
Courtesy of ROBOT ARCHITECTS

THE GODFATHER'S THEATRE OF VIEWS

Robot Architects

ARCHITECTS
Robot Architects

AREA
290 m²

YEAR
2012

LOCATION
Samara, Russia

CATEGORY
Houses

“Robots do not dream up; they go with the stream.After proceeding to practice, let's move downward .”“ROBOT ARCHITECTS” Vitaly Stadnikov, Oleg Fedorov (Moscow \ Samara)

The Godfather’s Theatre Of Views
Courtesy of ROBOT ARCHITECTS
The Godfather’s Theatre Of Views
Courtesy of ROBOT ARCHITECTS

"If Nietzsche saw Yuri, he would never philosophize. Yuri has a much greater character.He has a spade beard and mustaches, and he loves pickled tomatoes salted in barrels. He is not a superman.

He wants to eat tomatoes lying in the bath and overlooking the “Samara Bend” (“Samarskaya Luka" National Park).”

The Godfather’s Theatre Of Views
Courtesy of ROBOT ARCHITECTS
The Godfather’s Theatre Of Views
Courtesy of ROBOT ARCHITECTS

The Godfather has intentionally bought this plot, which was the furthermost located from the Volga river, with a composite topography.

Only from here, the very top of the place, through green crowns of trees, the Zhiguli hills are well looked, and a mirrored river bed is within a good view.

The ground level difference is 8 m and there is a gully from southward.

The Godfather’s Theatre Of Views
Courtesy of ROBOT ARCHITECTS
The Godfather’s Theatre Of Views
Courtesy of ROBOT ARCHITECTS
The Godfather’s Theatre Of Views
Courtesy of ROBOT ARCHITECTS

Lower beneath the area there is a plain level space with high lofty trees and cottages, which hidden the Volgian open distances.

Is it possible to live so close to the Volga and not see it?A building is maximum extended along the slope.

The main entrance is made from the top point of the relief directly to the floor of guest rooms, which overlooks attractive views of the Volga through solid stained glass windows of the gable facade and a promenade terrace.

The Godfather’s Theatre Of Views
Courtesy of ROBOT ARCHITECTS
The Godfather’s Theatre Of Views
Courtesy of ROBOT ARCHITECTS
The Godfather’s Theatre Of Views
Courtesy of ROBOT ARCHITECTS

Large utility rooms have a three-way orientation. Both a garden and riverward slopes are well viewed from here.

A ground apartment floor, where there are bedrooms and children's rooms, has an additional entrance due to a level difference.

The Godfather’s Theatre Of Views
Courtesy of ROBOT ARCHITECTS
The Godfather’s Theatre Of Views
Courtesy of ROBOT ARCHITECTS

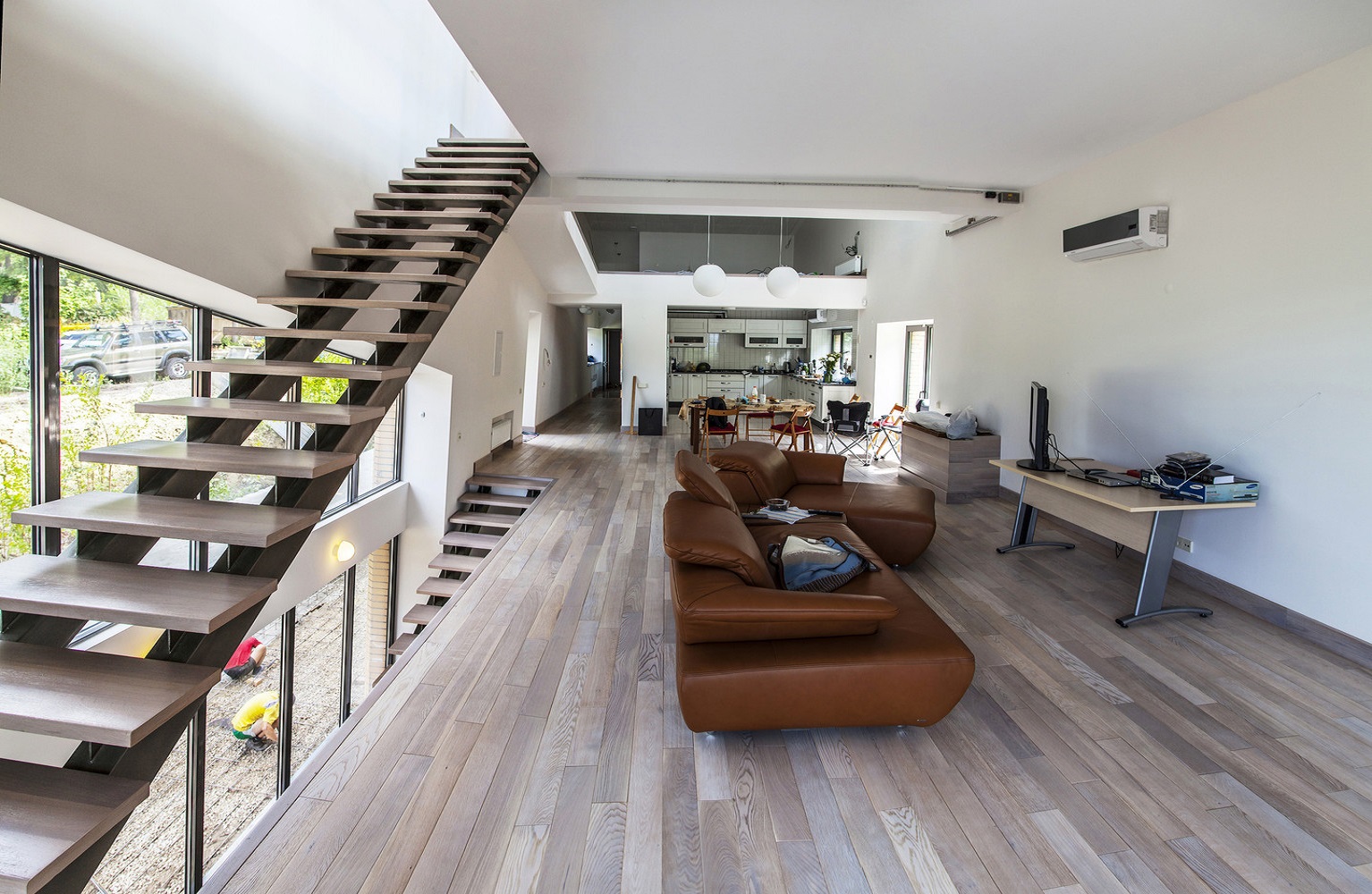

All living rooms have a southern exposure and are exposed towards lovely views.

On the top floor there is a study, a green house and a host library with the most amazing views to the beautiful surroundings.

The Godfather’s Theatre Of Views
Courtesy of ROBOT ARCHITECTS
The Godfather’s Theatre Of Views
Courtesy of ROBOT ARCHITECTS

A roof area is fully accessible and greened. The building is placed along the gully on the south boundary line of the plot, thus leaving valuable mature trees undisturbed.

The Godfather’s Theatre Of Views
Courtesy of ROBOT ARCHITECTS


The Godfather’s Theatre Of Views
Courtesy of ROBOT ARCHITECTS
The Godfather’s Theatre Of Views
Courtesy of ROBOT ARCHITECTS


The Godfather’s Theatre Of Views
Courtesy of ROBOT ARCHITECTS
The Godfather’s Theatre Of Views
Courtesy of ROBOT ARCHITECTS
The Godfather’s Theatre Of Views
Courtesy of ROBOT ARCHITECTS
The Godfather’s Theatre Of Views
Courtesy of ROBOT ARCHITECTS
The Godfather’s Theatre Of Views
Courtesy of ROBOT ARCHITECTS
The Godfather’s Theatre Of Views
Courtesy of ROBOT ARCHITECTS


The Godfather’s Theatre Of Views
North Elevation
The Godfather’s Theatre Of Views

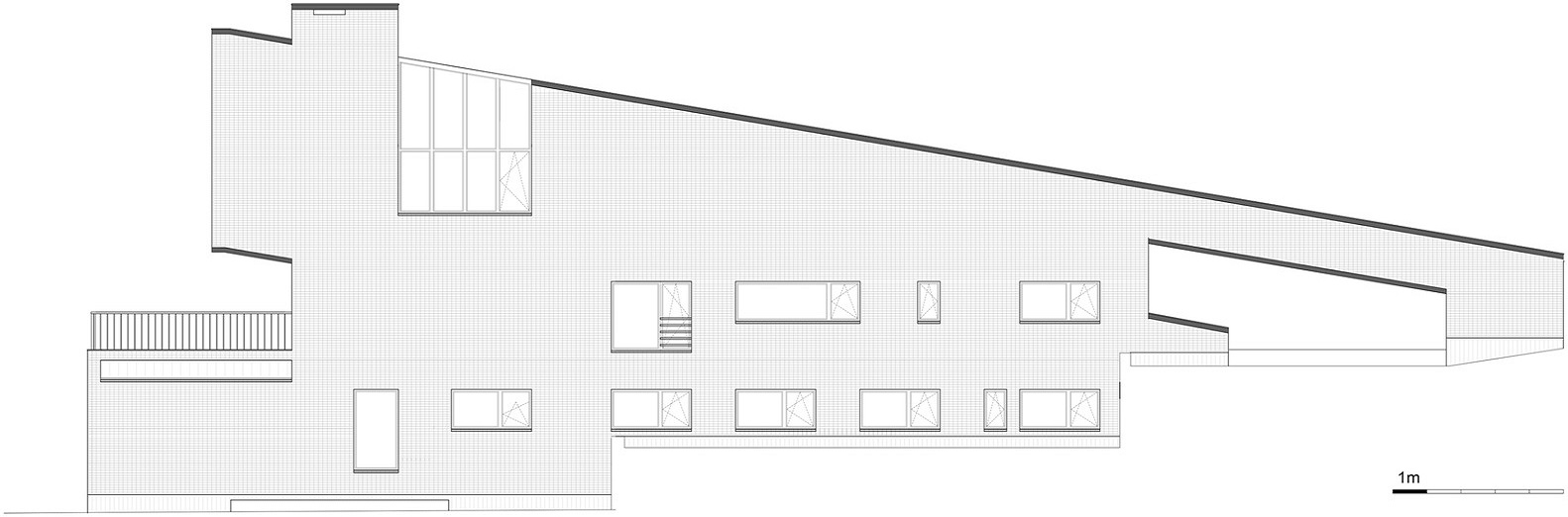

South Elevation
The Godfather’s Theatre Of Views

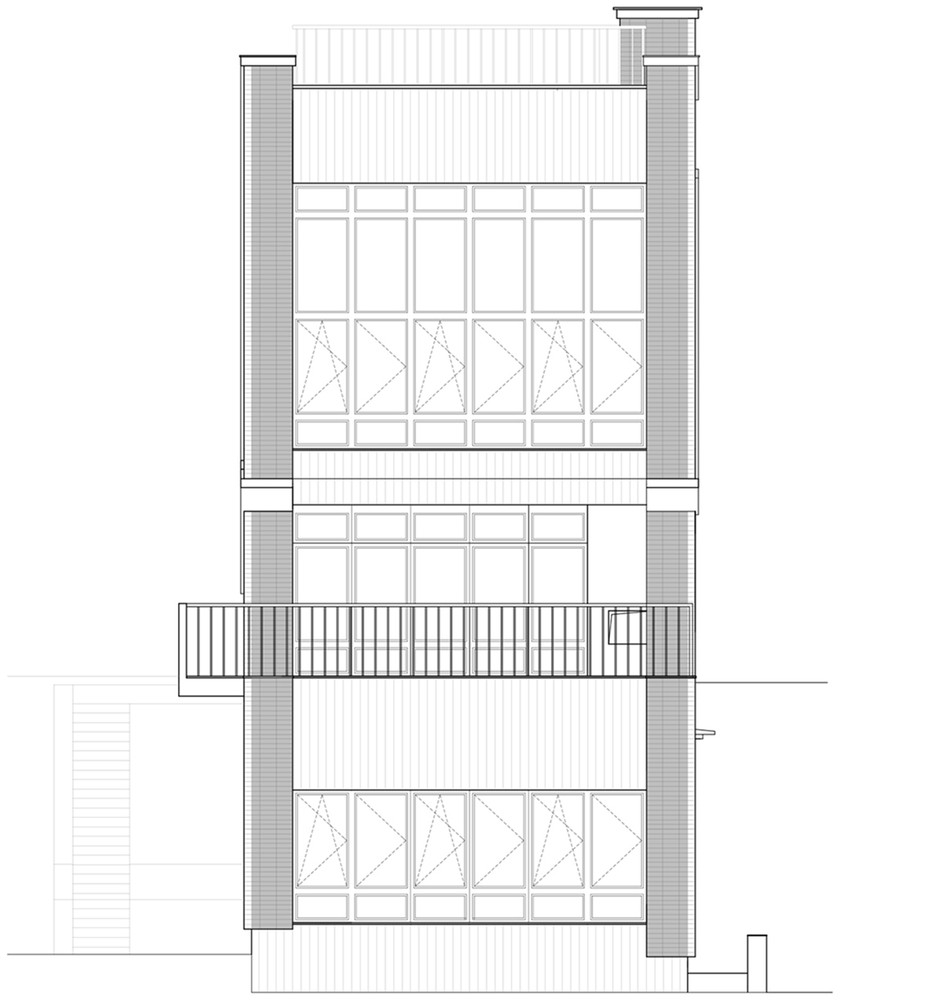

Elevation 3

The Godfather’s Theatre Of Views
Elevation 4


The Godfather’s Theatre Of Views
Section 1
The Godfather’s Theatre Of Views
Section 2
The Godfather’s Theatre Of Views
Section 3
The Godfather’s Theatre Of Views
Site Plan

The Godfather’s Theatre Of Views
Ground Floor Plan
The Godfather’s Theatre Of Views
First Floor Plan
The Godfather’s Theatre Of Views
Second Floor Plan
The Godfather’s Theatre Of Views
Lower Floor Plan
