MIRANTE HOUSE

FGMF Arquitetos

ARCHITECTS
FGMF Arquitetos

AREA
815 m²

LOCATION
Aldeia Da Serra, Brazil

CATEGORY
Houses

YEAR
2016

PHOTOGRAPHS
Rafaela Netto, Renato Caiuby

MANUFACTURER
AFA tintas e texturas, APS componentes Elétricos LTDA, Ardece, Arquitetura da Luz /, EXBRA revestimentos, Fochella, Guinter Parschalk – Studio IX, Ibratin, Inovar, Skylight Estruturas, Tekal, Zanchet

COORDINATOR
Ana Paula Barbosa, Gabriel Mota, Luciana Bacin, Marília Caetano, Sonia Gouveia

LIGHTING DESIGN
Studio Ix

ELECTRICAL AND PLUMBING INSTALLATION
Gavazzi Engenharia

LANDSCAPE DESIGNER
Juliana Freitas Paisagismo

INTERNS
Cláudia Bicudo, Fernanda Silva, Henrique Abduch , Julian Seifert, Luiz Falavigna,
Mariana Schmidt , Nara Diniz, Patricia Kupper, Rodrigo de Moura, Rodrigo Oliveira, Yara Bello

COLLABORATORS
Carmem Procópio, Juliana Nohara, Ligia Meirelles, Thiago Pimentel

INRTERIOR DESIGNER
Andrezza Alencar e FGMF

FOUNDATION AND STRUCTURAL
Stec do Brasil Engenharia ltda

CONSTRUCTOR
Steel Construções e Empreendimentos

Mirante House
© FGMF Arquitetos
Mirante House
© FGMF Arquitetos

Text description provided by architect.

Since first studies, the site determined the residence’s conception logic. Some site characteristics are especially remarkable: wide lot with slightly variable width and sharp slope.

Mirante House
© Rafaela Netto
Mirante House
© Rafaela Netto

In its north end, there’s a beautiful view of the artificial lake. The neighbors’ houses provoke shade and a feeling of lack of privacy on both sides of the site’s highest area.

There was a desire that the social and interaction spaces were lake-oriented (north-oriented), at the same time that there was the great need to avoid the pressure from the adjacent buildings.

Mirante House
© Rafaela Netto
Mirante House
© Rafaela Netto

From these driver factors, we allocated the residence in the middle of the site, in a privileged position regarding the existent houses and ensuring to the social spaces the interesting view.

Mirante House
© Rafaela Netto
Mirante House
© Renato Caiuby

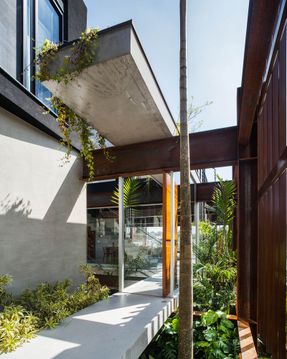

Since the residence would have a long length, we chose to create semi-internal patios, responsible for ventilating and illuminating the house, in addition to providing a larger relation with nature, as desired by the owners.

With these assumptions, we designed a simple metallic structure that overcomes variable spans of approximately 11 meters. This structure would be the space’s organizing core and would be allocated exactly on the permitted site limit, in addition to being a remarkable item of the building aesthetics.

Mirante House
© Renato Caiuby
Mirante House
© Renato Caiuby
Mirante House
© Renato Caiuby
Mirante House
© Rafaela Netto
Mirante House
© Rafaela Netto

The residence would arise indeed through the trimmed slabs, supported by this primary structure. And most of the fences would be in tempered glass, resting in the slabs borders, maximizing the structure’s importance.

Mirante House
© Rafaela Netto

The building’s spatiality, derived from this slab trimming conception, almost organic, provided natural illumination and a close relation to nature.

Mirante House
© Rafaela Netto

The upper level floor, intimate, is designed as an irregular block supported by this structure and it holds more fences than the other floors.

Mirante House
© FGMF Arquitetos
Mirante House
© Rafaela Netto

The residual spaces upon the social block ceiling become uncovered garden terraces to the superior floor.

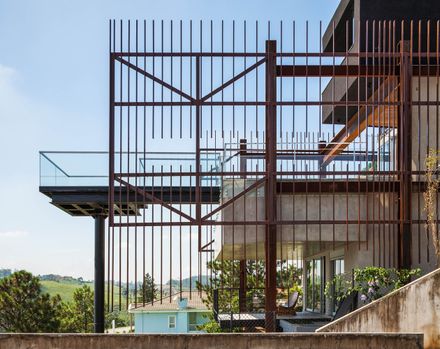

On structure’s both sides we implemented vertical brises with variable spacing (calculated based on the indoor spaces, views and neighbors), supported by the primary structure.

Mirante House
© Rafaela Netto
Mirante House
© FGMF Arquitetos
Mirante House
© FGMF Arquitetos
Mirante House
© FGMF Arquitetos

These brises project themselves in both edges and function as a filter between the indoors and the outdoors.

The project aims to broaden the office’s experiments by creating a balance between the perception of the internal and external spaces, through a game between the structure limit, the fences positioning, building gaps, external brises and vegetation.

Mirante House
© FGMF Arquitetos
Mirante House
© FGMF Arquitetos

The result is a highlighting the side spaces (on the permitted site limits) – usually relegated – to a position of the protagonist of the building’s daily life.

Mirante House
© FGMF Arquitetos
Mirante House
© FGMF Arquitetos
Mirante House
© Rafaela Netto


Mirante House
Diagram


Mirante House
Section A
Mirante House
Section B


Mirante House
Elevation 1
Mirante House
Elevation 2
Mirante House
Elevation 3


Mirante House
Upper Floor Plan
Mirante House
Ground Floor Plan
Mirante House
Lower Floor Plan
