Concave Roof House No.2

Concave Roof House No.2
© Hiroyuki Hirai

CONCAVE ROOF HOUSE NO.2

Jun Yashiki & Associates

CATEGORY
Houses

LOCATION
Japan

AREA
244

YEAR
2011

PHOTOGRAPHS
Hiroyuki Hirai

Text description provided by architect.

This is a two-family residence in a residential area of low houses on a plain in Tokyo, Japan. The problems to be solved here are 1) how to protect privacy and to supply natural light, 2) how to provide flexibility for varying lifestyle, and 3) how to command a fine view in such a crowded area.

We proposed a "Concave Roof House". A series of Concave Roof Houses is a kind of attempt to make a courtyard form even in a small private house.

Concave Roof House No.2
© Hiroyuki Hirai
Concave Roof House No.2
© Hiroyuki Hirai

It has much possibilities for designing a todays private house in a temperate region. The external walls of the house have a small number of small ventilation windows to protect privacy in a residential area in Tokyo. The top of the 10m x 10m pyramidal roof is concave to make a roof terrace. The finishing materials of both the roof and exterior walls are the same black galvanised steel plates.

The roof is supported by four wooden truss wall girders framed in swastika form in order to make a 10m x 10m space with no column below. Interior wooden window frames are painted in different colours at the projected corner.

Concave Roof House No.2
© Hiroyuki Hirai
Concave Roof House No.2
© Hiroyuki Hirai
Concave Roof House No.2
© Hiroyuki Hirai

Both constantly varying natural light in the daytime and moon light in the night come through high windows that are made between the roof and the roof terrace floor.

Concave Roof House No.2
© Hiroyuki Hirai
Concave Roof House No.2
© Hiroyuki Hirai

The space with no column provides flexibility for varying lifestyle, and is articulated to smaller spaces by the four wall girders above framed in swastika form. The roof terrace commands a fine view around beyond the surrounding roofs.


Concave Roof House No.2
Floor Plan
Concave Roof House No.2
Section


Concave Roof House No.2

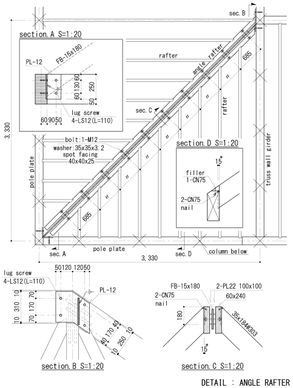

Detail
Concave Roof House No.2

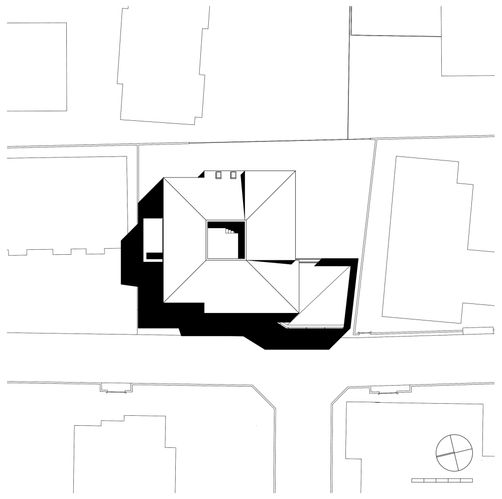

site plan
