Mirag Architecture and Management, SLP

Sentmenat

Sentmenat

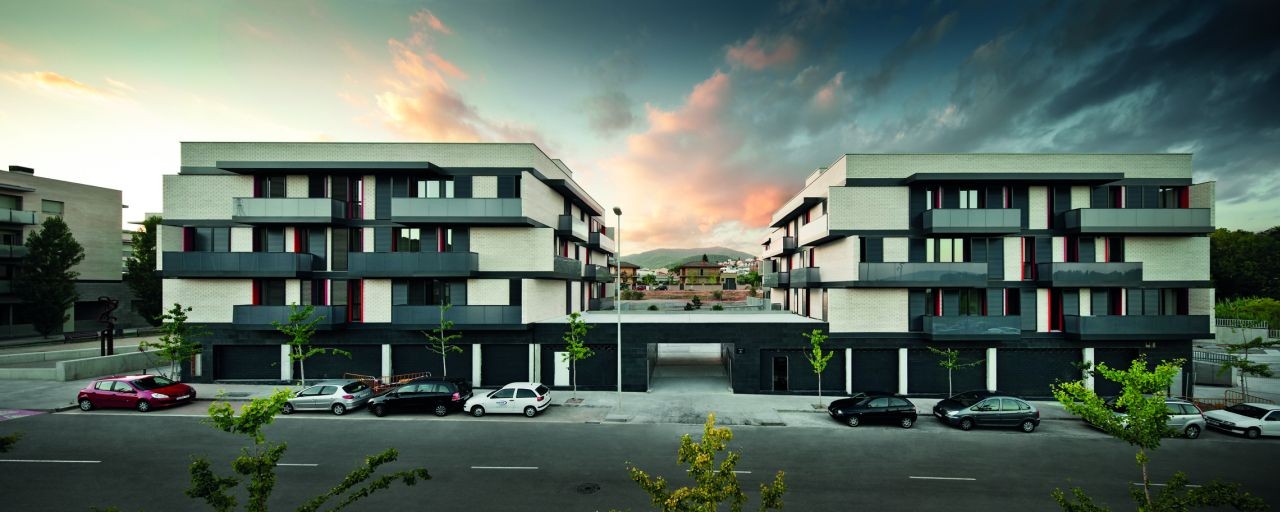

© Jordi Surroca

SENTMENAT

Mirag

ARCHITECTS
Mirag

PHOTOGRAPHS
Jordi Surroca

AREA
18300 m²

YEAR
2011

LOCATION
Sentmenat, Spain

CATEGORY
Social Housing

Text description provided by architect.

We received the proposal to design a 91-social-housing project distributed in 4 different blocks within a pre-defined urban planning called Can Vilar in the village of Sentmenat, Barcelona.

The symmetric distribution of the blocks is unconnected with the rural and the industrial surroundings.

Sentmenat
© Jordi Surroca
Sentmenat
© Jordi Surroca
Sentmenat
© Jordi Surroca

The volumes of the four buildings could not be modified. As a consequence, the aim of the project was to give quality to the whole complex through a dynamic facade and also to solve the needs that a social housing project demands.

We thus focused on a flexible the facade in order to avoid the rigidity of the urban planning. To get to this point, we resorted to the idea of four buildings as disintegrated volumes, which are formed by surfaces. We also intended to grant sound building quality to inner-spaces. As regards the program, both units of block type 01 include 5 apartments in each floor and 2 commercial spaces and the entrance to the parking at the ground floor.

Sentmenat
© Jordi Surroca
Sentmenat
© Jordi Surroca

The two blocks type 02 have 4 apartments in each floor, including 6 at the ground floor as well as the entrance to the parking floors. The usable space of the apartments varies between 55 and 77m2.

The central space, open and accessible to everyone, is understood as a common patio that is protected from the exterior thanks to the ground floors of the complex, which are connected around this collective area.

Sentmenat
© Jordi Surroca


Sentmenat

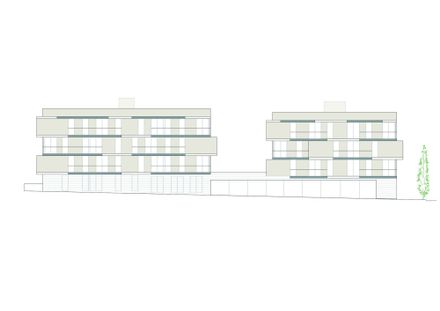

Elevation
Sentmenat
Elevation
Sentmenat
Section


Sentmenat

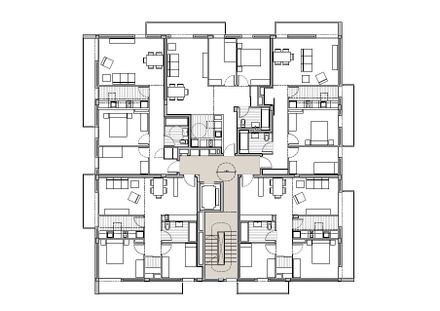

Plan
Sentmenat
Plan
Sentmenat
Plan
Sentmenat
Plan
