Central Michigan University Events Center

CENTRAL MICHIGAN UNIVERSITY EVENTS CENTER

SmithGroupJJR

Central Michigan University Events Center
© SmithGroupJJR

ARCHITECTS
SmithGroupJJR

PHOTOGRAPHS
SmithGroupJJR

AREA
6741 m²

YEAR
2011

LOCATION
United States

CATEGORY
Other Facilities

Central Michigan University Events Center
© SmithGroupJJR

Text description provided by architect.

Following the successful completion of a feasibility study, performed by SmithGroup and Don Eyberg Associates, SmithGroup is providing architectural and engineering services for the addition / renovation of the existing Rose Arena and Rose/Ryan Hall.

The project will include Installation of all new seating within the arena; the addition of a new entrance, north lobby and the expansion of the south lobby; the addition of a new practice facility; the construction of a premium seating/club room area; infrastructure improvements to the arena including the installation of air conditioning and new plumbing for additional bathrooms.

Existing arena HVAC systems were upgraded in place to add air-conditioning cost-effectively.

Central Michigan University Events Center
© SmithGroupJJR
Central Michigan University Events Center
© SmithGroupJJR

Four main supply fans in compact mechanical rooms were retained by installing larger but thinner filters and heating coils.

That saved enough floor space and lowered air resistance enough to insert chilled-water cooling coils—without changing fans, motor horsepower, supply ductwork or walls

Central Michigan University Events Center
© SmithGroupJJR


Central Michigan University Events Center
© SmithGroupJJR
Central Michigan University Events Center
© SmithGroupJJR
Central Michigan University Events Center
© SmithGroupJJR


Central Michigan University Events Center

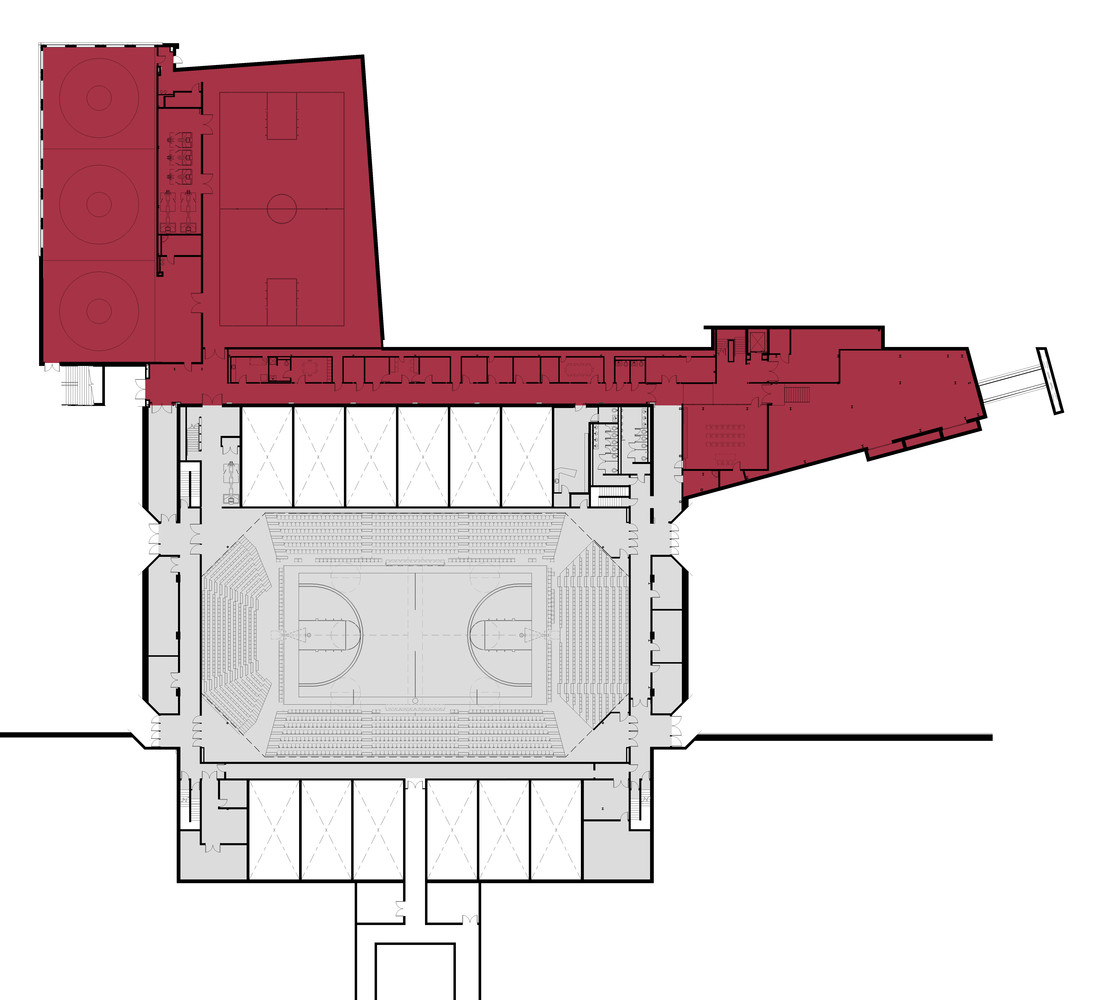

Plan
Central Michigan University Events Center
Plan


Central Michigan University Events Center
Plan
Central Michigan University Events Center
Site Plan


Central Michigan University Events Center
Section
Central Michigan University Events Center
Section
