NURSERY IN THE JARDINES DE MALAGA IN BARCELONA

Batlle i Roig Arquitectura

CONSTRUCTION COMPANY
CGN / construc-green ingeniería y servicios, sl

AREA
745 m²

YEAR
2010

LOCATION
Barcelona, Spain

BUDGET
1667000 €

DEVELOPER
Consorci d’Educació de Barcelona.

CATEGORY
Educational Architecture, Kindergarten

Text description provided by architect.

The redesign of the Malaga gardens, located in the block interior bounded by Nicaragua, Berlin, Numancia and Avenida Josep Tarradelas streets.

Nursery In The Jardines De Malaga In Barcelona
Courtesy of Batlle i Roig Arquitectes
Nursery In The Jardines De Malaga In Barcelona
Courtesy of Batlle i Roig Arquitectes

In Barcelona, promoted the allocation of a small site for the construction of an education facility: a nursery. The rectangular shaped site is attached to a dividing wall one of its long sides closing the block interior, and faces the gardens on the other.

The small area of the site prevented the program to be developed in a single story, as would have been desirable.

Nursery In The Jardines De Malaga In Barcelona
Courtesy of Batlle i Roig Arquitectes
Nursery In The Jardines De Malaga In Barcelona
Courtesy of Batlle i Roig Arquitectes
Nursery In The Jardines De Malaga In Barcelona
Courtesy of Batlle i Roig Arquitectes
Nursery In The Jardines De Malaga In Barcelona
Courtesy of Batlle i Roig Arquitectes

It was decided to organize it in two floors, which allowed all the classrooms to face south.

The need for playgrounds and porches on both levels was solved with a structural offset in section.

Nursery In The Jardines De Malaga In Barcelona
Courtesy of Batlle i Roig Arquitectes
Nursery In The Jardines De Malaga In Barcelona
Courtesy of Batlle i Roig Arquitectes
Nursery In The Jardines De Malaga In Barcelona
Courtesy of Batlle i Roig Arquitectes
Nursery In The Jardines De Malaga In Barcelona
Courtesy of Batlle i Roig Arquitectes

The classroom access is done, in both levels, trough a wide corridor illuminated by a patio attached to the neighbor division wall.

The entrance, located at one end of the volume, was protected by another offset of the superior volume that created a cantilever over the access.

Nursery In The Jardines De Malaga In Barcelona
Courtesy of Batlle i Roig Arquitectes
Nursery In The Jardines De Malaga In Barcelona
Courtesy of Batlle i Roig Arquitectes

The play of volumes and geometries imposed to the building by the small area of the site was nuanced by some moderation on the election of materials.

Choosing concrete for the structural elements for the less sunny side facades, and metal, both opaque and perforated, on the sunniest ones.

Nursery In The Jardines De Malaga In Barcelona
Courtesy of Batlle i Roig Arquitectes
Nursery In The Jardines De Malaga In Barcelona
Courtesy of Batlle i Roig Arquitectes

In the interior, this monolithic perception of the building was modified introducing materials with a better tactile quality, such as wood or rubber and extending also the chromatic palette.

The lush vegetation of the garden in which the nursery is located, and the future vegetation of its patios, will soon shelter this small building, confusing visually the interior and exterior, but welcoming and protecting its little inhabitants.

Nursery In The Jardines De Malaga In Barcelona
Courtesy of Batlle i Roig Arquitectes
Nursery In The Jardines De Malaga In Barcelona
Courtesy of Batlle i Roig Arquitectes
Nursery In The Jardines De Malaga In Barcelona
Courtesy of Batlle i Roig Arquitectes
Nursery In The Jardines De Malaga In Barcelona
Courtesy of Batlle i Roig Arquitectes
Nursery In The Jardines De Malaga In Barcelona
Courtesy of Batlle i Roig Arquitectes


Nursery In The Jardines De Malaga In Barcelona
Garden Facade
Nursery In The Jardines De Malaga In Barcelona
Interior Facade


Nursery In The Jardines De Malaga In Barcelona

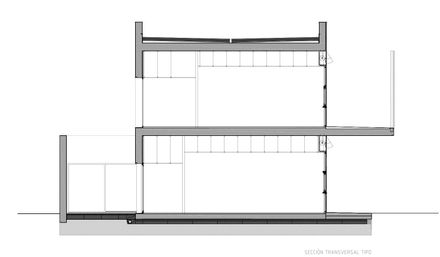

Section
Nursery In The Jardines De Malaga In Barcelona
Section


Nursery In The Jardines De Malaga In Barcelona
First Floor Plan
Nursery In The Jardines De Malaga In Barcelona
Second Floor Plan
Nursery In The Jardines De Malaga In Barcelona
Site Plan
Nursery In The Jardines De Malaga In Barcelona
Masterplan


Nursery In The Jardines De Malaga In Barcelona
Detail

Nursery In The Jardines De Malaga In Barcelona
Detail
