IBERE CAMARGO FOUNDATION: STANDARDS AND VARIATIONS

Alvaro Siza

ARCHITECT
Alvaro Siza

PHOTOGRAPHS
Fernando Guerra | FG+SG

AREA
1350.0 m²

YEAR
2003

LOCATION
Porto Alegre, Brazil

CATEGORY
Foundation

Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG
Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG

It could have been a rectangular prism whose length measures forty-one meters and a half, whose width measures thirty-three meters, and whose height measures twenty-five meters.

Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG
Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG

It could have been, if the projection had ended in the trace of a pure rule. It could have been almost the same.

Three elevated plans, each formed by three rectangular exhibitions rooms, placed at two consecutive faces and connected by ramps that run on the two other faces.

Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG
Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG

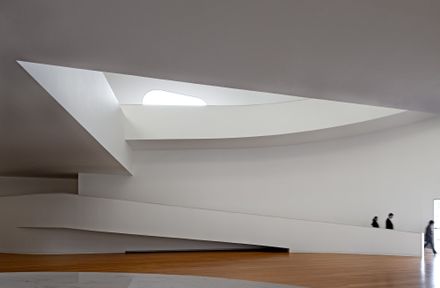

Then, a four-story-high atrium rises between circulations and rooms, creating a diagonal symmetry inside the building. But the building is not just a rule. It is mainly the materialization of a set of variations.

The ramps of the prime rule, with an extension of forty-nine meters and fifty-eight centimeters divided into two perpendicular segments on each level.

Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG
Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG

Would need either a slope of eleven and a tenth percent or an increase of thirteen meters and thirty-nine centimeters in its extension.

With a slope of eight point seventy-three percent in order to achieve the five meters and a half difference between floors.

Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG
Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG

So the obvious choice, which implies a first set of spatial-formal variations on the building, is for the increase in the extent of the ramp.

The first of a set of variations that will determine the visual identity of the building.

Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG
Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG

The order of the corner of the exhibition rooms is maintained. The order of the corner of the ramps is metamorphosed.

The original perimeter still remains materialized at the two other corners, determined by the opposite diagonal of the rectangle, which receives the two staircases of the building.

Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG
Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG

By maintaining the original perimeter of the building, the original position of the ramps and the original start and end points of the slopes.

The only spatial-formal possibility for the ramps to achieve their needed extent is the irruption of outdoor and/or indoor ledges.

Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG
Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG
Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG
Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG

The building materializes both possibilities. The original ramps are duplicated into new bifurcated ones.

An external rectilinear one and an internal curvilinear one.

Each flight of the ramps is formed by three segments: three linear segments in the first case and three arcs in the second.

Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG
Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG
Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG

Each flight reaches the same height, the half of the difference between consecutive floors, two meters and seventy-five centimeters.

And therefore has the same total length as the sum of the horizontal components of its slopes.

Between the three curvilinear ramps and the three rectilinear ramps a brand new atrium rises: an outside and open one, whose ceiling is the very sky.

Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG
Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG
Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG

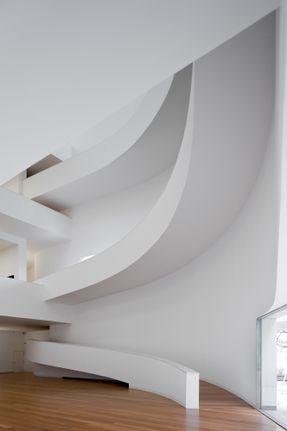

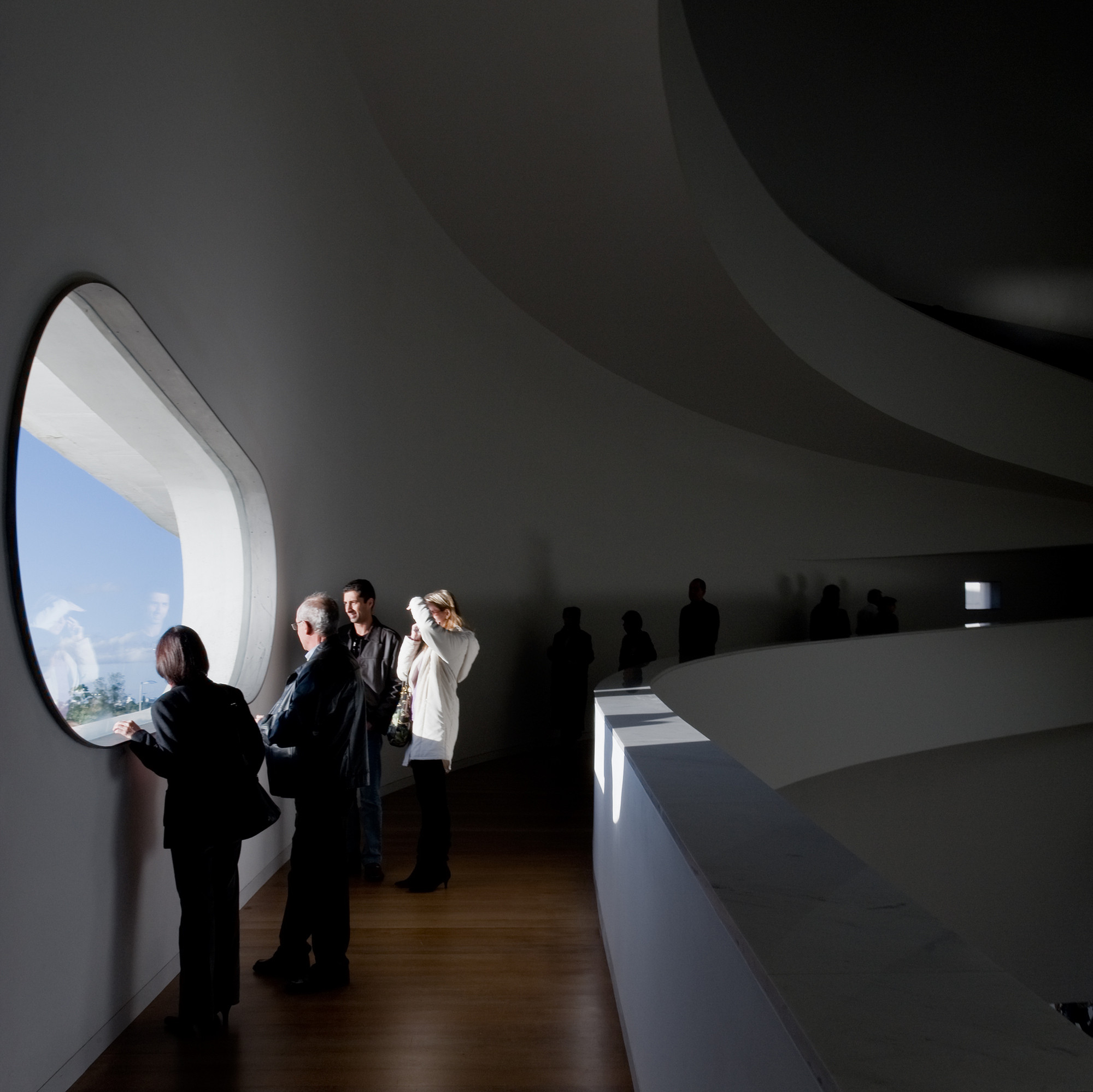

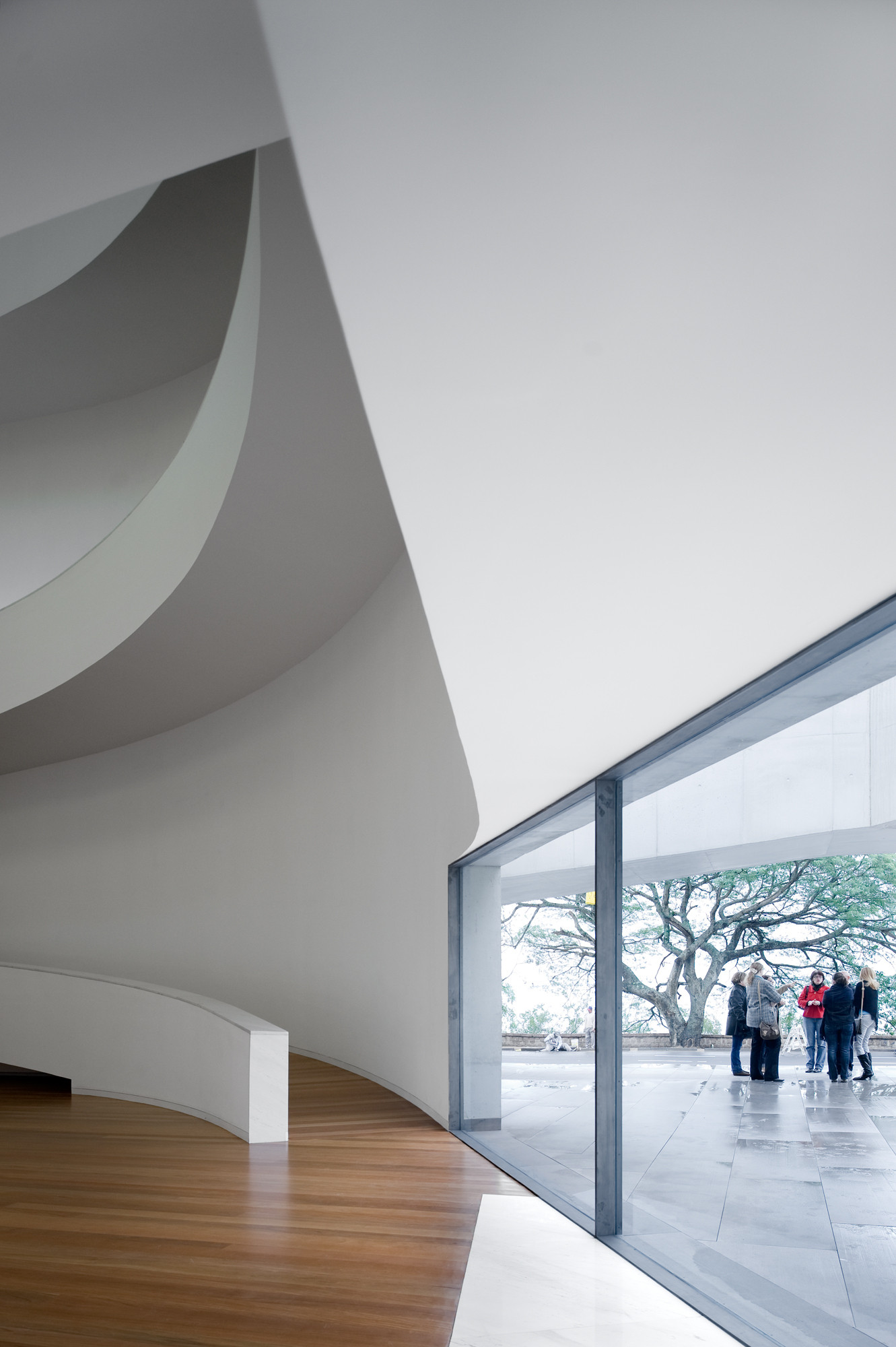

Connecting the floors is always a flight comprised of a curvilinear ramp and another comprised of a rectilinear one: the ascending or descending path intercalates both kinds of ramp.

But visually each type is combined as creating a false continuity: inside.

Only the ascension of the three flights of curvilinear ramp is seen; outside, mainly the three flights of rectilinear ramp.

Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG
Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG

The spatial reality of the building integrates; the formal reality isolates.

The new perimeter of the building is now materialized by a curve formed by a central convex arc and two side concave arcs connected by tangent lines.

Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG
Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG

It emphasizes the trace of the curvilinear ramp, but slightly modifies it, in such a way that these ramps subtly appear in the façade.

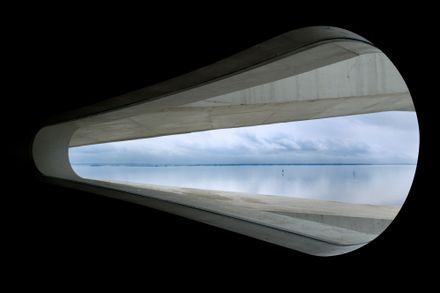

In front of and detached from this new curved surface, the visually continuous three flights of rectilinear ramp surround the open atrium.

Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG
Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG

The curvilinear ramps separate inside and outside, they are the only elements that break the mainly orthogonal character of the building.

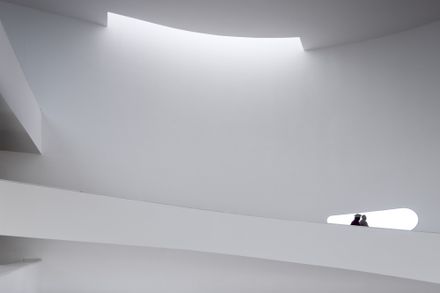

From a two-segment ramp surrounding a closed atrium, two three-segment ramps surrounding two atriums, a closed one and an opened one. That is the variation.

Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG
Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG

From a prism, a rock. Thus is the materialization of the building.


Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG
Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG
Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG
Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG
Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG
Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG
Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG
Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG
Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG


Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG
Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG
Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG
Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG
Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG
Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG
Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG
Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG
Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG
Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG
Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG
Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG


Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG
Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG
Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG
Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG
Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG
Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG


Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG
Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG
Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG
Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG


Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG
Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG
Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG
Iberê Camargo Foundation: Standards And Variations
© Fernando Guerra | FG+SG


Iberê Camargo Foundation: Standards And Variations

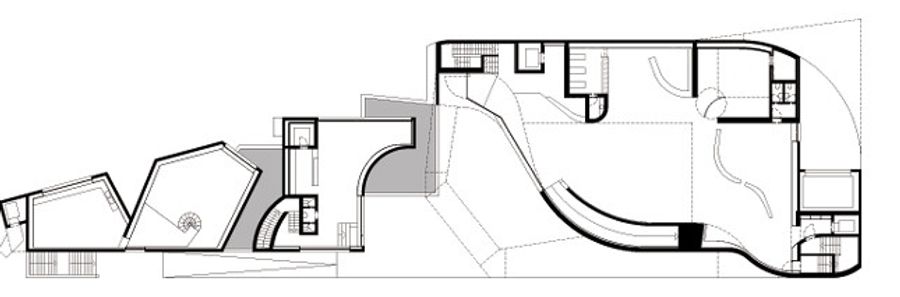

First Floor Plan


Iberê Camargo Foundation: Standards And Variations
Section
