AIRBUS SPAIN CENTRAL OFFICES

Pablo Notari Oviedo + CONURMA Ingenieros Consultores + SUMAR urbanismo y arquitectura

STRUCTURE ENGINEER
Infotaller De Estructuras S.l.

CHIEF ARCHITECT
Steffen Ringler

DRAFTSMAN
José Luis Paredes Conde

PROJECT TEAM
Begoña Vives Vinent, Judith Krassnig, Amelia Mateos Yagüe, Augusto Signorio Macro, José Luis Paredes Conde, Manuel Sevilla Seoane, Yolanda García Portillo, David Torremocha Mesto, Infotaller De Estructuras S.l.

SYSTEMS ENGINEER
David Torremocha Mesto

MANUFACTURERS
BESAM, Bega, Schüco, Thyssenkrupp, ESCOFET

WORKS SUPERVISION TEAM
Pablo Notari Oviedo, Steffen Ringler, David Torremocha Mesto, Manuel Sevilla Seoane

BILL OF QUANTITIES
Manuel Sevilla Seoane, Yolanda García Portillo

PHOTOGRAPHS
Eduardo Sanchez

AREA
352.0 m²

YEAR
2004

LOCATION
Getafe, Spain

CATEGORY
Institutional Buildings

Text description provided by architect.

This project was born as result of the restricted competition launched in April, 2002 by AIRBUS Spain S.L. The works began in February 2003, ending in July of 2004.The building is located at the entrance of the Airbus factory in Getafe´s municipality, forming its access door.

AIRBUS Spain Central Offices
© Eduardo Sanchez
AIRBUS Spain Central Offices
© Eduardo Sanchez

The spatial solution of three blocks supported on a stone podium linked to the topography, is the fundamental element of its expression, creating a central courtyard where the main entrance is located.

This access space is designed as a large Atrium surrounded by the glazed wings of the offices, and covered by a large canopy.

AIRBUS Spain Central Offices
© Eduardo Sanchez
AIRBUS Spain Central Offices
© Eduardo Sanchez

The wings are connected with the rear longitudinal block by two vertical circulation cores, where also the spaces of relationship and service of each plant are located. In the rear block the closed offices are located, and the open offices are on the glazed wings.

In the access floor two patios as guiding spaces of the building are arranged, dynamic spaces both by the horizontal circulations created around them, as by the different intensities and reflections of natural light that they produce.

AIRBUS Spain Central Offices
© Eduardo Sanchez
AIRBUS Spain Central Offices
© Eduardo Sanchez

This Project, highly energy efficient and sustainable, expresses the commitment of AIRBUS with the environment.

The North longitudinal block has a metal panels façade, similar to the industrial buildings of the factory.

AIRBUS Spain Central Offices
© Eduardo Sanchez
AIRBUS Spain Central Offices
© Eduardo Sanchez

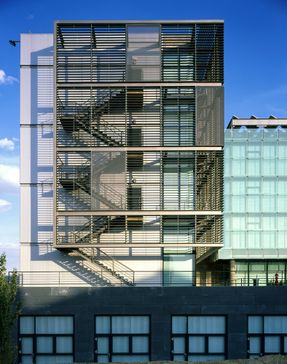

But to the South it has a double façade composed by a skin of glass, and a second façade of horizontal metal louvers for light sun control.

The lateral wings also have double façades, in this case double glass façades with an intermediate space.These double façades are intended to prevent the greenhouse effect, which is difficult to control using louvers in the East and West orientations.

AIRBUS Spain Central Offices
© Eduardo Sanchez
AIRBUS Spain Central Offices
© Eduardo Sanchez

This double façade forces up the hot air circulation in the inside, eliminating it quickly in summer, and allowing its reuse in winter by injecting the hot air in the air conditioning system.

The energy-efficient system is completed with a ventilated double cover formed by metal louvers that meet three functions: the protection of the air conditioning machinery, the solar light passive control optimizing the circulation of air, and the support of the photovoltaic panels.

AIRBUS Spain Central Offices
© Eduardo Sanchez


AIRBUS Spain Central Offices
© Eduardo Sanchez
AIRBUS Spain Central Offices
© Eduardo Sanchez
AIRBUS Spain Central Offices
© Eduardo Sanchez


AIRBUS Spain Central Offices
Ground Floor
AIRBUS Spain Central Offices
1st Floor


AIRBUS Spain Central Offices
Section
AIRBUS Spain Central Offices
Type Floor


AIRBUS Spain Central Offices
Elevation
AIRBUS Spain Central Offices
Elevation


AIRBUS Spain Central Offices
Detail
AIRBUS Spain Central Offices
Model
AIRBUS Spain Central Offices
Detail
