CALA MANDIA

CMV Architects

ARCHITECTS
CMV Architects

YEAR
2005

AREA
1601.26 m²

LOCATION
Manacor, Spain

CATEGORY
Houses

Text description provided by architect.

Due to the geometry and topography of the parcel, with unevenness of over 10 meters of fall from the street, it is chosen to construct two different typologies to better adjust to the land.

Also, is distinguished the intervention through a little amassed volumetry.

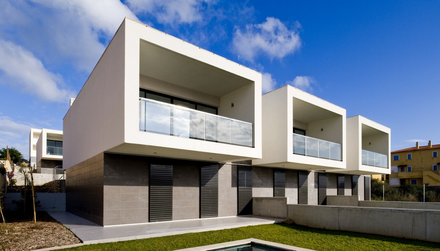

Cala Mandia
© CMV Architects
Cala Mandia
© CMV Architects

As far as for the distribution of the dwellings; the lounges are placed in the upper floor so it allows a better view without needing to rise too much the ground floor.

The access is built by the back façades, average level below from the plant floor, with the intention to better fit the building in the land.

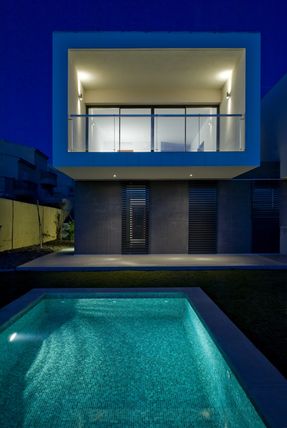

Cala Mandia
© CMV Architects
Cala Mandia
© CMV Architects


Cala Mandia
Ground Floor Plan
Cala Mandia
Plan
Cala Mandia
Plan

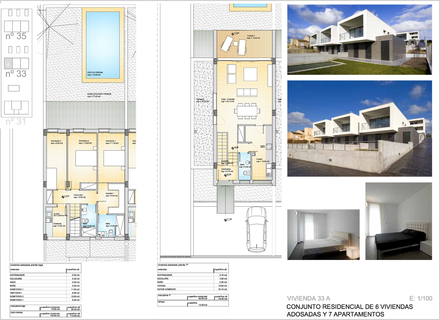

Cala Mandia
Plan 3
