VALDEMORILLO HOUSE EXTENSION

Padilla Nicás Arquitectos

CATEGORY
Houses, Refurbishment

LOCATION
Madrid, Spain

ARCHITECTS
Padilla Nicás Arquitectos – Francisco José Padilla & Juan Manuel Nicás

YEAR
2005

Text description provided by architect.

The project is an extension of a single family home located next to the Valmayor reservoir with a small pavilion and terrace oriented towards the water.

Valdemorillo House Extension
© Padilla Nicás Arquitectos
Valdemorillo House Extension
© Padilla Nicás Arquitectos
Valdemorillo House Extension
© Padilla Nicás Arquitectos

The integration of the new building with the existing comes as a result of the sloping roofs, while the laminated wood structural frames distinguish it as different.

This 'light' construction seeks to make a transition between the original house and the surrounding landscape.

The project is hardly visible from the entry walkway, except for the gables that project slightly, finally becoming apparent from the interior of the parcel.

Valdemorillo House Extension
© Padilla Nicás Arquitectos
Valdemorillo House Extension
© Padilla Nicás Arquitectos
Valdemorillo House Extension
© Padilla Nicás Arquitectos

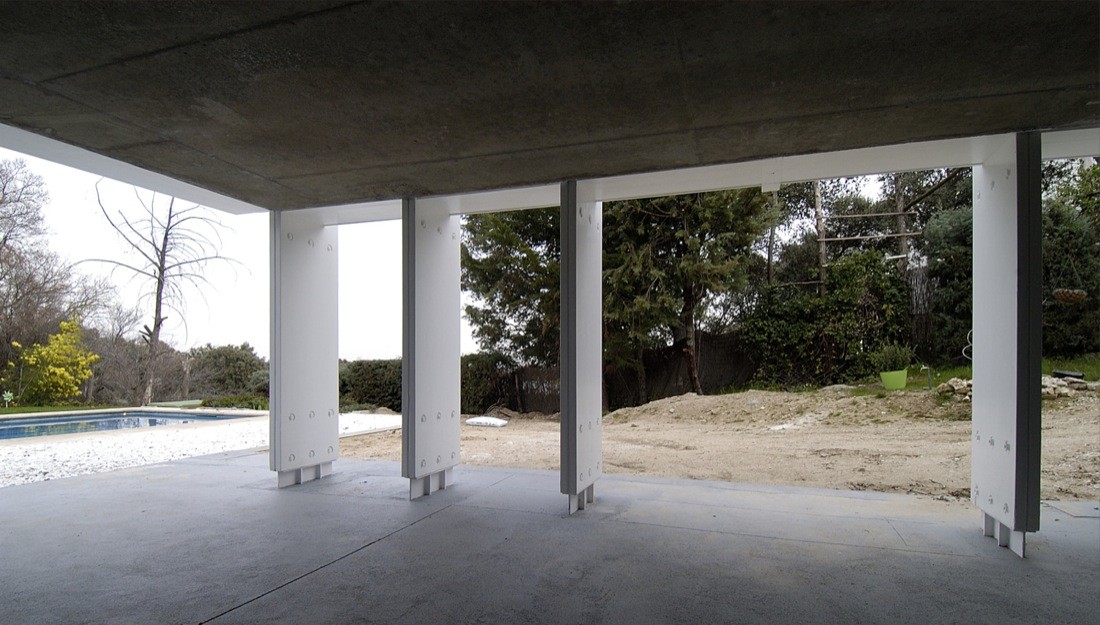

The structure consists of prefabricated laminate wood frames.

They were assembled on site and painted white to blend with the exisiting house.

Valdemorillo House Extension
© Padilla Nicás Arquitectos
Valdemorillo House Extension
© Padilla Nicás Arquitectos
Valdemorillo House Extension
© Padilla Nicás Arquitectos
Valdemorillo House Extension
© Padilla Nicás Arquitectos

The assembly at each joint employs a steel plate sandwiching the web of each frame and bolted from the exterior.


Valdemorillo House Extension
LEVEL 00 PLAN
Valdemorillo House Extension
Level 01 Plan


Valdemorillo House Extension
Section 01
Valdemorillo House Extension
Section 02
Valdemorillo House Extension
Section 03
Valdemorillo House Extension
Section 04


Valdemorillo House Extension

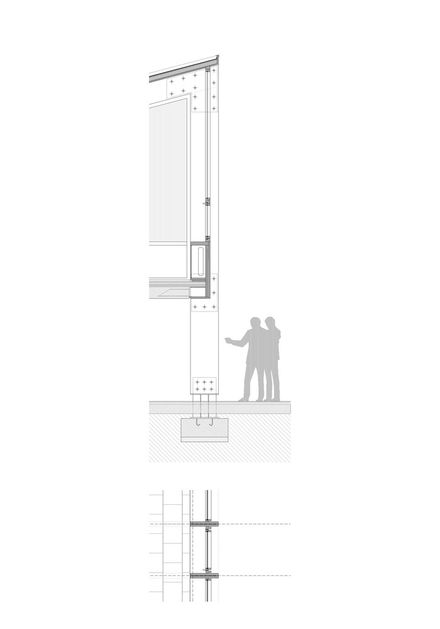

Detailed section
Valdemorillo House Extension
Detailed
