SPIKVOORDE II

René van Zuuk Architekten

AREA
2150.0 m²

YEAR
2005

LOCATION
Deventer, The Netherlands

CATEGORY
Mixed Use Architecture, Housing, Educational Architecture

Text description provided by architect.

Spikvoorde is a part of "De Vijfhoek" (The Pentagon), a new neighborhood in the city of Deventer in The Netherlands.

Spikvoorde II
© René van Zuuk Architekten
Spikvoorde II
© René van Zuuk Architekten
Spikvoorde II
© René van Zuuk Architekten

The project is situated in a very prominent location in this area, just across a T-junction which offers a view to all directions.This distinct location calls for a vertical beacon that acts as a reference point within the neighborhood.

Therefore the building has been split in segments that accentuate this vertical effect, which becomes even stronger when reflected in the water when seen from the entrance way The segments itself are horizontally split to create balance in the facade.

The first segment is aligned with the entrance road. This volume get repeated two times by rotation.

Spikvoorde II
© René van Zuuk Architekten
Spikvoorde II
© René van Zuuk Architekten
Spikvoorde II
© René van Zuuk Architekten

The complete configuration curves along with the road that runs next to the water, creating a complex system to the eye but that is highly repetitive in building structure (floor and facade parts).

The north side is different; here the partly underground building follows the adjoining road.

On this side the entrance to primary school, which will occupy the first three floors, has been placed. Next to their entrance a raised playground tops an extension that hides the schools offices.

Spikvoorde II
© René van Zuuk Architekten


Spikvoorde II
© René van Zuuk Architekten
Spikvoorde II
© René van Zuuk Architekten


Spikvoorde II
© René van Zuuk Architekten
Spikvoorde II
© René van Zuuk Architekten
Spikvoorde II
© René van Zuuk Architekten


Spikvoorde II
First Floor.
Spikvoorde II
Second Floor.
Spikvoorde II
Ground Floor Plan
Spikvoorde II
Site Plan


Spikvoorde II

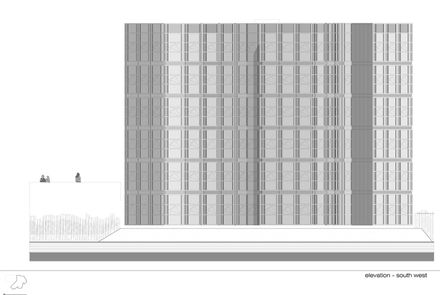

South west elevation.
Spikvoorde II
North west elevation.
Spikvoorde II
North east elevation
Spikvoorde II

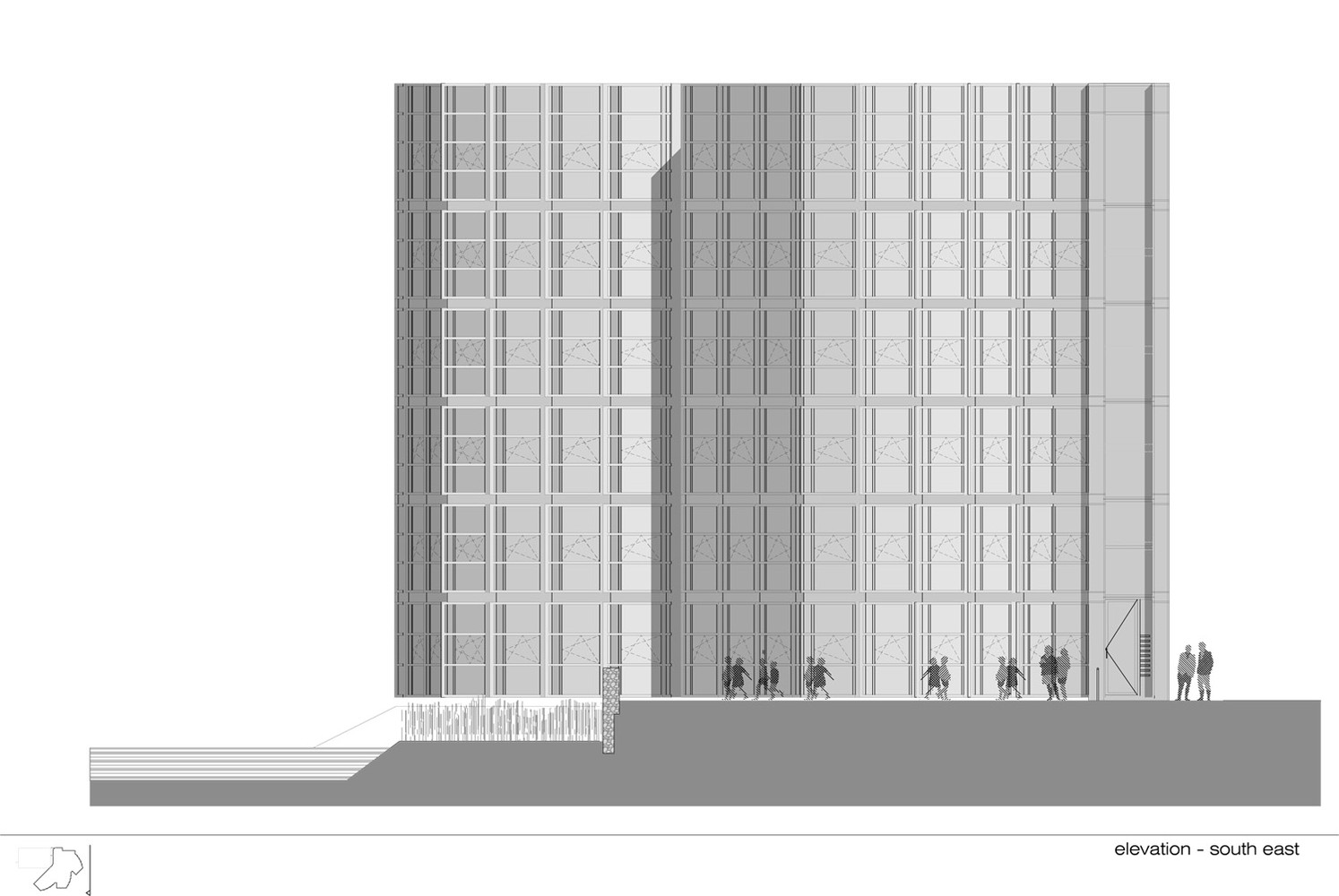

South east elevation.


Spikvoorde II
Section
Spikvoorde II
Vertical section.
Spikvoorde II
Horizontal section
Spikvoorde II
Horizontal section Facade.
Spikvoorde II
Horizontal section facade 2


Spikvoorde II
Facade
