Child and Youth Center Helene P.

Child and Youth Center Helene P.
© Roland Halbe

CHILD AND YOUTH CENTER HELENE P.

Kauffmann Theilig & Partner

ARCHITECTS
Kauffmann Theilig & Partner

PHOTOGRAPH
Roland Halbe

AREA
352.0 m²

LOCATION
Stuttgart, Germany

CATEGORY
Youth Center, Residential Architecture

Text description provided by architect.

Right at a main road that leads to the inner city of Stuttgart there was the old youth centre, a former chemist's mansion from 1870.

Child and Youth Center Helene P.
© Roland Halbe
Child and Youth Center Helene P.
© Roland Halbe

It was redeveloped and an extension was added that should appear as much as possible like an artificial landscape.

The unique appearance of the new complex creates a characteristic location that all young users should identify with.

Child and Youth Center Helene P.
© Roland Halbe
Child and Youth Center Helene P.
© Roland Halbe

There are different usage located in each building part: the open youth work for all young people in the old villa, the mobile youth work for people with migrant back-ground in the tower beside and the day care for children in the low vegetated part at the street.

All parts are arranged that they could be used independently. They are clearly visible to the outside and are linked through the basement where communi-cative elements such as a multipurpose room and a cafeteria with kitchen is lo-cated.

Child and Youth Center Helene P.
© Roland Halbe
Child and Youth Center Helene P.
© Roland Halbe

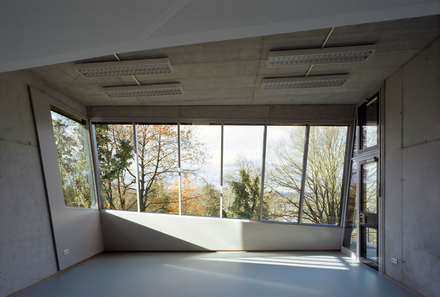

There is also a semi-public outdoor area with sport facilities. The panoramic view over Stuttgart is present in nearly all the rooms of the building.

In the old building all windows and doors were replaced and all technical and safe-ty installations were renewed.

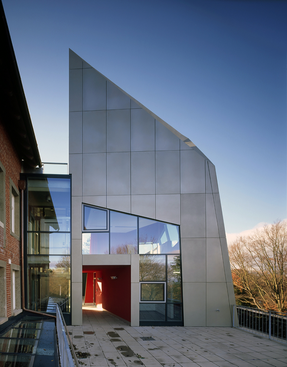

The wooden flooring and friezes were refurbished if possible. The construction of the new building is mostly concrete with green roofs. The very sloped facades are lined with metal and fibreboard panels.

Child and Youth Center Helene P.
© Roland Halbe


Child and Youth Center Helene P.
© Roland Halbe
Child and Youth Center Helene P.
© Roland Halbe
Child and Youth Center Helene P.
© Roland Halbe
Child and Youth Center Helene P.
© Roland Halbe
Child and Youth Center Helene P.
© Roland Halbe
Child and Youth Center Helene P.
© Roland Halbe


Child and Youth Center Helene P.
© Roland Halbe
Child and Youth Center Helene P.
© Roland Halbe


Child and Youth Center Helene P.
Section A
Child and Youth Center Helene P.
Section B


Child and Youth Center Helene P.

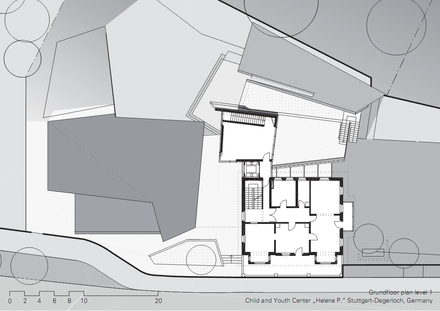

Plan 0
Child and Youth Center Helene P.
Plan 1
Child and Youth Center Helene P.
Plan 2
Child and Youth Center Helene P.
Plan 3
Child and Youth Center Helene P.
Site Plan
