TIJ49 SCHOOL

Hvdn

ARCHITECTS
Hvdn

LOCATION
Amsterdam, The Netherlands

YEAR
2006

CATEGORY
Education,Schools

PHOTOGRAPHS
Luuk Kramer, Hvdn, Jan Derwig

Text description provided by the architects

LOCATION

Blok 49 on IJburg is reserved to accommodate unusual functions and activities such as Blijburg, a temporary beach with its associated bars.

tij49 School
© Luuk Kramer
tij49 School
© Jan Derwig

The block and its surroundings will be further developed in the coming 15 years. This temporary school, with a planned lifespan of 20 years, is intended to accommodate the forecast swell in the number of IJburg’s schoolchildren.

In order to make optimal use of the site, the building traverses the block creating a schoolyard that stretching from the waterfront to the street.

SPEED

It was evident in the spring of 2006 that the completion of IJburg’s secondary school was behind schedule.

tij49 School
© Jan Derwig
tij49 School
© Luuk Kramer

As the commencement of the school year in September could not be postponed, the Municipality decided to speedily construct a temporary school. With the completion of the original school, the temporary structure would be made available to accommodate the future increse in the number of primary schoolchildren.

Even though the time frame from conception to completion was less than six months, the client stipulated that this should not manifest itself in the building’s appearance.

The proposal involves a three-storey building with a wide, double-loaded central corridor.

tij49 School
© Jan Derwig
tij49 School
© Luuk Kramer
tij49 School
© HVDN

By compartmentalising the building vertically, to comply with the fire regulations, the stairwells and voids form part of this central space.

The three entrances are located in the building’s long elevation facing the schoolyard.

BANDS

To harmonise the stacked prefabricated elements into a convincing building, the horizontal bands in the façade are strongly articulated. The cantilevered strips also function as effective sun screens and shelter for the entrances.

tij49 School
© HVDN
tij49 School
© Luuk Kramer
tij49 School
© Luuk Kramer

They are finished with a sprayed rubber layer, white on the outside and with a different brightly coloured soffit per floor. The colouring corresponds with the school’s internal colour scheme. By illuminating the bands at night, the building acts as a beacon in the neighbourhood.


tij49 School

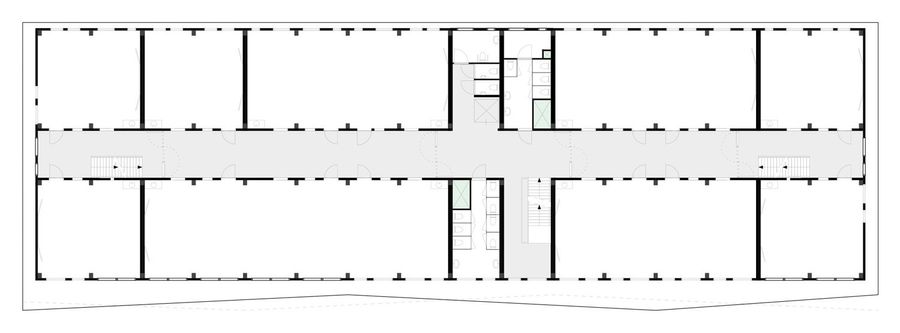

Plan
tij49 School
Plan
tij49 School
Plan

tij49 School
Site Plan


tij49 School
Elevation
tij49 School
Elevation
tij49 School
Elevation
tij49 School
Elevation


tij49 School

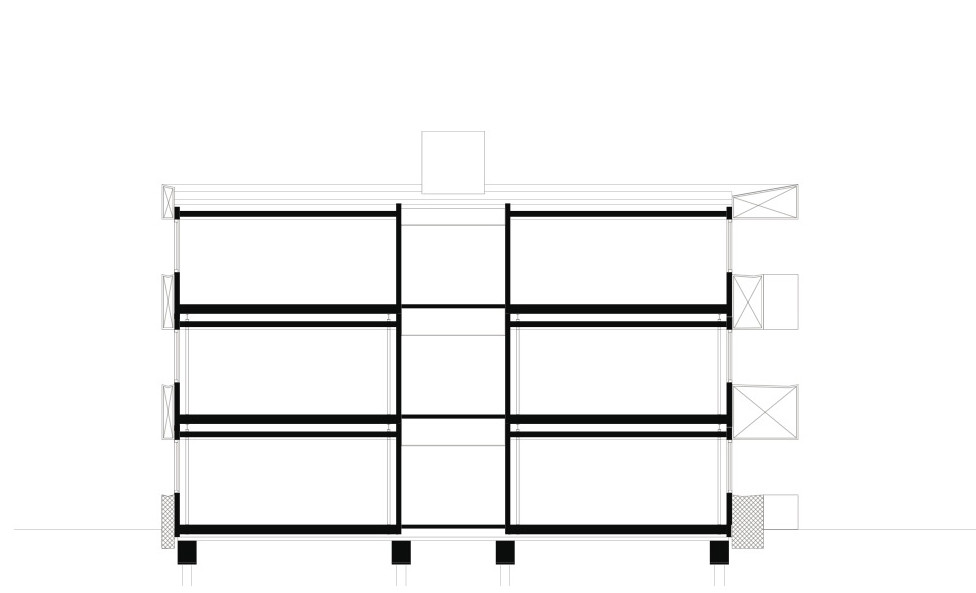

Section
tij49 School
Section
tij49 School
Section
