DELTA SHELTER

Olson Kundig

ARCHITECTS
Olson Kundig

INTERIOR DESIGNER
Debbie Kennedy

MANUFACTURERS
AEP Span, Cassina, Ceco Door, Chista, Farwest Ironwork, Fleetwood, Knoll International, Leaf Chair, Milgard, Poltrona Frau, Weyerhaeuser

CONSULTANTS
MCE Structural Consultants, Turner Exhibits

DESIGN PRINCIPAL
Tom Kundig

PROJECT MANAGER
Ellen Cecil

CRAFTSPEOPLE
Farwest Iron Works Inc.

CONTRACTOR
Tim Tanner

PHOTOGRAPHS
Tim Bies / Olson Kundig, Benjamin Benschneider / Olson Kundig

YEAR
2005

LOCATION
Mazama, United States

CATEGORY
Lodging, Houses

Text description provided by architect.

Delta Shelter – a 1,000 square-foot cabin – is essentially a steel-clad box on stilts that can be completely shuttered when the owner is away.

Delta Shelter
© Benjamin Benschneider / Olson Kundig
Delta Shelter
© Benjamin Benschneider / Olson Kundig

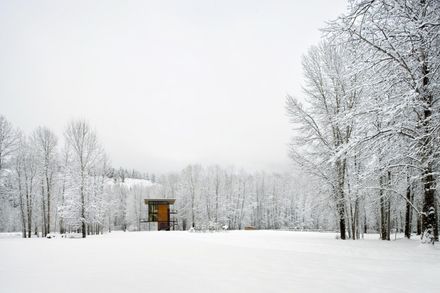

The 200 square-foot footprint of the house rises above a 40-acre, 100-year flood plain adjacent to the Methow River. The verticality, coloring and raw nature of the materials used for construction directly respond to the wildness of the setting.

The owner sought a compact, easy to maintain, virtually indestructible building to house himself and his friends for fun and adventure in the mountains. With an exterior of steel, the house is virtually indestructible.

Delta Shelter
© Benjamin Benschneider / Olson Kundig
Delta Shelter
© Benjamin Benschneider / Olson Kundig

The cabin is composed of three levels: the lowest level is half carport, half utility/storage room; the middle level consists of the entry, two small bedrooms and bathrooms; the top level is one large space which includes living, dining and cooking areas.

Cantilevered steel decks extend from the top and middle levels and provide space for outdoor sleeping and entertaining.

The cabin is supported by four steel columns. Floors are 3” x 6” tongue-and-groove wood car-decking, and exterior wood infill walls are clad in 16-gauge, hot-rolled steel sheets with exposed steel fasteners.

Delta Shelter
© Tim Bies / Olson Kundig
Delta Shelter
© Tim Bies / Olson Kundig
Delta Shelter
© Tim Bies / Olson Kundig

Most of the structure, including the steel structure, roof panels, shutters, and stairs, was prefabricated off-site, thereby reducing on-site waste and site disruption. Due to prefabrication and the use of plywood for all interior surfaces, typical construction wastage was kept to a minimum.

Aside from building as small a structure as possible and limiting the impact on the landscape, Delta Shelter’s most unique sustainable strategy was to be able to open the structure to the environment and to use human power as the means to do it.

Delta Shelter
© Tim Bies / Olson Kundig
Delta Shelter
© Tim Bies / Olson Kundig

All four shutters, which measure 10’ x 18’, can be opened and closed simultaneously by using a hand wheel that moves the shutters over the glazed portions of each façade. The shutters are operated by a series of mechanical devices including a hand wheel, drive shafts, u-joints, spur gears and cables. All windows are operable. No air conditioning is included in the project.


Delta Shelter
© Benjamin Benschneider / Olson Kundig
Delta Shelter
© Benjamin Benschneider / Olson Kundig
Delta Shelter
© Benjamin Benschneider / Olson Kundig
Delta Shelter
© Benjamin Benschneider / Olson Kundig
Delta Shelter
© Benjamin Benschneider / Olson Kundig
Delta Shelter
© Benjamin Benschneider / Olson Kundig


Delta Shelter

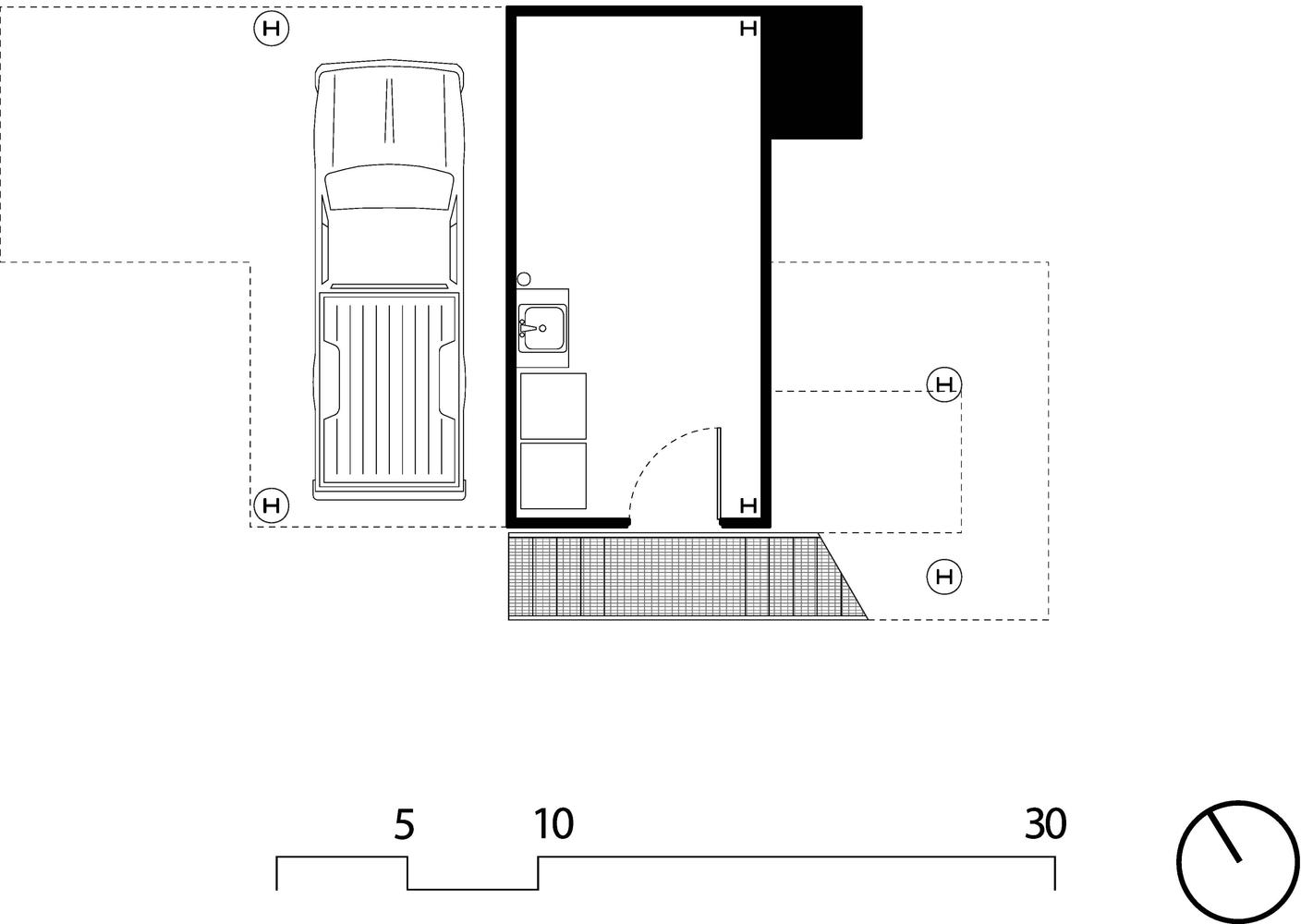

1st Floor Plan
Delta Shelter
2nd Floor Plan
Delta Shelter
3rd Floor Plan


Delta Shelter
Section 1
Delta Shelter
Section 2
Delta Shelter

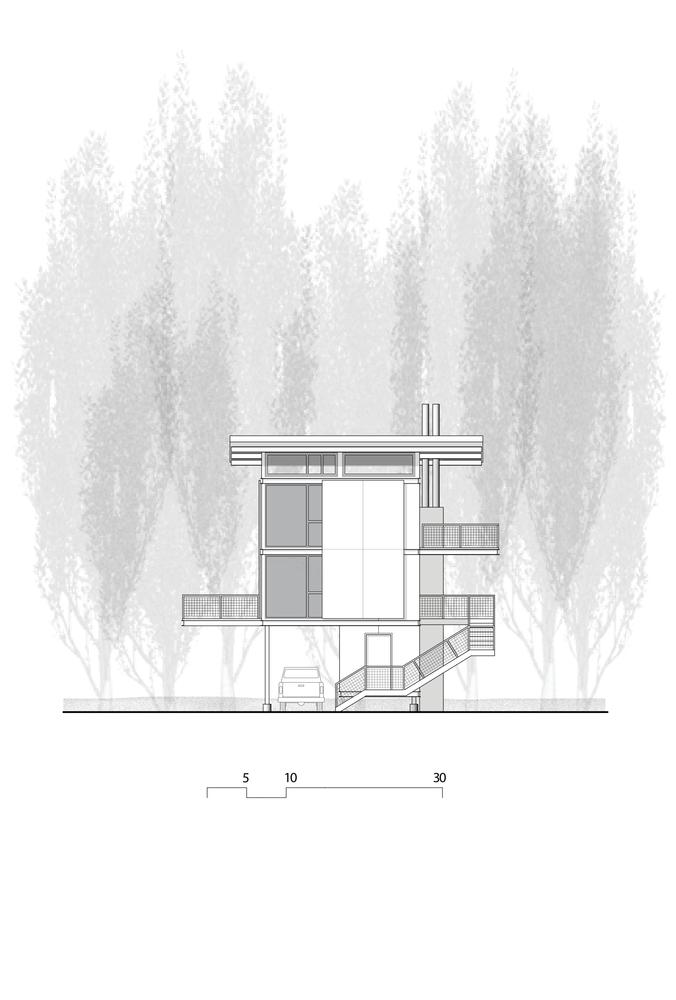

Elevation 1
Delta Shelter

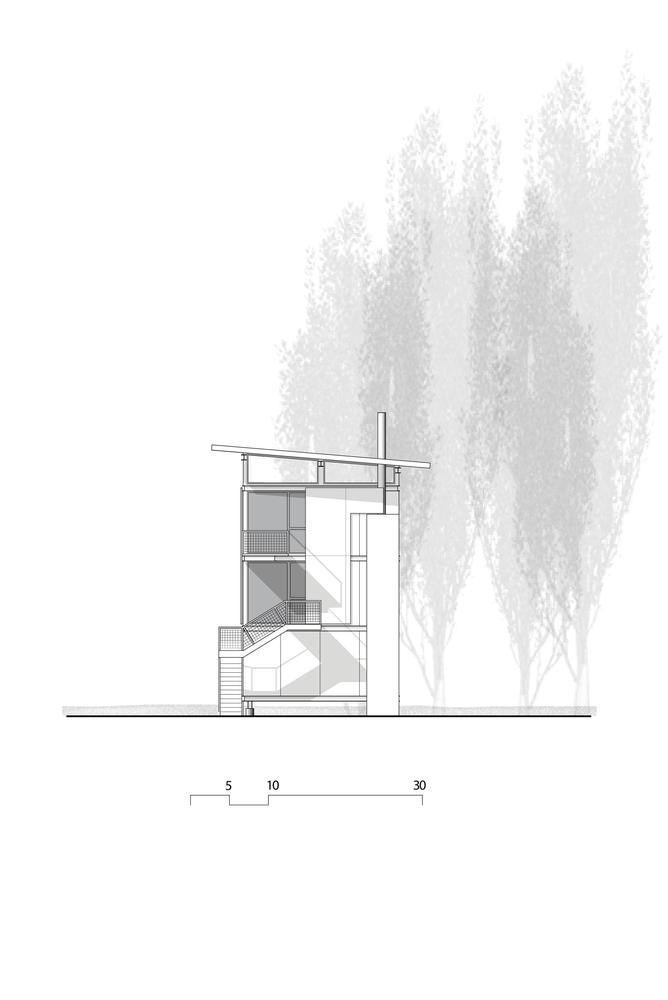

Elevation 2
Delta Shelter
Elevation 3
Delta Shelter
Elevation 4


Delta Shelter
Sketch 1
Delta Shelter
Sketch 2
Delta Shelter
Sketch 3


Delta Shelter
Axonometric

Delta Shelter
Site Plan
