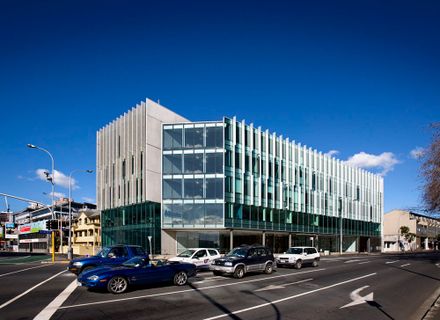

152 Fanshawe Street

152 Fanshawe Street
© Simon Devitt

152 FANSHAWE STREET

Architectus

CATEGORY
Office Buildings

LOCATION
Albert-Eden, New Zealand

YEAR
2007

ARCHITECTS
Architectus

AREA
7500.0 m2

PHOTOGRAPHS
Simon Devitt

Text description provided by architect.

On a site at the edge of Auckland’s central business district the client briefed a medium-scale, speculative commercial development.

Located on a busy intersection, one side faces a major arterial route into the city and the other looks across a major city park.

152 Fanshawe Street
© Simon Devitt
152 Fanshawe Street
© Simon Devitt

Medium sized floor plates (1,300m²) have a ceiling height of three metres and a maximum distance to external glazing of 11 metres.

An internal courtyard protects daylight to the eastern façade and provides for building servicing and car park access.

The northern façade responds to the scale and busy nature of Fanshawe Street with a slightly taller building height and a series of rhythmic yet playful vertical concrete fins spanning three floors, forming a strong edge to the street, and providing shading from the northern sun.

152 Fanshawe Street
© Simon Devitt
152 Fanshawe Street
© Simon Devitt

The western façade overlooks Victoria Park with full height glazing at the two lower levels and clear full height glazing with the addition of aluminium vertical fins to control solar gain on the upper levels.

The two façades slide past each other at the corner where a glazed wall spans between the two elements, bringing people and activity up to the street corner. The glazed wall is cut back at street level to provide shelter for pedestrians, and links back to the building entry with a short portico.

152 Fanshawe Street
© Simon Devitt
152 Fanshawe Street
© Simon Devitt

Sustainable features integrated into the design of this building include solar shading, high performance glazing, high levels of insulation, T5 light fittings and low water usage fittings. Cooling and heating is by a VRV multi split air-conditioning system controlled by a building management system.


152 Fanshawe Street
Section
152 Fanshawe Street
Section


152 Fanshawe Street
Plan
152 Fanshawe Street
Plan
152 Fanshawe Street
Plan
