NURSERY SCHOOL IN ALAMCELLES

BmesR29

ARCHITECTS
BmesR29

AREA
1276 m²

YEAR
2007

LOCATION
Almacelles, Spain

CATEGORY
Educational Architecture

The design of this Nursery School in Alamcelles consists of three volumes: the main part contains classrooms on three floors, the two adjacent volumes, separated by a small yard, contain the multipurpose room, services and administrative offices.

Nursery School In Alamcelles
Nursery School In Alamcelles
Nursery School In Alamcelles

These are connected to the main body of classrooms through a joint element that contains the bathrooms and storage.

Functionally the uses described are articulated through a longitudinal distribution corridor that gives access to different areas.

This corridor is book ended by staircases. The structure starts with an isolated foundation on caissons that support steel columns and a concrete slab.

Nursery School In Alamcelles
Nursery School In Alamcelles

The multipurpose room is constructed by and large without columns, so it is solved with a metal truss system that supports steel decking.

The construction language and finishing of the building allows an architectural reading of the three separate volumes.

Nursery School In Alamcelles
Nursery School In Alamcelles

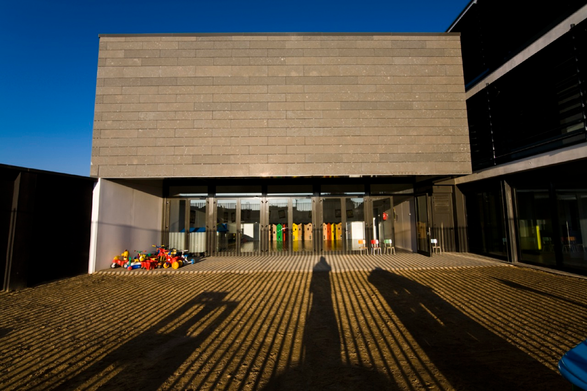

The highest volume is shown as a blunt piece of white stucco supported on a plinth made of Sant Vicenç stone, that links all three volumes and is complemented by the secondary unit finished with the same stone in "saw mode".

The global image of the set is defined by one of highlights elements of the building, the panels of directional louvers, which are very important in the external image, and give the building light versatility and an interior-exterior relationship.

Nursery School In Alamcelles


Nursery School In Alamcelles
Nursery School In Alamcelles
Nursery School In Alamcelles
Nursery School In Alamcelles


Nursery School In Alamcelles

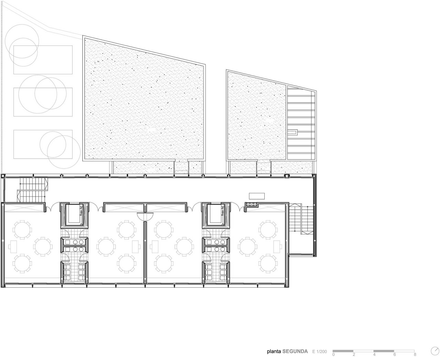

Plan
Nursery School In Alamcelles
Plan
Nursery School In Alamcelles
Plan
Nursery School In Alamcelles
Plan


Nursery School In Alamcelles

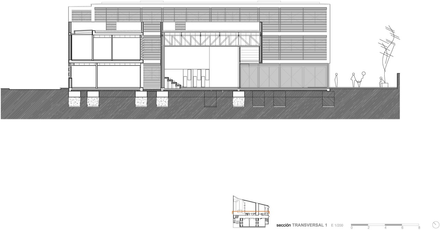

Section
Nursery School In Alamcelles
Section


Nursery School In Alamcelles

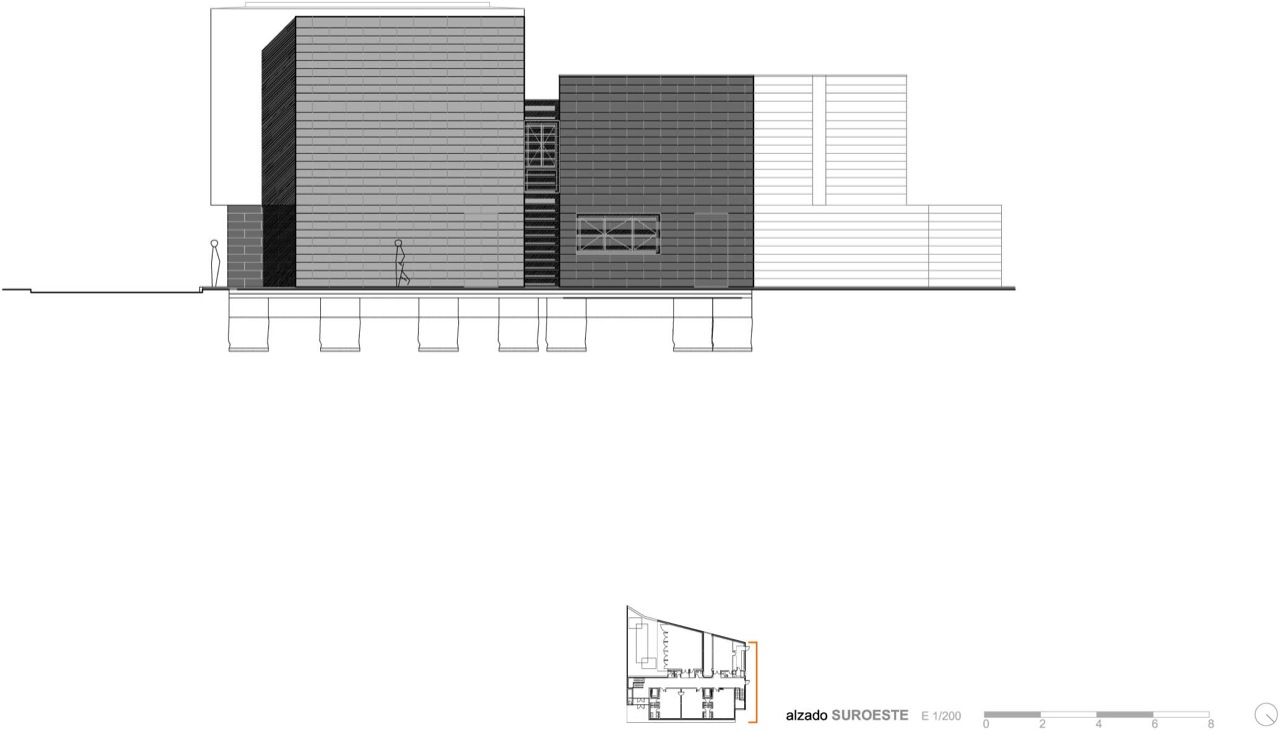

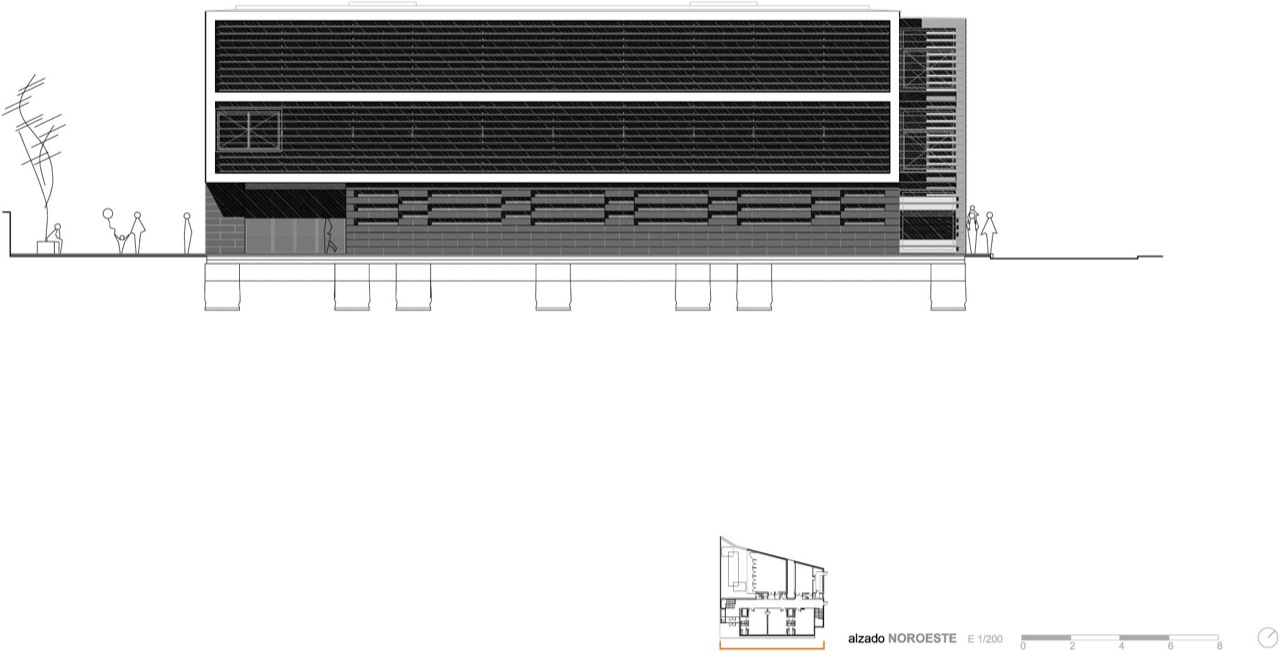

Elevation
Nursery School In Alamcelles
Elevation
Nursery School In Alamcelles
Elevation
Nursery School In Alamcelles
Elevation


Nursery School In Alamcelles
Model
Nursery School In Alamcelles
Model
Nursery School In Alamcelles
Model


Nursery School In Alamcelles
Render
Nursery School In Alamcelles
Render
Nursery School In Alamcelles
Render
