SPORTS HALL LA DEHESA DE NAVALCARBÓN

Pablo Notari Oviedo + Sumar + Conurma

ARCHITECTS
CONURMA Ingenieros Consultores , Pablo Notari Oviedo Pablo Notari Oviedo , SUMAR urbanismo y arquitectura

CATEGORY
Recreation & Training, Renovation

LOCATION
Las Rozas, Spain

AREA
10254 m²

YEAR
2007

COLLABORATORS
Steffen Ringler, Encarnación González-Menaya, arquitectos Arquitecto técnico: Manuel Sevilla Seoane

BUDGET
10.774.666 €

CALCULATION OF STRUCTURE
InfoTaller de Estructuras S.L.

MEASUREMENTS AND BUDGET
Manuel Sevilla Seoane

MANUFACTURERS
Gerflor, ROSAGRES

DRAWINGS
José Luís Paredes Conde

FACILITIES ENGINEER
David Torremocha Mesto

PROJECT MANAGEMENT
Raúl Ortega Carballo

ARCHITECT CONSTRUCTION MANAGEMENT
Pablo Notari Oviedo Pablo Notari Oviedo

CONSTRUCTION
ACCIONA

ARCHITECT TEAM LEADER
Steffen Ringler

CLIENT
Ayuntamiento de las Rozas de Madrid

Sports Hall La Dehesa De Navalcarbón
© Imagen Subliminal

The project involves an extensive refurbishment of the existing sports facilities and its extension.

Sports Hall La Dehesa De Navalcarbón
© Imagen Subliminal
Sports Hall La Dehesa De Navalcarbón
© Imagen Subliminal

The refurbishment required to conserve the old sports hall. The project includes two new separate buildings, and a new entrance hall that links the old and the new constructions.

The two new buildings are conceived as two regular prisms. One houses the indoor pool, its locker rooms, spa area and multipurpose rooms, and the other the Municipal Sports Department and a small auditorium.

Sports Hall La Dehesa De Navalcarbón
© Imagen Subliminal
Sports Hall La Dehesa De Navalcarbón
© Imagen Subliminal

By contrast, the entrance hall is a completely irregular distribution volume.

It adapts its shape to successfully integrate new buildings with the existing one. It is cladded entirely in zinc sheet, to be read as a unitary element, with no difference between facades and roof.

The pool building prism is a glass volume on three sides, South, East and West. In summer, its lower part opens to the grassland, through guillotines windows 9 m. high.

Sports Hall La Dehesa De Navalcarbón
© Imagen Subliminal
Sports Hall La Dehesa De Navalcarbón
© Imagen Subliminal

Above, the glasses are protected from the sunshade with horizontal aluminum louvers. The roof, formed by four large skylights, it can also be opened. On the North side are located the locker rooms and the spa area, with saunas, Jacuzzis, Scottish showers, cold water swimming pools, and a solarium overlooking the park.

Below the pool, technical rooms (purification and air conditioning) and multi-purpose sports halls are located.

Sports Hall La Dehesa De Navalcarbón
© Imagen Subliminal
Sports Hall La Dehesa De Navalcarbón
© Imagen Subliminal

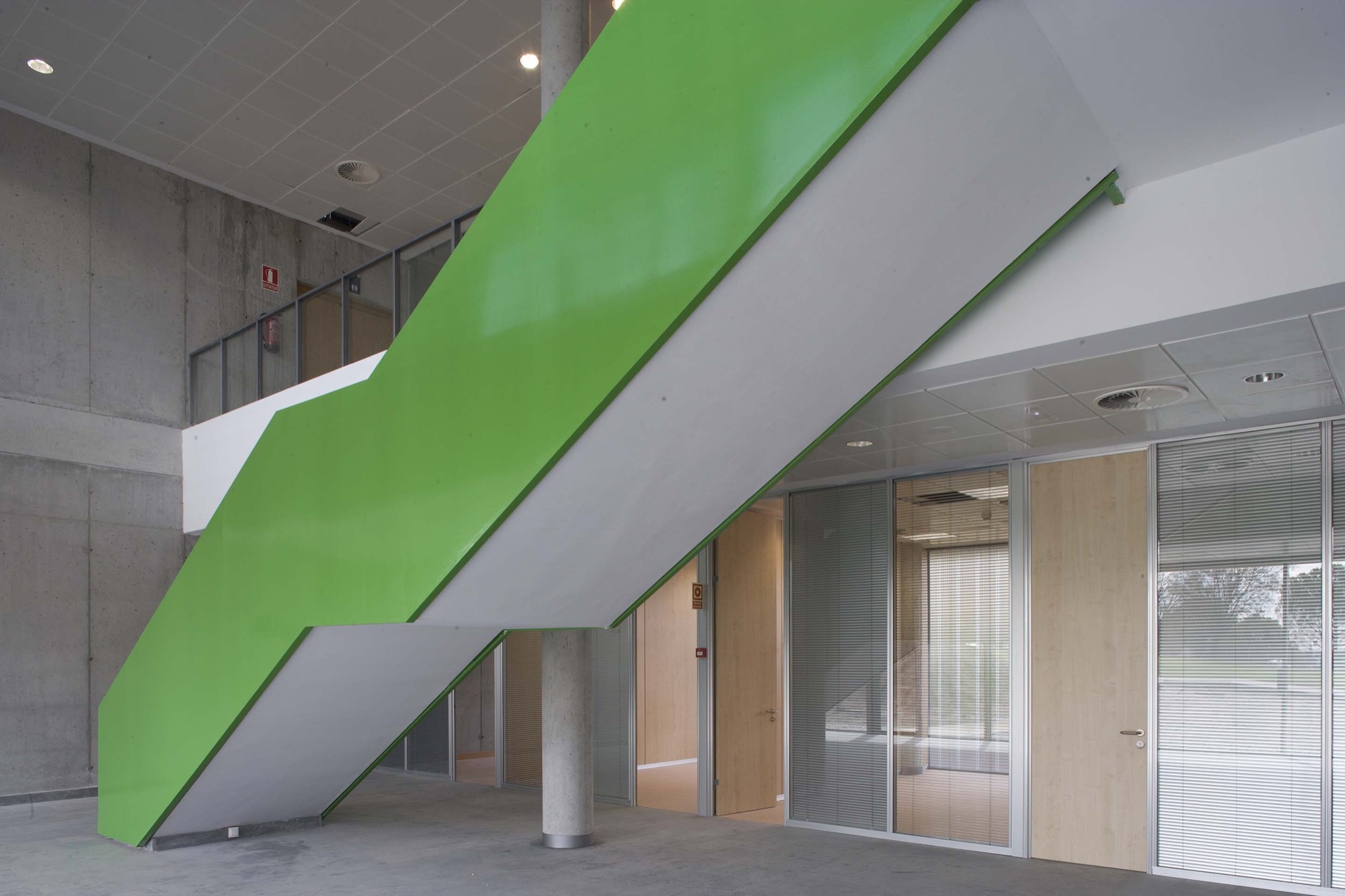

The prism which houses the offices of the Sport Department is formed on the ground floor by three volumes (auditorium, warehouse and the staircase) forming a concrete podium.

Above this podium, the first office floor is solved with ventilated facades of high pressure laminated panels finished on wood on three sides.

Sports Hall La Dehesa De Navalcarbón
© Imagen Subliminal
Sports Hall La Dehesa De Navalcarbón
© Imagen Subliminal

The fourth facade, facing south and with the best views of the garden, is a curtain wall protected from the sun with wooden louvers.

The project is completed with the refurbishing of the existing facilities. A new gym is located in the old swimming pool, opening one of its facades entirely to the garden.

Sports Hall La Dehesa De Navalcarbón
© Imagen Subliminal
Sports Hall La Dehesa De Navalcarbón
© Imagen Subliminal

Under the gym, medical units and monitors offices replace the old technical rooms.

All these rooms open to a new inner courtyard, which serves as connecting element with the new building, where also overlooks the new multipurpose rooms and the swimming pool lockers.

Sports Hall La Dehesa De Navalcarbón
© Imagen Subliminal


Sports Hall La Dehesa De Navalcarbón
© Imagen Subliminal
Sports Hall La Dehesa De Navalcarbón
© Imagen Subliminal
Sports Hall La Dehesa De Navalcarbón
© Imagen Subliminal
Sports Hall La Dehesa De Navalcarbón


Sports Hall La Dehesa De Navalcarbón
Plan 0
Sports Hall La Dehesa De Navalcarbón
Plan -1


Sports Hall La Dehesa De Navalcarbón
Section


Sports Hall La Dehesa De Navalcarbón
Elevation
Sports Hall La Dehesa De Navalcarbón
Elevation


Sports Hall La Dehesa De Navalcarbón
Detail
Sports Hall La Dehesa De Navalcarbón
Detail
