CLOUD TOWER

The next ENTERprise Architects

CATEGORY
Amphitheater

LOCATION
Grafenegg, Austria

AREA
651.0 m2

PROJECT YEAR
2007

LEAD ARCHITECTS
tnE Architects ZT GmbH – harnoncourt | fuchs & partner

GENERAL CONTRACTOR
Alpine Mayreder Bau GmbH, Horn, A

CONSTRUCTION SUPERVISION
BM Horst Pratter, Judendorf-Straßengel, A

PAINTER
Farben Traht, Etsdorf am Kamp, A

STRUCTURAL ENGINEERING
Ingenieurteam GmbH Bergmeister, Varna-Vahrn, Josef Taferner, Jochen Ehmann

PROJECT MANAGEMENT
NÖ Hypo Bauplanungs, Bauträgergesellschaft m.b.H, Johannes Reiterlehner

DRYWALL
Perchtold Trockenbau GesmbH

ACOUSTICS
Müller-BBM GmbH, Karlheinz Müller

CALCULATION
sglw architekten, Werner Silbermayr

CARPENTER
Pöchlhacker Holzbau GmbH, Ybbs, A

GLAZING
Rigo-Glas GmbH

LIGHT PLANNING
Wiltschko Lichtplanung, Berndorf, A

OVERALL PLANNING
ARGE tnE Architects | Land in Sicht

LIGHT DESIGN
Christian Ploderer

LANDSCAPE PLANNING
Land in Sicht, Vienna, A; Thomas Proksch

CONTROLLING
Azberger-Höss ZT GmbH, St. Pölten, A

REINFORCED CONCRETE MATERIALS CONSULTING
Ingenieurbüro Prof. Schießl, Munich, D; Christian Sodeikat

BUILDING RELATED PHYSICS
Wolfgang Hebenstreit

SUPERVISION LANDSCAPING
Land in Sicht, Vienna, A; Andreas Beneš

GEOLOGICAL SURVEY
Mario J. Potoschnik, Vienna

SITE SURVEY
Gerhard Senftner

HVAC PLANNING
Christian Koppensteiner

STRUCTURAL STEEL
Pagitz Metalltechnik GmbH

PREFABRICATED CONCRETE
Alfred Trepka GmbH, Ober-Grafendorf, A

METAL WORKS
Heinrich Renner Ges.m.b.H., Langenlois, A

ELECTRICAL INSTALLATION & EQUIPMENT
Eichinger&Stuber, Langenlois, A

PLUMBING EQUIPMENT & INSTALLATION
Caliqua Gebäudetechnik GmbH, Wiener Neudorf, A

LANDSCAPE GARDENING
Kanovsky Gmbh, Klagenfurt, A

LANDSCAPE PLANNING
Land in Sicht, Vienna, A; Thomas Proksch

LIGHT DESIGN
Christian Ploderer, Vienna, A

REINFORCED CONCRETE MATERIALS CONSULTING
Ingenieurbüro Prof. Schießl, Munich, D; Christian Sodeikat

CONTROLLER
St. Pölten, Azberger-Höss ZT GmbH

SUPERVISION LANDSCAPING
Land in Sicht, Vienna, A; Andreas Beneš

GEOLOGICAL SURVEY
Mario J. Potoschnik, Vienna

SITE SURVEY
Gerhard Senftner, St. Pölten, A

HVAC PLANNING
Christian Koppensteiner, Vienna, A

STRUCTURAL STEEL
Pagitz Metalltechnik GmbH, Vienna, A

METALWORKS
Heinrich Renner Ges.m.b.H

ELECTRICAL INSTALLATION & EQUIPMENT
Eichinger&Stuber, Langenlois, A

LANDSCAPE GARDENING
Kanovsky Gmbh, Klagenfurt, A

PLUMBING EQUIPMENT & INSTALLATION
Caliqua Gebäudetechnik GmbH, Wiener Neudorf, A

PREFABRICATED CONCRETE
Alfred Trepka GmbH, Ober-Grafendorf, A

Text description provided by architect.

In May 2005 the next ENTERprise and the landscape architects Land in Sicht won the competition for a contemporary restructuring of the historical park and for an open-air pavilion.

Cloud Tower
© Alexander Haiden
Cloud Tower
© Lukas Schaller

The pavilion was conceived as a landmark, as an attractor to the park but also as an outstanding performance space for classical music during festival season in summer.

Conceptually the pavilion is based on the idea of a figure that is not bound by any particular purpose and is perceived as a stage only during performances. How can such a free structure serve as an acoustical instrument, able to focus sound energy and direct it to 1700 seats for an ideal music experience?

As a spatial figure the pavilion is generated from elements of the landscape – the depression, the slope, the incision, the hillock – and the architectural folding of the roof.

Cloud Tower
© Lukas Schaller
Cloud Tower
© Lukas Schaller

The 'Schneise' (loosely translated: an incision in the landscape) creates a vista linking the riding school to the 'Black Gate’ and serves as an entrance to and a passage through the auditorium area.

The staging of views and spatial sequences, the framing and hiding of points of attraction, often achieved by the meandering layout of paths in the traditional landscape garden, is a theme taken up by varying the elevation of the incision to achieve these effects.

Cloud Tower
© Lukas Schaller

Coming from the main entrance, the visitor is enticed to proceed by the silhouette of the stage roof, visible behind an artificial mound. Immersing himself into the incision, he tunnels through the hill and – after passing this deep and narrow space – enters the wide arena of the auditorium and the stage, the stage roof suspended above it.

The pavilion is inserted into the existing relational field of entrance gate, riding school, castle, 'Black Gate' and the 'Große Senke' (lit. transl.: large depression) and in the process re-contextualizes the network of views in the landscape.

Through its topographical configuration it reinterprets formal elements of the landscape garden – the play with perspective and visual relations, with contraction and expansion, with enclosure and opening.

The basic rule of acoustics for open-air stages, 'what you see is what you hear' serves as a cue to explore affinities between perspective and acoustic space. The topography of the existing depression – the 'Große Senke' – was emphasized by modeling the terrain.

Cloud Tower
© Lukas Schaller

Artificial hillocks are created by further excavating the depression and subsequently redistributing the soil at its perimeter, thus creating the auditorium tiers. Clearly distinguished from the natural terrain by their geometry, stage and auditorium nonetheless merge fluidly with the topography of the site.

Conceptually, materials were chosen to underscore the open-air character of the site and to strengthen the bond between built structure and landscape. The stage is a monolithic structure of fair-faced concrete, steel and glass embedded into an enveloping hillock.

Cloud Tower
© Lukas Schaller

The audience tiers were designed using prefabricated concrete elements, compacted gravel surfaces and lawn-covered, geometrically precise hillocks.

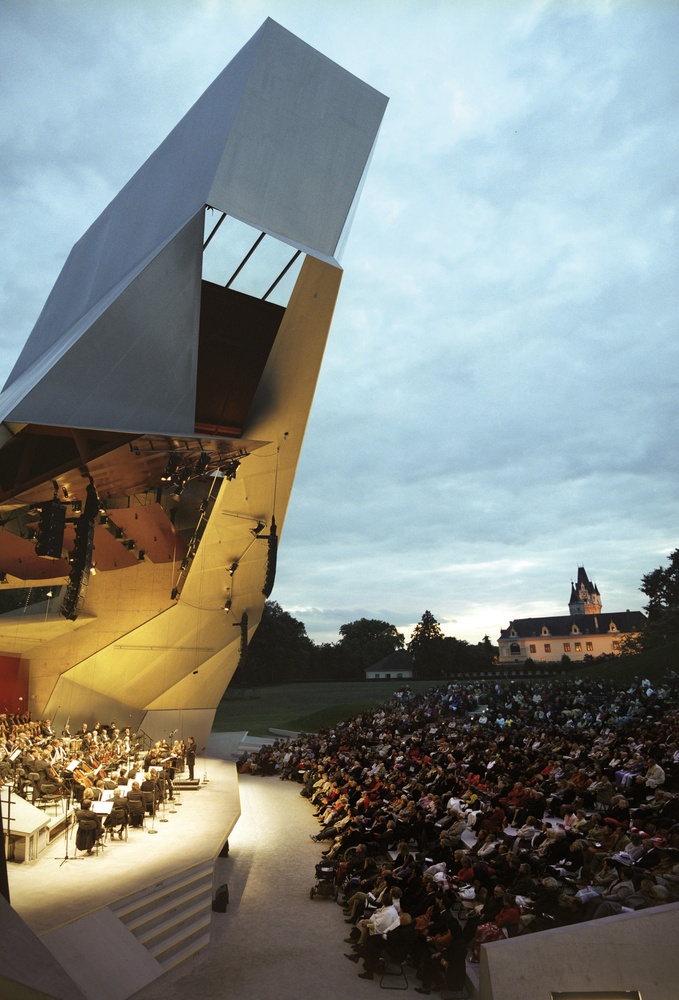

The stage roof is designed as an autonomous, sculptured object. Suspended above the landscape on a level with the tree canopies it is placed among the groups of trees as if it were one more of them. The shiny metal surface on the outside reflects the sky and the trees, turning the roof into a cloud-tower.


Cloud Tower
Section AA/ Section CC
Cloud Tower
Section BB


Cloud Tower
Plan
Cloud Tower
Axonometric


Cloud Tower
Section AA/ Section CC
Cloud Tower
Section BB


Cloud Tower
Diagram
Cloud Tower
Section
