ARTFARM

Ai Weiwei, HHF Architects

LOCATION
Salt Point, Pleasant Valley, NY, USA

CATEGORY
Gallery

AREA
373.0 m2

PROJECT YEAR
2007

PHOTOGRAPHS
Iwan Baan

Artfarm
© Iwan Baan
Artfarm
© Iwan Baan

Text description provided by architect.

The Artfarm is located near Salt Point in upstate New York (1.5h drive from the City), on the site of an existing private residence, built in the 80ies. The client is an art collector and owner of Chambers Fine Art, a well known gallery located in New York City and Beijing and which is specialized in contemporary chinese art.

Artfarm
© Iwan Baan
Artfarm
© Iwan Baan

The building is designed as a gallery for a professional art collection. On the interior it's subdivided into different sized showrooms, an office space and spaces designated to store art.

The outer shape is a consequence of the used pre-engineered and easy to assemble type of steel building, which often gets used for agricultural purposes in that area.

Artfarm
© Iwan Baan
Artfarm
© Iwan Baan

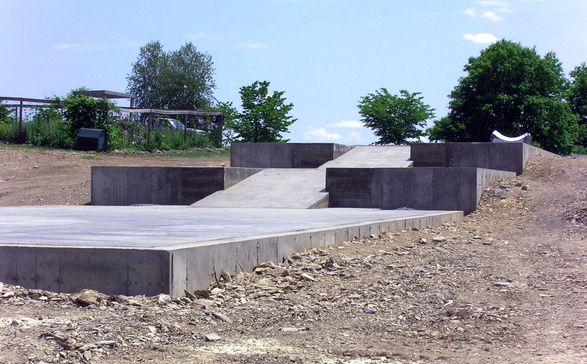

With ist abstract metallic appearance the structure becomes an equal member of a whole groupe of sculptures which are spread out in the landscape. The three volumes are put on a solid concrete slabs, which follow the existing grade on the site.

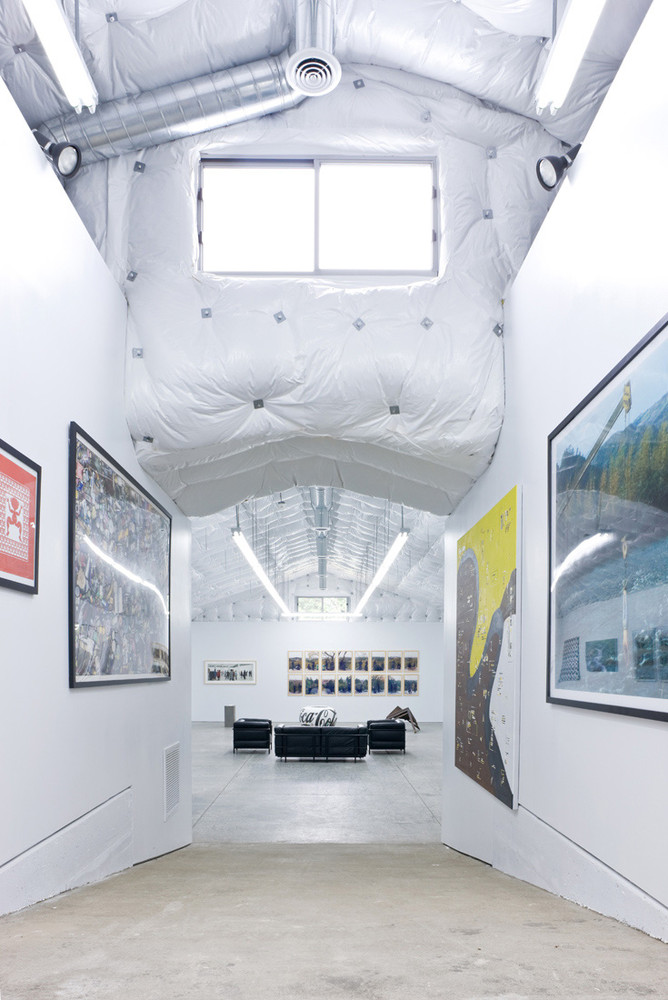

The different levels are connected through a continues cascading ramp in the middle axis. This middle hallway with its ramp works as access for all spaces, allows an easy way of exchanging big pieces of art between storage and showrooms and works at the same time as a picture gallery.

Artfarm
© Iwan Baan
Artfarm
© Iwan Baan

Approaching the Artfarm building from outside you don't know what's expecting you on the inside.

Even though there are only three windows existing to the north (and the end of each hall, above the middle ramp, this is the only visual connection to the outside and allows a view into the wood), the building with its pure white interiors is astonishing bright on the inside.

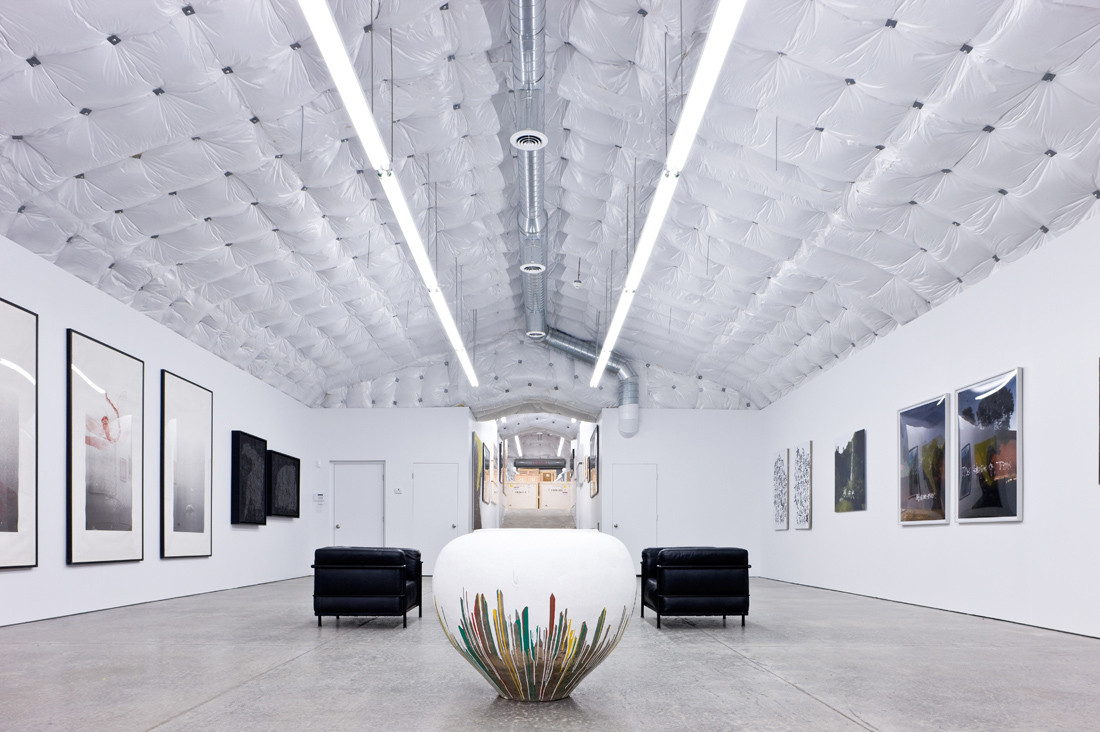

The massive concrete floor and the white shiny PVC batt insulation are creating a quiet and cool space.

Artfarm
© Iwan Baan
Artfarm
© Iwan Baan
Artfarm
© Iwan Baan

For delicate goods such as paintings etc. consistent indoor temperatures are needed, which is a challenge in an area with such enourmous change in temperatures.

With the concept of an hermetic closed and insulated envelope, the existing heating and cooling needs only to conserve the climate and support it when needed.

Artfarm
© Iwan Baan
Artfarm
© Iwan Baan
Artfarm
© Iwan Baan

This seems to work well, during the first summer the cooling had never to be turned on, even on really hot days it was comfortable and cool on the inside.


Artfarm
© Iwan Baan
Artfarm
© Iwan Baan
Artfarm
© Iwan Baan
Artfarm
© Iwan Baan


Artfarm
© Iwan Baan
Artfarm
© Iwan Baan
Artfarm
© Iwan Baan


Artfarm
Floor Plan
Artfarm

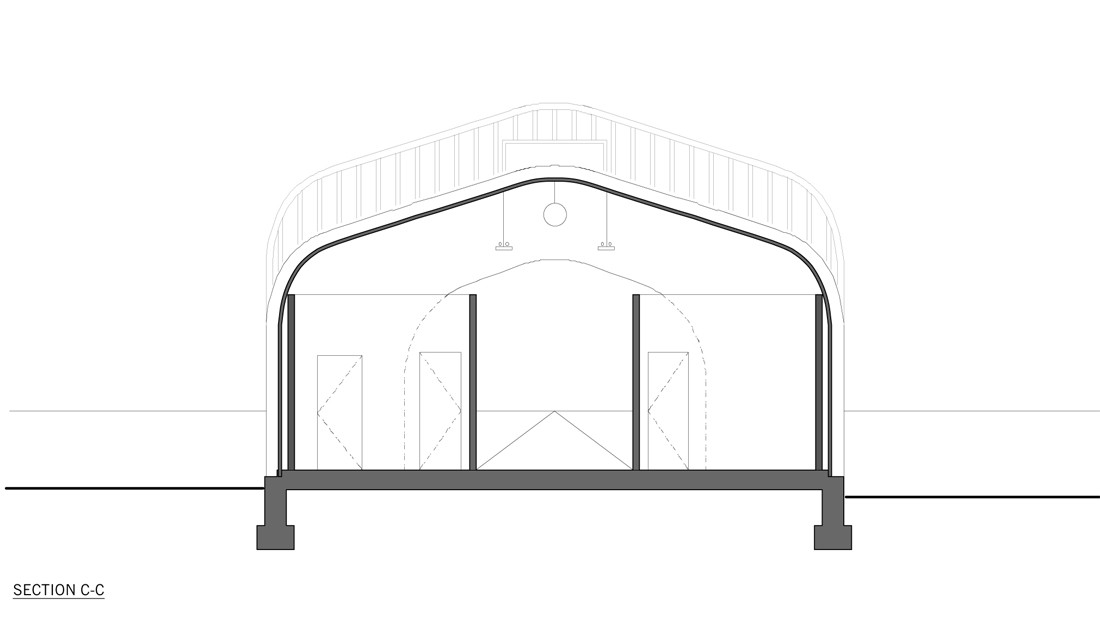

Section


Artfarm
Site Plan
Artfarm
Section
Artfarm
Section
Artfarm
Section


Artfarm
Elevation
Artfarm
Elevation
Artfarm
Elevatuion
