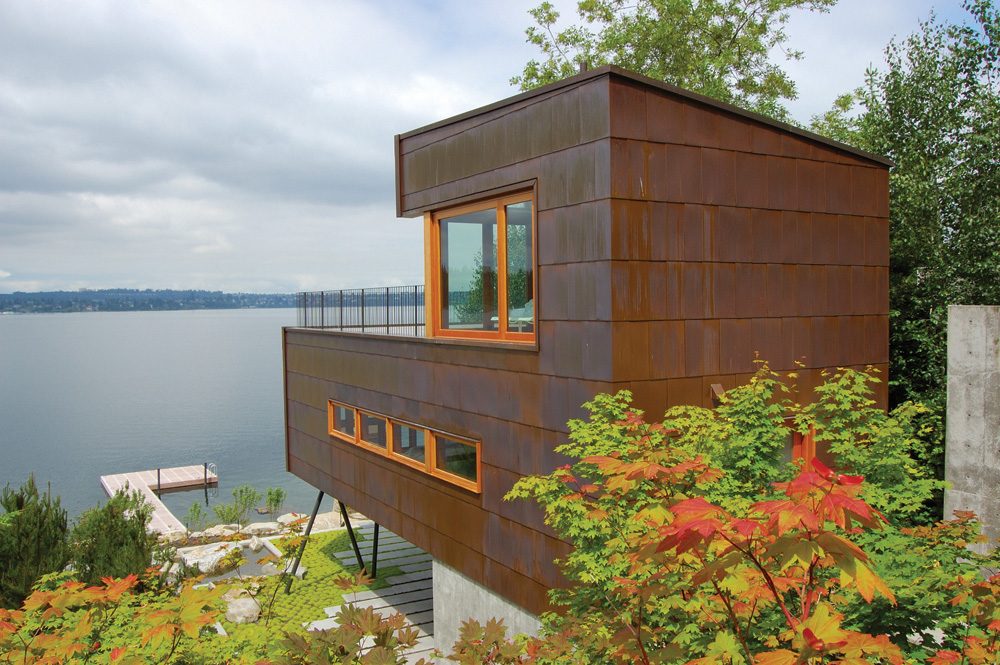

Lake House In United States
© Alan Abramowitz
Lake House In United States
© Alan Abramowitz

LAKE HOUSE

Hutchison & Maul Architecture

LOCATION
Mercer Island, United States

CATEGORY
Houses

PROJECT YEAR
2007

ENERGY INDICATOR
36 kWh/sqm

MANUFACTURERS
Sky-Frame

GLAZING
Fuchs Glas-Technik GmbH

CARPENTRY
Holzbau Lottermoser

BUILDER
Pfleger Building Company

STRUCTURAL DESIGN
Mathias Kronreif

CONSTRUCTION COST
EUR 580,000 building costs excl. VAT

AREA
171 m²

Lake House In United States
© Alan Abramowitz
Lake House In United States
© Alan Abramowitz

Text description provided by architect.

The Neufeldersee - a small lake about 30 minutes away from Vienna, Austria – located between 2 small mountain regions offers an ideal space for summer recreation.

Lake House In United States
© Alan Abramowitz
Lake House In United States
© Alan Abramowitz

The horseshoe-shaped building with a floor space of 220m² is located on the shores of the small lake which was created by flooding an open-cast mine in 1932. It is owned by the royal Esterházy family.

The center of the building is a courtyard in the middle - the patio - which is enclosed by 3 sides of the building and only opens for the water and the evening sun out.

Wood as main building material was chosen from the outset of the whole process of design. It was the only way to get the complex geometry done without cold spots and with the demanded slim dimensions.

Lake House In United States
© Alan Abramowitz
Lake House In United States
© Alan Abramowitz
Lake House In United States
© Alan Abramowitz

First, the prefabricated wooden elements were placed on the foundation plate. The façade was made like a Japanese ornament with black straps. The resulting fields fill the African Okume plates.

Large glass elements were created on the north side - not least in order to provide the optimal light painting residents available.

The only large-scale southern glazing is located in the area of ​​natural shadowing by the neighboring building making further shading unnecessary.

Lake House In United States
© Alan Abramowitz
Lake House In United States
© Alan Abramowitz

In some places the height of the glazing reaches up to the top of the building itself and dematerialized itself in this manner.

ECOLOGY

Another ecological approach can be found - beyond high component insulation values ​​- in the form of an optimized and space-saving and sensible zoning of the living areas.

Lake House In United States
© Alan Abramowitz
Lake House In United States
© Alan Abramowitz

Being a summer house shelter from the sun surpassed the need for a large south-facing exposure . All expansive glazings were created on the north side - not least in order to provide the ideal light for the painting residents.

PARTICULARITIES

Slim construction - Attica lots construction - even with sliding elements.

Lake House In United States
© Alan Abramowitz
Lake House In United States
© Alan Abramowitz

Intricate structures rather than uniform thermal insulation composite facade. Today's construction and the relocation of the building-budget towards building mechanization often compels architects to pragmatism – we want to change that in our design. We want to invest in the design, the shape und the surfaces more than in its technical features.

In this project it meant that high quality products could be installed while keeping a reasonable budget. The weighting was towards high architectural quality combined with achieving a low amount of square meters trough a clever floorplan.

Lake House In United States
© Alan Abramowitz


Lake House In United States
First Floor Plan
Lake House In United States
Second Floor Plan
Lake House In United States
Third Floor Plan
Lake House In United States
Site Plan


Lake House In United States
East & West Elevation
Lake House In United States
South Elevation
Lake House In United States
North Elevation
Lake House In United States
Section
