NETCENTER

François Leclercq + Zakarian-Navelet Architectes

YEAR
2008

PHOTOGRAPHS
Céline Michelon

CATEGORY
Offices

LOCATION
France

AREA
5000.0 m2

Text description provided by architect.

The red office building is part of the global town planning project EUROMED in Marseille. In an ill-asserted and growing environment our project demonstrates continuity and simplicity.

Netcenter
© Céline Michelon
Netcenter
© Céline Michelon

Continuity is based on a permanent architectural dialogue with the renovated neighbourhood. Simplicity is achieved by restricted use of materials and creation of elementary volumes.

The building is a classic construction with a basement, a main section, and a setback attic.

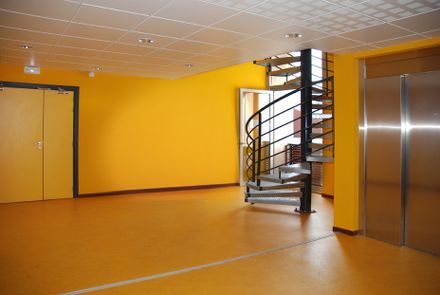

The ground floor fully covers the rectangular plot and is laid out for the reception hall and the computer rooms. It is surrounded by a matrix raw concrete façade with a glazed anthracite grey colour.

Netcenter
© Céline Michelon
Netcenter
© Céline Michelon

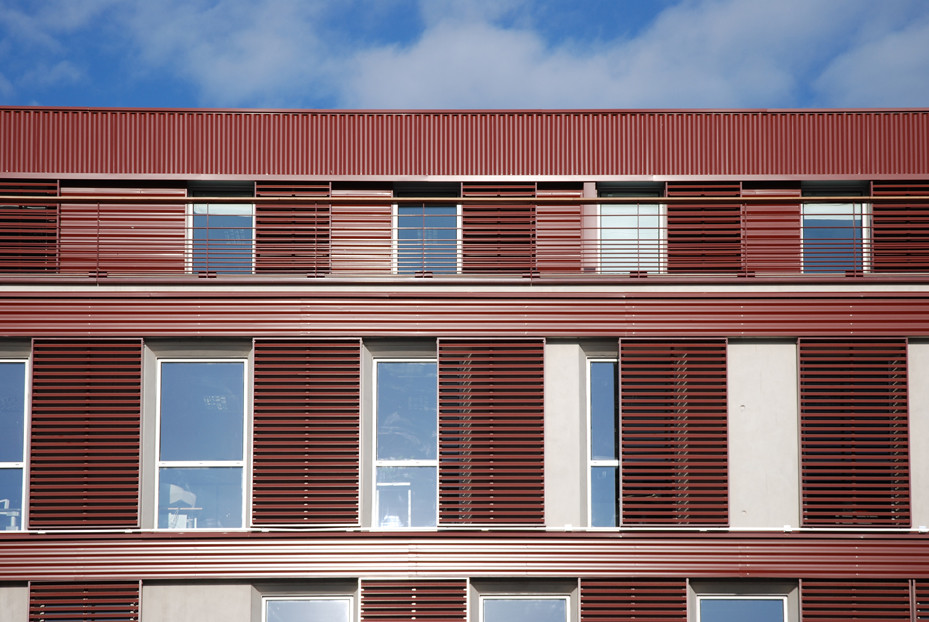

The main section, where the office rooms are located, has a u-form around a planted courtyard. The structural concrete façade is processed in a binary rhythm “full and empty” of 2,70 lm breadth elements. The concrete slabs jut out around the building and are equipped with red aluminium sliding frames.

The system composing the shutter-window-concrete wall is designed to support thermal stress and the heat of the sun in the South of France.

Netcenter
© Céline Michelon
Netcenter
© Céline Michelon

Each user is therefore able to adjust the room temperature and sunny atmosphere according to his own wish and without using air conditioning.

The attic is set back from the front and shows a linear volume at the top level. It is processed in the same material as the neighboring buildings: sheeting on a metal structure with strip shutters opening on to a wooden terrace.

In summary, we intended a construction in accordance with the Mediterranean context including energy savings and banishing glass structures. Answering with simplicity and interacting dialogue with the historical harbour site, our project is calling to be the roots of the development of the new EUROMED area.

Netcenter
© Céline Michelon


Netcenter
© Céline Michelon
Netcenter
© Céline Michelon
Netcenter
© Céline Michelon
Netcenter
© Céline Michelon


Netcenter
Basement Floor Plan
Netcenter
Ground Floor Plan
Netcenter
First Floor Plan
Netcenter
Second Floor Plan
Netcenter

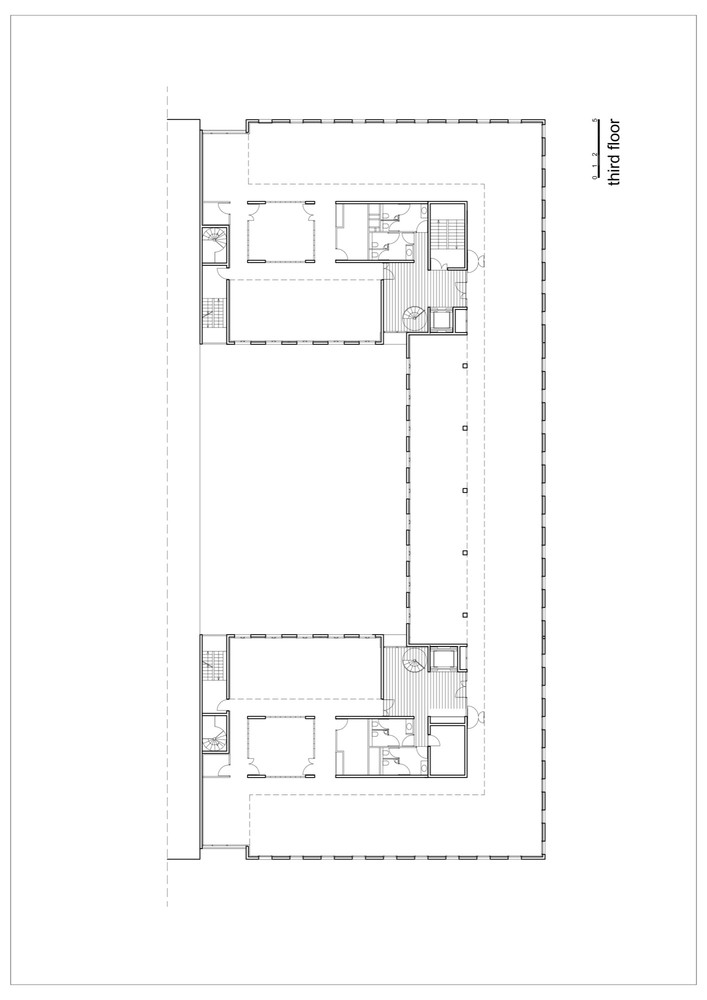

Third Floor Plan
Netcenter

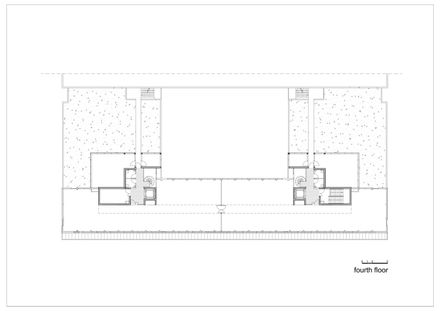

Fourth Floor Plan
Netcenter
Site Plan


Netcenter
Section
Netcenter
West Elevation
