Andreas Fuhrimann Gabrielle Hächler Architekt*innen ETH BSA AG

House Presenhuber

House Presenhuber’s concrete exterior beside the village street, with a stairway leading to a timber entrance.
© AFGH

HOUSE PRESENHUBER

Afgh

ARCHITECTS
Afgh

AREA
224.0 m2

YEAR
2007

CATEGORY
Houses

LOCATION
Ramosch , Switzerland

Text description provided by architect.

This holiday house is located in the middle of the village of Vnà in the Lower Engadine.

Concrete façade of House Presenhuber with deep window recesses and a low stone retaining wall.
© AFGH
House Presenhuber’s angular concrete volume on a grassy slope among village buildings.
© AFGH
Close view of two deeply recessed windows in the concrete façade of House Presenhuber.
© AFGH

The particular challenge of the project was to bridge the divide between the old-world charm of the village and the modern flair embodied in a holiday house for an internationally successful art gallery owner.

The aim was to develop a formal language which had a certain proximity to traditional Engadine architecture and yet remained immediately recognisable as contemporary without being conservatively romanticised.

In urban planning terms, the building closed a permanent gap in the village structure whilst the dimensions correspond to those of the adjacent houses.

House Presenhuber seen beyond a traditional plastered village house and a stone garden wall.
© AFGH
Interior living area with plywood-lined walls and ceiling, concrete surfaces and a long window seat.
© AFGH
Living room with plywood walls, a built-in corner sofa, low tables and a concrete fireplace.
© AFGH

Over time the village was periodically hit by fires, meaning that the original timber structures disappeared and were replaced by the stone houses that give the settlement its indigenous character today.

The use of concrete as the main building material pays justice to this stone appearance.

Open-plan living and dining area with plywood-lined walls, concrete surfaces and a kitchen counter.
© AFGH
Bedroom with plywood wall panelling, a wide corner window and a bed covered with a blue quilt.
© AFGH

Only the inner walls and ceilings of the living and bedrooms are lined in plywood panelling to give the rooms a warmth and comfort and as an approximation of the traditional sheltered feeling of a mountain dwelling. The solidness of the of ground storey is likewise a common regional feature.

The archaic is also reflected in the construction with the use of gas concrete, allowing the walls to be erected homogenously without layering.

Bedroom viewed from the foot of the bed, with plywood storage panels and a concrete ceiling and walls.
© AFGH

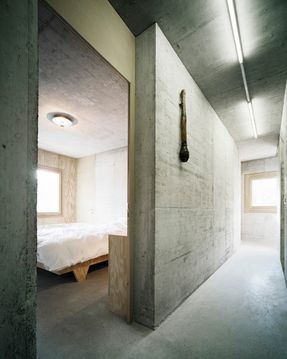

Concrete hallway beside an open bedroom with a bed and plywood-lined interior.
© AFGH

The resulting massiveness of the walls has a great similarity with traditional means of building and enabled the typical corbels of the window reveals.

The windows are arranged according to interior criteria, giving the façade an informal appearance typical of old Engadine houses.

The depth of the reveals create an attractive play of shadows and roots the building firmly in the region.

Window seat overlooking the village, with the view framed by large corner windows.
© AFGH

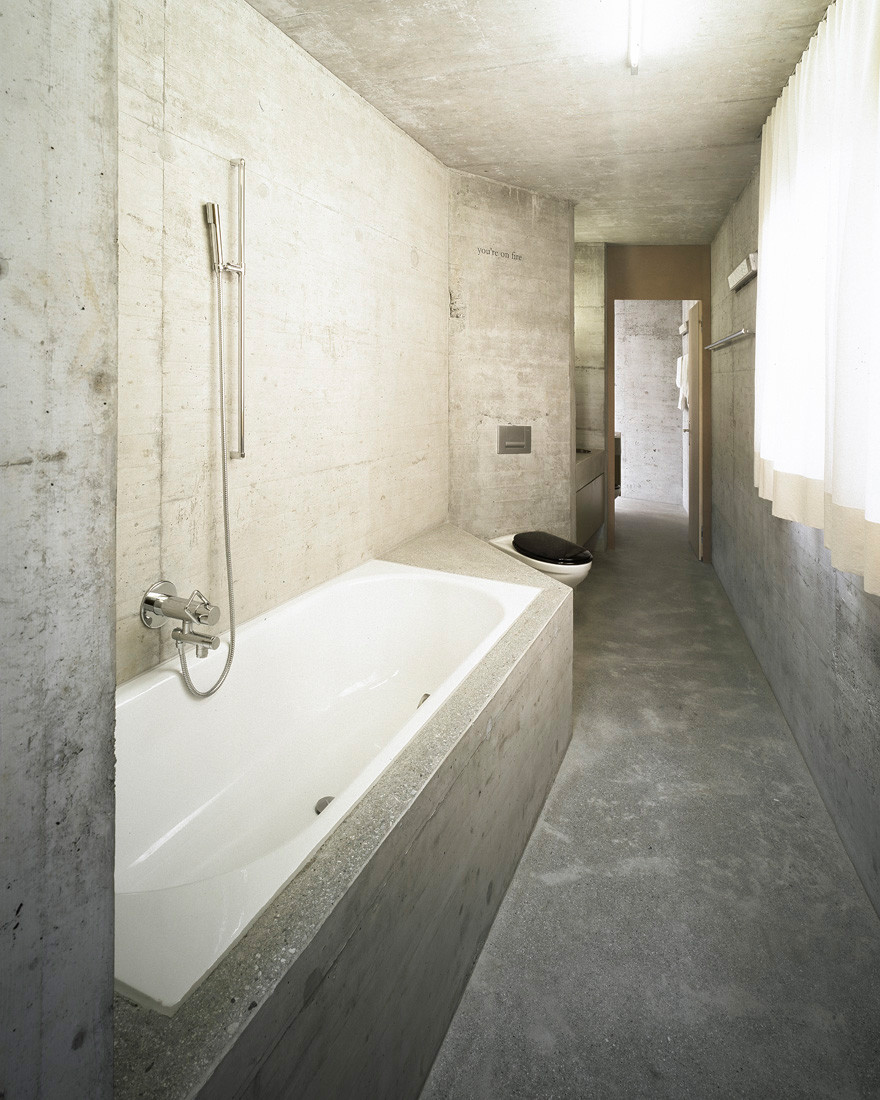

Narrow bathroom with a built-in bathtub, concrete walls and a toilet at the far end.
© AFGH
Concrete art-display room with stepped floor levels, colorful sculptural works and wall lettering.
© AFGH

Finally, the traditional and modernist elements of the sculptural volume blend into a unified whole.

The interplay between simplicity, rural straightforwardness and contemporary comfort and architectural sophistication lend the house a very specific character, which pays respect to the village without being obsequious.


Concrete art-display room with bright sculptural artworks and lettering; House Presenhuber was designed by Andreas Fuhrimann Gabrielle Hächler Architekt*innen ETH BSA AG.
© AFGH
Concrete interior with a timber-framed window beside green cabinetry and a wood counter in House Presenhuber.
© AFGH
House Presenhuber, a concrete house set among neighboring buildings on a sloping village street in Vnà.
© AFGH

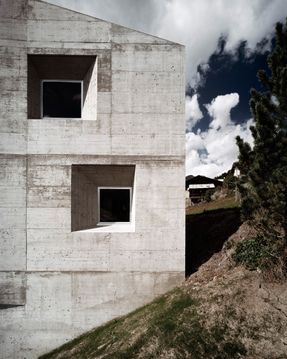

Close view of House Presenhuber’s concrete façade, with deeply recessed windows and projecting reveals.
© AFGH


Roof-level floor plan of House Presenhuber.
Upper-floor plan of House Presenhuber.
Ground-floor plan of House Presenhuber.
Cross-section through House Presenhuber showing its floors and interior staircases.
Longitudinal section through House Presenhuber showing its three levels.
Longitudinal section through House Presenhuber with a stair connecting the levels.


East elevation of House Presenhuber, with window openings set into the façade.
North elevation of House Presenhuber, showing its window openings and roofline.

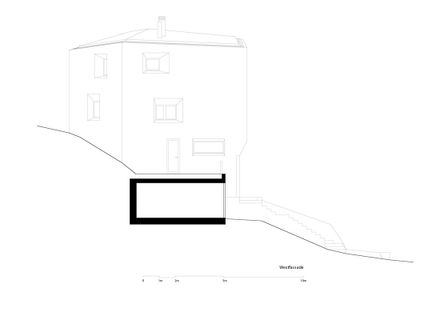

West elevation of House Presenhuber, with the building set against a sloping site.
South elevation of House Presenhuber, showing its façade and recessed windows.

Site plan showing House Presenhuber and neighboring buildings along the village street.
