Andreas Fuhrimann Gabrielle Hächler Architekt*innen ETH BSA AG

House Müller Gritsch

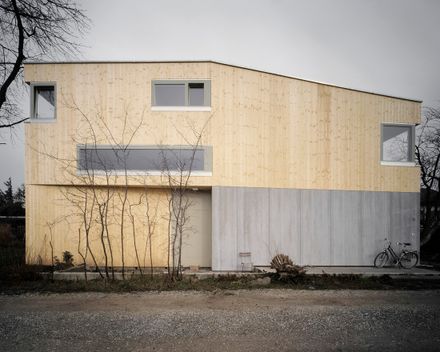

Exterior view of the angular house with timber upper walls and concrete lower walls.
© AFGH

HOUSE MÜLLER GRITSCH

Afgh

ARCHITECTS
Afgh

AREA
232.0 m2

YEAR
2007

LOCATION
Lenzburg , Switzerland

CATEGORY
Houses

Text description provided by architect.

House Müller Gritsch in Lenzburg. The artist couple Barbara Müller and Stefan Gritsch lived for 25 years in the former carpenter's workshop shed of Barbara Müller's father.

The house beside the former carpenter’s workshop, with bare trees in the foreground.
© AFGH
Corner view of the timber-clad house, with a red car beside its concrete lower level.
© AFGH

The sale of the building offered the couple the possibility to construct a new house in the yard of the building complex, on condition that the building costs did not exceed the funds raised from the sale.

The only feasible way to realise the substantial spatial program involved at the set price of CHF. 580,000 was to design the house in prefabricated wooden elements.

Side elevation of the house with timber cladding, concrete lower walls and varied window openings.
© AFGH
Double-height living room with a central concrete chimney and staircase, opening to the dining area and kitchen.
© AFGH

The existence of a previous basement made excavation works superfluous and, after prefabrication, allowed the erection of building to be undertaken in record time. The end result was a cubic price of CHF. 480.

However, it should be emphasised that the search for innovative solutions was not merely motivated by the cost constraints.

Living area with a sofa beneath a long high window and a large glazed opening.
© AFGH
Kitchen with a continuous row of pale cabinets and a built-in oven.
© AFGH

The resulting architecture deliberately mirrors a conscious attitude that defies the polished superfluity so deeply ingrained in contemporary lifestyles and attempts instead to address more substantial issues.

The finished project affords the artists, who spend much of their time at home, spatial variety and complexity, and encourages both users and visitors to explore and rediscover the house anew.

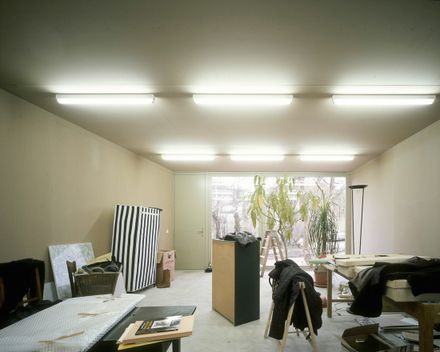

Studio interior with work tables, chairs and plants beside a glazed opening.
© AFGH
Art studio with paintings leaning against the walls and a broad open floor.
© AFGH

In this sense the house constitutes an introverted vessel, complementing the nature of artistic work whilst simultaneously creating deliberate links with the outside world.

Considerable emphasis was placed on the relation towards the surroundings.

Interior passage with a long built-in bookshelf and steps leading between different levels.
© AFGH
Double-height living room with a large window, raised landing and staircase beside the central wall.
© AFGH
Concrete chimney and fireplace at the center of the living room, with the staircase rising beside it.
© AFGH

The windows are placed in such a manner to frame Lenzburg castle, the Staufberg or the Goffersberg as if they were pictures.

In terms of urban planning, the polygonal volume and the neighboring carpenter's workshop form a courtyard around which the studios and the kitchen are orientated.

The 1 1/2-storey living room constitutes the spatial focus of the house out of which all of the rooms are elaborated around the central nucleus, containing the chimney and the staircase.

Exterior view of the timber-clad house set among leafless trees and a grassy yard.
© AFGH
The new house and neighboring carpenter’s workshop face a shared paved courtyard.
© AFGH

The house is conceived as a spatial continuum, enabling a wide variety of spatial relations. Both of the two studios can be partitioned from each other, but simultaneously can be read as an extended living room.


Timber-clad entrance façade of House Müller Gritsch, designed by Andreas Fuhrimann Gabrielle Hächler Architekt*innen ETH BSA AG.
© AFGH
Close-up of the house’s angular exterior, with pale timber cladding beside a dark gray projecting facade.
© AFGH
View of the house through bare trees and shrubs.
© AFGH
Interior view showing a tall concrete partition, a bedroom to the left and a roof opening above.
© AFGH


Elevation drawing of the house facade with its irregular roofline and windows.
Elevation drawing showing the house’s facade, openings and sloping roofline.
Elevation drawing of the house showing its facades and window arrangement.
Elevation drawing of the house with large and small window openings across the facade.


Section drawing showing the house’s interior levels, central stair and sloping roof.
Section drawing through the house showing its rooms, stairway and lower-level access.
Section drawing through the house, with a central stair between rooms on two levels.


Floor plan showing the kitchen and dining area, central stair and adjoining rooms.
Floor plan showing rooms arranged around a central stair and circulation area.
Floor plan showing the house’s rooms, central stair and compact service spaces.

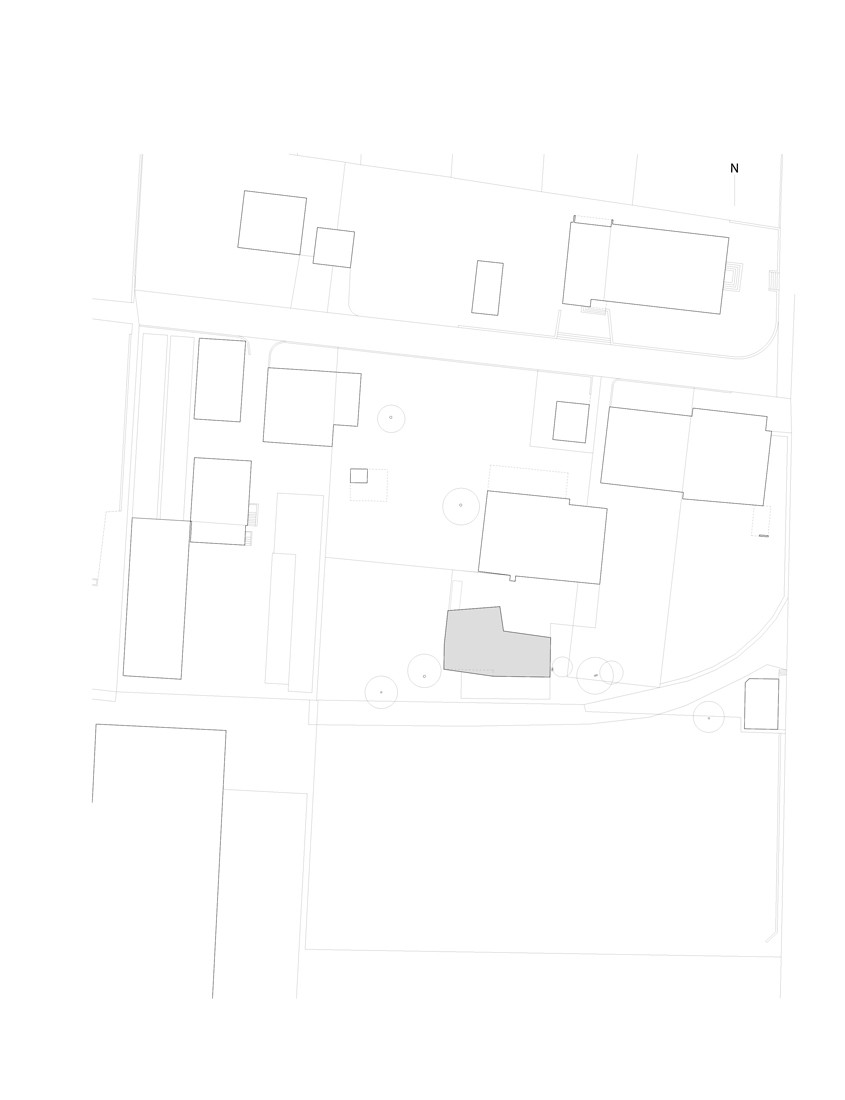

Site plan locating the house within the surrounding building complex.
Annotated site plan identifying House Müller Gritsch and nearby parcels and buildings.
