HIGH SQUARE

Francisco J. Nicolás Ruy-Díaz

ARCHITECTS
Francisco J. Nicolás Ruy-Díaz

AREA
2050.0 sqm

YEAR
2008

LOCATION
Aguilar De La Frontera, Spain

CATEGORY
Park

Text description provided by architect.

Along the course of the Route N331 in Aguilar de la Frontera (see “Adaptation of Route N331”), there were some pieces of land tagged as “public space” still undeveloped.

High Square
© Javier Orive
High Square
© Javier Orive

During the conception of the project it was found crucial to put them in charge in order to attract locals to this area of the city which has been unnoted for decades.

This particular plot lied between the avenue, which is quite steep at that point, and a narrow street that is five meters lower.

High Square
High Square
© Javier Orive

As a result the plot degenerated to waste land which was very difficult to refurbish.

According to the principles of the project, harnessing our resources to the full, it was decided to empty the plot at the height of the lower street to create a parking lot, and then build a square accessible from the avenue above it.

High Square
© Javier Orive
High Square
© Javier Orive

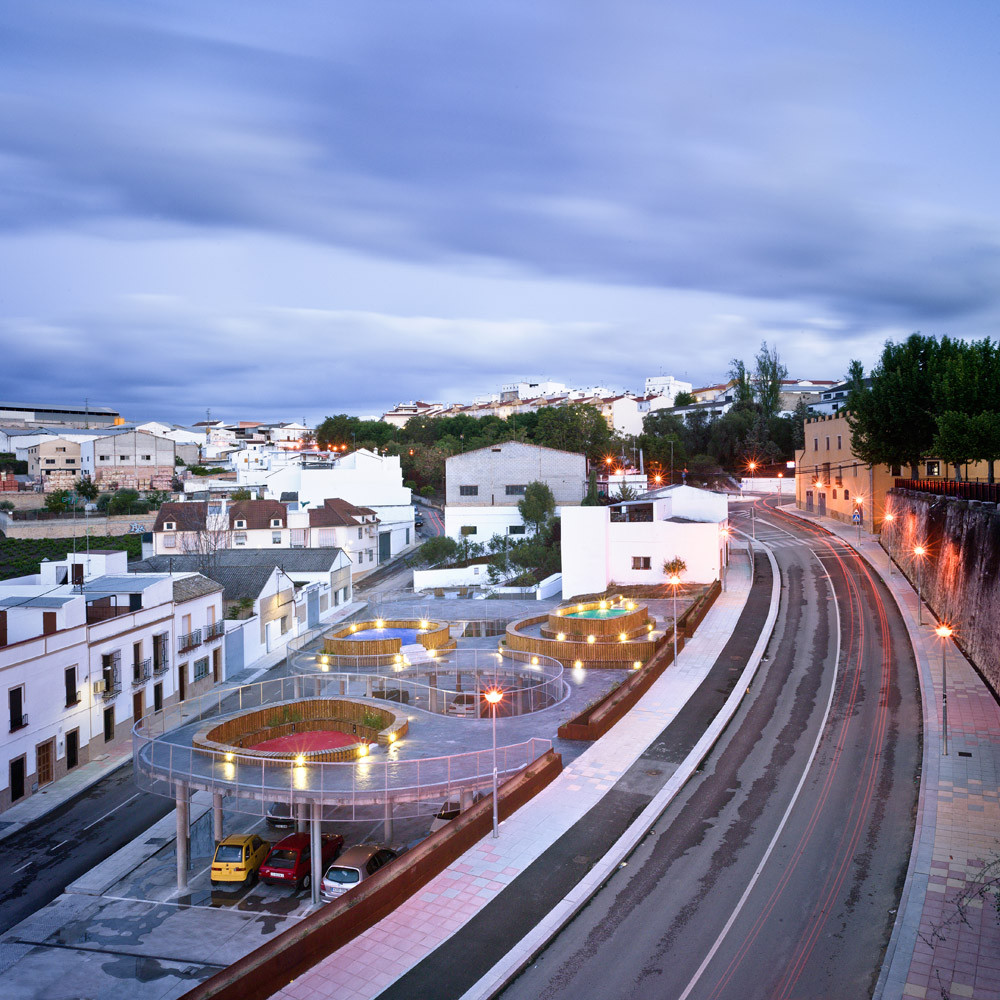

The square is compound by two platforms at different heights, to arrange the accesses from the avenue.

The platforms host a set of islands that have the same distance to the lower and upper access, thus generating an artificial topography that becomes a three-dimensional dynamic space. The steps between the platforms and islands are covered by two-side benches that include the lightning, what makes the transitions smooth and the space homogenous.

High Square
© Javier Orive
High Square
© Javier Orive

The parking at the ground level is partially covered by the square, being integrated in the urbanization by spacious sidewalks that connect it with the side streets. The lightning plays with the changing shapes of the “ceiling”, showing the configuration of the upper square by being located at the edges of the platforms and islands.


High Square
© Javier Orive
High Square
© Javier Orive
High Square
© Javier Orive
High Square
© Javier Orive


High Square
Section
High Square
Section


High Square
Plan
High Square
Plan
