112 FLATS BUILDING

Basilio Tobías

112 Flats Building
© Pedro Pegenaute

ARCHITECTS
Basilio Tobías

LOCATION
Zaragoza, Spain

CATEGORY
Apartments

AREA
18085.0 m2

YEAR
2008

PHOTOGRAPHS
Pedro Pegenaute

Text description provided by the architects.

The building is composed of two wings that hold the two main directrix of the plot.

112 Flats Building
© Pedro Pegenaute
112 Flats Building
© Pedro Pegenaute

That makes the L shape plan face south, towards the wide spaces that limit Ranillas Avenue, counting on views of the river and the north façade of the city core. The building contributes to finish an unfinished part of the city.

The building’s position in the plot established by the urban plan allows the creation of a wide open space, partially landscaped, that will make possible both a grateful use during the Expo and after it as a building of private flats.

112 Flats Building
© Pedro Pegenaute
112 Flats Building
© Pedro Pegenaute

These open spaces adjust the relationship of the building with the adjoining streets. The starting point has been to make a general shape nine floors high that emphasize the ensemble’s horizontality, according to the crossroad in which the building is constructed.

Within this shape a work on the profile has been done making two cuts in the last four floors both in the vertex of the plan and in the east end.

The central cut articulates the joining between the wings while the east end’s lower height allows for a graduating of the relationship with the street and the neighbour Health Centre.

112 Flats Building
© Pedro Pegenaute
112 Flats Building
© Pedro Pegenaute
112 Flats Building
© Pedro Pegenaute

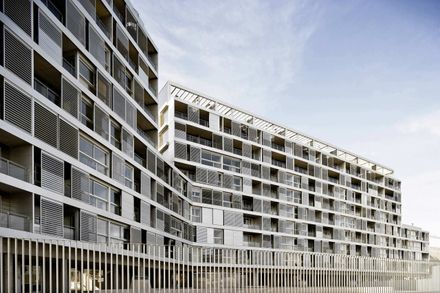

The shaping of the building comes from the relationship between the overall layout and the constructive system that defines the encircling made up of walls clad with long grey metallic ceramics panels that define a background on which longitudinal cantilever slabs have been made, provided with sliding aluminium louvres panels that make up double façades, behind which glass rails have been placed.


112 Flats Building
1st floor plan
112 Flats Building
2nd-5th floor plans
112 Flats Building
8th floor plan
112 Flats Building
9th floor plan


112 Flats Building
section
112 Flats Building

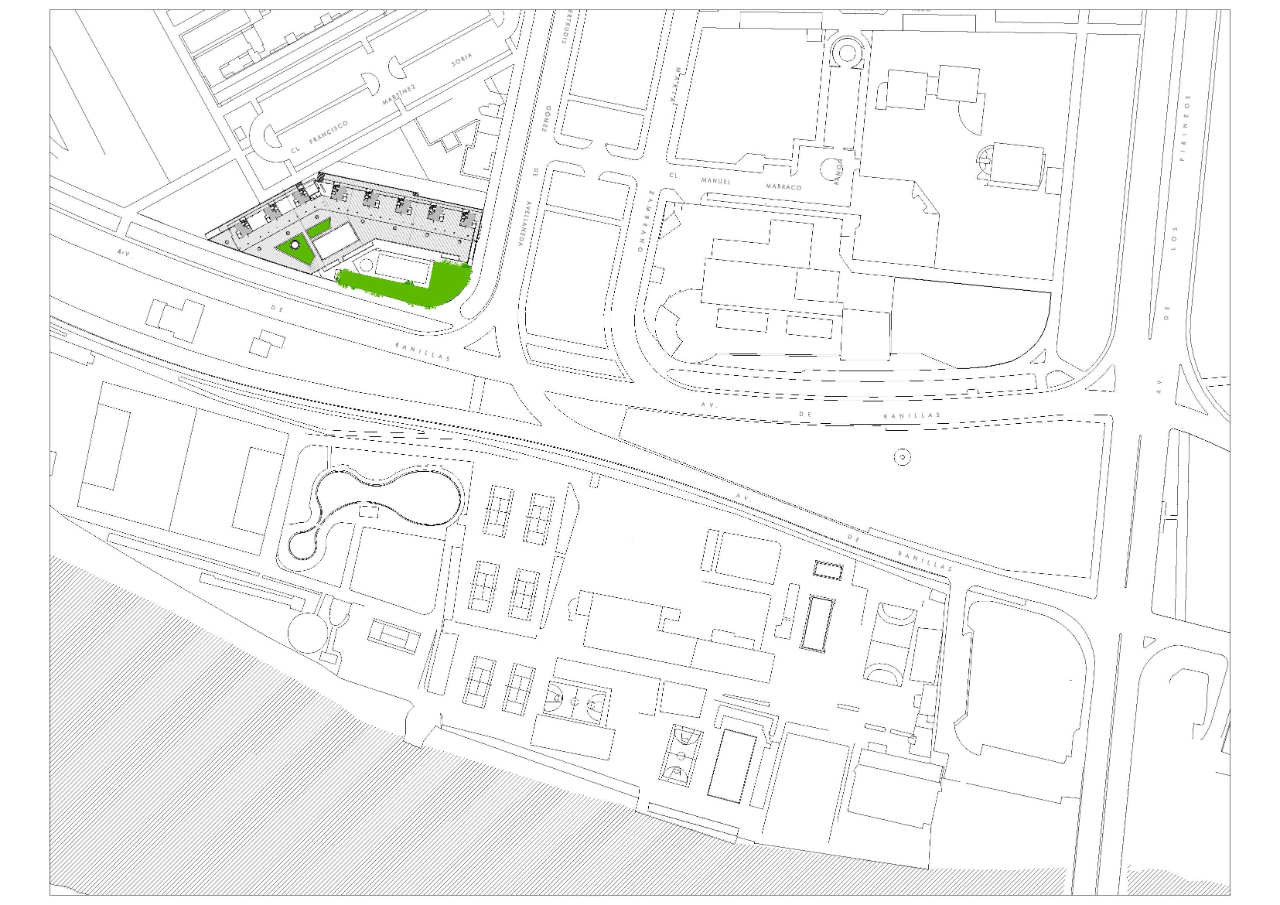

Site Plan
