BAMBOO GATEWAY

West-line studio

ARCHITECTS
West-line studio

ARCHITECTS IN CHARGE
Haobo Wei, Jingsong Xie

GRAPHICS
Martina Muratori

PHOTGORAPHS
Jingsong Xie, Martina Muratori, Haobo Wei

LANDSCAPE AREA
6125 sqm

AREA
513.5 m²

YEAR
2008

LOCATION
Zunyi, China

CATEGORY
Installations & Structures

Text description provided by architect.

The Zhuhai National Park is located in the region of Chishui, in Guizhou province, in South-West China.

Bamboo Gateway
© Jingsong Xie, Martina Muratori, Haobo Wei
Bamboo Gateway
© Jingsong Xie, Martina Muratori, Haobo Wei

The 10,000 hectares park is characterized by the unique presence of the so-called Bamboo Sea .

The park gateway has been designed by West-line studio architects as a dense assembly of vertical lines.

Bamboo Gateway
© Jingsong Xie, Martina Muratori, Haobo Wei
Bamboo Gateway
© Jingsong Xie, Martina Muratori, Haobo Wei

The gate is hidden in the Bamboo Sea and interacts with the particular weather conditions of the area (sun, thick fog, rain, wind and snow) which make the architecture unstable and flexible.

The gate aims to 'activate' the bamboo being at the same time hidden into the forest but also creating an iconic entrance for the park.

Bamboo Gateway
© Jingsong Xie, Martina Muratori, Haobo Wei
Bamboo Gateway
© Jingsong Xie, Martina Muratori, Haobo Wei

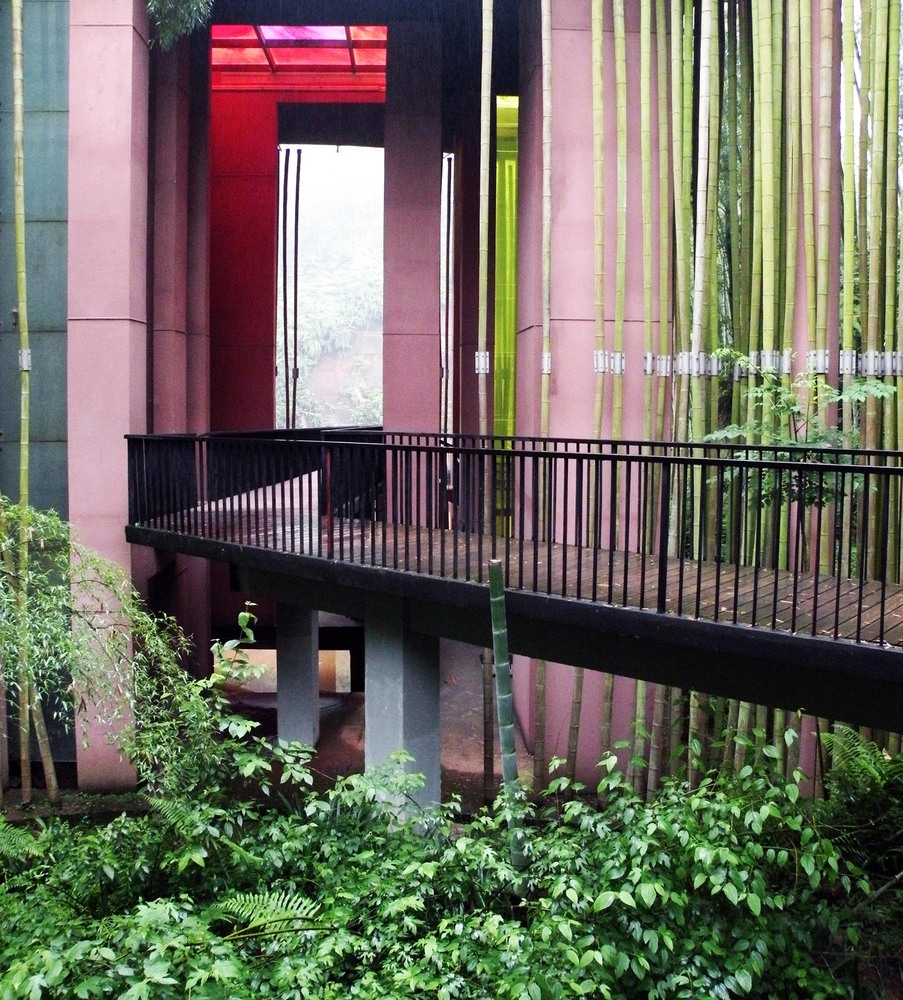

The support system is made of concrete with bamboo (10cm diameter - 11m length) hung on the roof.

Even with the presence of the glass roof, which protects the bamboo from rain, architects had to deal with problems of high humidity and fluctuations in temperature, which characterize the area of Chishui.

Bamboo Gateway
© Jingsong Xie, Martina Muratori, Haobo Wei
Bamboo Gateway
© Jingsong Xie, Martina Muratori, Haobo Wei

Because of the presence of oil inside, a mixture of water and sugar, the bamboo has been steam-treated to take out the oil and avoid decay. Since the local equipment only allows the bamboo to be steamed to a maximum length of 6m, it must be divided in two parts, 5.5m each.

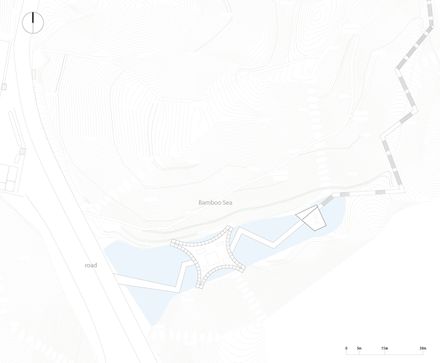

A water pond, built under the gate, helps create fog due to the differing temperatures, especially in the early morning and sunset or during winter and rainy days.

Bamboo Gateway
© Jingsong Xie, Martina Muratori, Haobo Wei
Bamboo Gateway
© Jingsong Xie, Martina Muratori, Haobo Wei

When sun and fog happen at the same time the gate looks completely embedded into the Bamboo Sea. The architecture is based on a full understanding of the character of the Bamboo Sea and aims to play with weather elements.
