SCHIECENTRALE 4B

Mei Architecten

ARCHITECTS
Mei Architecten

AREA
55000 m²

CONSTRUCTION
Besix

PROJECT MANAGEMENT
BOAG

CONSTRUCTOR
Pieters Bouwtechniek Delft

CATEGORY
Institutional Buildings

LOCATION
Rotterdam, The Netherlands

YEAR
2008

Text description provided by architect.

Schiecentrale 4b consists of a striking new structure built around the north-west sides of the old Schiecentrale building.

Schiecentrale 4b
© Ronald Tilleman
Schiecentrale 4b
© Ronald Tilleman
Schiecentrale 4b
© Ronald Tilleman

The new complex provides the media centre with various types of dwellings, for people closely involved in the audio-visual sector and people in other creative disciplines who like the port atmosphere still palpable in the area.

SUPERMARKRT

The new structure consists of around 55,000 square metres of space. Office space accounts for 7000 square metres of that.

Also included are 156 living/working units and twenty ground-accessed quayside dwellings that are 3.5 floors in height. Additional facilities include a supermarket (2000 square metres), a gym (600 square metres), 400 parking spaces in a supervised garage, and a semi-public deck 3000 square metres in area. A sun terrace, stand and playground complete the picture.

Schiecentrale 4b
© Ronald Tilleman
Schiecentrale 4b
© Ronald Tilleman

VIEW

A main feature of the project is the tall narrow building, 130 metres long and 50 metres tall, built on top of the old power plant. The 11-floor structure contains the offices and living-working units.

These are accessed from a gallery finished in stainless steel. Attached to the gallery are storage spaces, which are situated directly opposite the front doors.

All spaces on the west side of the building are fitted with glazed façades. This part of the building offers a wonderful view of the Nieuwe Maas and the harbour. The partitions of the living/working units can be opened from floor to ceiling with harmonica doors, allowing the creation of an exterior space within the building volume.

Schiecentrale 4b
© Ronald Tilleman
Schiecentrale 4b
© Ronald Tilleman

On account of the great flexibility, all technical installations in the spaces as well as on the façades are carried out as ‘assembly’. The complex exudes the character of a typical port building in which technology from the offshore and processing sectors has been integrated.


Schiecentrale 4b

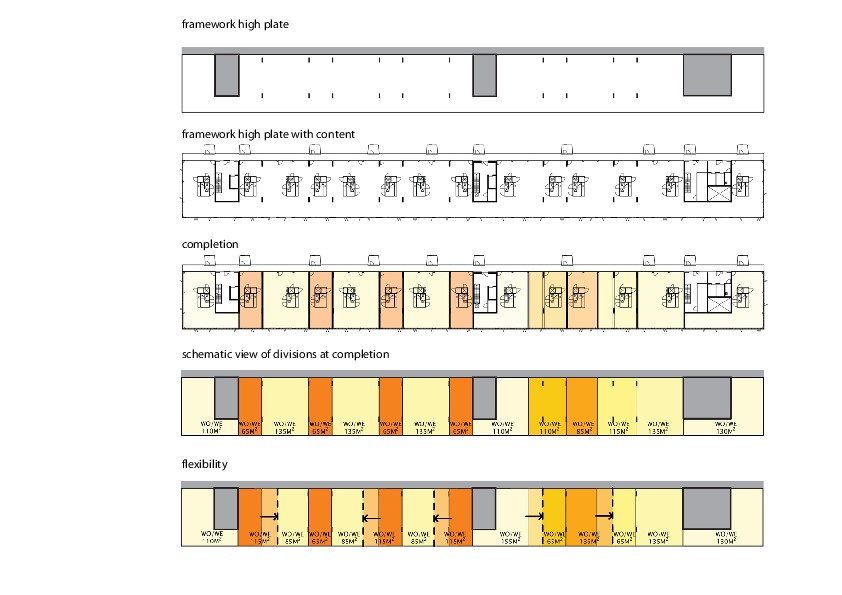

Diagram
Schiecentrale 4b
Section


Schiecentrale 4b

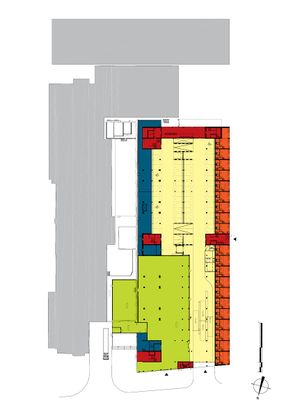

Plan
Schiecentrale 4b
Plan
Schiecentrale 4b
Plan
Schiecentrale 4b
Plan
