Arons and Gelauff

De Rokade

De Rokade’s white tower and low-rise base, seen from the front with circular windows across both façades.
© Arons en Gelauff Architecten

DE ROKADE

Arons en Gelauff Architecten

AREA
15400.0 m2

LOCATION
Groningen, The Netherlands

CATEGORY
Apartments

Text description provided by architect.

In 2003, Groningen municipal council launched a project "The Intense City" to keep the city compact by increasing the building density of districts around the Centre.

The Rokade Residential Tower Block is situated on one of the first increased density locations, and marks the corner of the Corpus den Hoorn Laan and the Sportlaan, the avenue providing access to the Hoornse Meer district.

De Rokade’s tower viewed across a road, showing its recessed glass corner and white façades dotted with circular windows.
© Arons en Gelauff Architecten
Low-angle view up De Rokade’s tower, where two white wings frame a recessed glazed corner.
© Arons en Gelauff Architecten

De Rokade is immediately adjacent to the nursing and care home, Maartenshof, which has been extensively renovated. The apartments for purchase are intended for the "younger seniors".

The building is linked to Maartenshof in a subtle way. In this way, Maartenshof can supply diverse forms of care to the buyers, without this delicate relationship being visible to the outside world.

Towers in the Netherlands often have a minimum of four dwellings per layer for budgetary reasons. This is also true of De Rokade. The building is 21 floors high and seems very slim due to the cross-shaped ground plan.

Low-angle detail of De Rokade’s pale brick façade, round windows and clock beneath the recessed tower corner.
© Arons en Gelauff Architecten
Living room with a pale sofa, glass doors to a balcony and a circular window in the far wall.
© Arons en Gelauff Architecten

The four apartments are situated in L-form around the inside angles of the tower. In this way, the dwellings combine the beautiful view with an introverted quality.

The apartments' façades, load bearing construction and installations have been made ready for three different layout possibilities.

Apartment living area with floor-to-ceiling balcony glazing, a dining table and a round window.
© Arons en Gelauff Architecten
Bedroom with a wide window overlooking the surrounding area and a circular window in the side wall.
© Arons en Gelauff Architecten

The present and future inhabitants will be able to determine their own ground plan in this way. The building is extra sustainable according to Groninger Residential Quality directives.

Instead of an expensive and dark underground parking garage, we have elevated parking to the two floors above the physiotherapists' practice accommodation.

Interior corridor lined with mailboxes beneath windows, with structural braces visible outside.
© Arons en Gelauff Architecten
De Rokade illuminated at night, its tower rising behind trees beside a lower residential block.
© Arons en Gelauff Architecten

The inhabitants reach their parking place on the first or second floor with a car lift. The garage is naturally ventilated, has daylight and a view and, with construction costs of €15.000 per parking place, is cheaper than the traditional underground box.


Second-floor plan showing the building core beside a large parking area.
Third-floor plan showing the central building core and a broad adjoining area.
First-floor plan showing the building core, parking spaces and a vehicle lift.
Diagram comparing four apartment layouts, labeled options 1, 2 and 3 and penthouse.

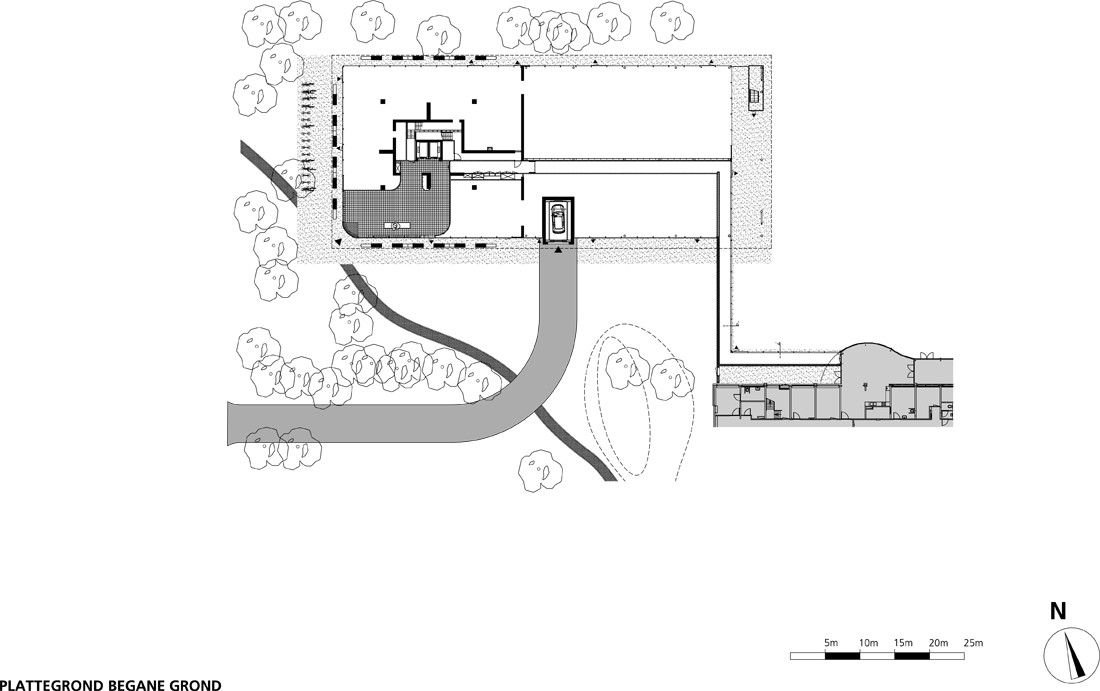

Ground-floor plan showing the building footprint, surrounding paths, trees and adjoining structures.
Site plan showing De Rokade among neighboring building footprints, roads and landscaped areas.

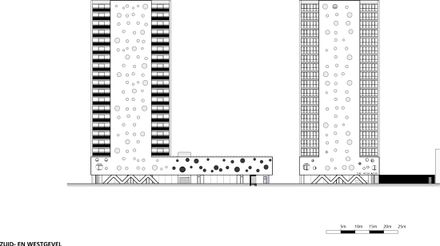

South and west elevation drawings of De Rokade, showing the tower and its lower connecting structure.
Longitudinal section drawing of De Rokade, including the tower and adjoining lower structure.


Detailed south and west elevation drawings of De Rokade, with floor levels and façade elements marked.
Concept sketch showing a cross-shaped tower plan and two massing studies.


Floor plan showing four apartment layouts arranged around a central core.

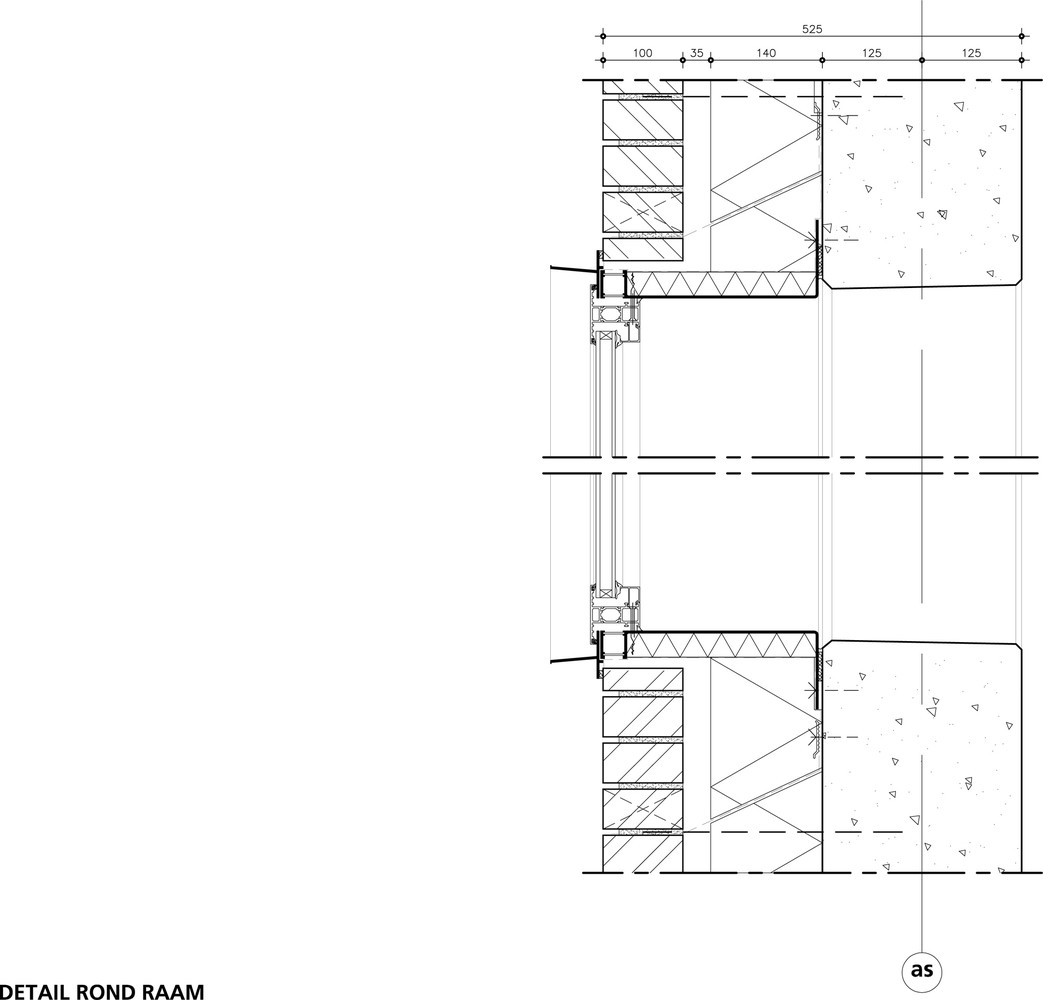

Technical window detail section showing the façade assembly and adjacent floor construction.
