BUMPS

SAKO Architects

ARCHITECTS
SAKO Architects

PHOTOGRAPHS
Misae Hiromatsu

AREA
17949.0 m2

YEAR
2008

LOCATION
Beijing, China

CATEGORY
Apartments , Commerical Architecture

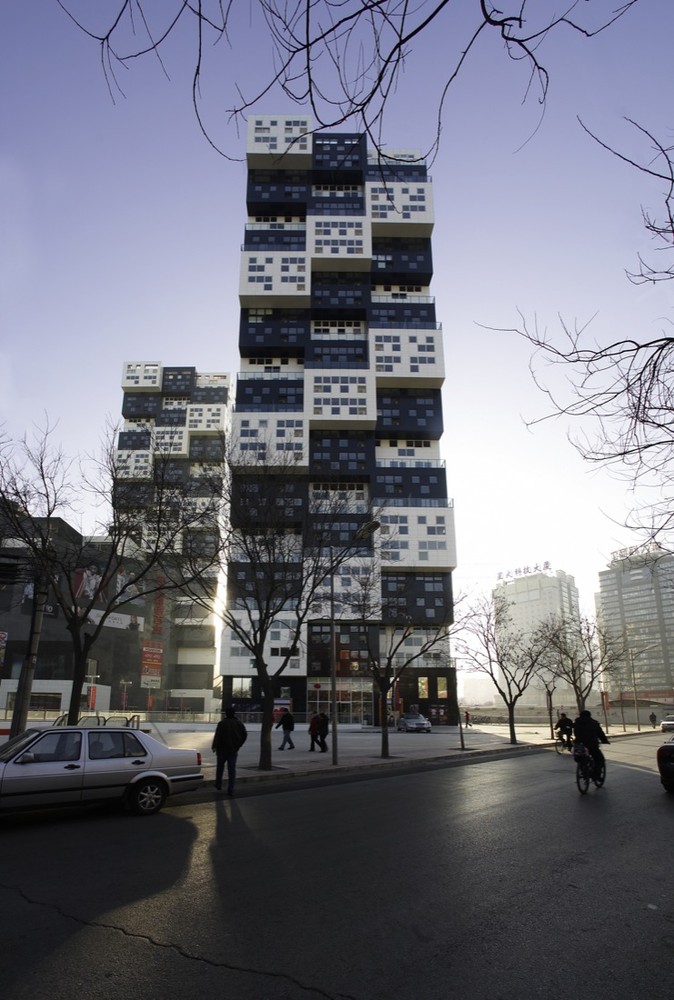

‘BUMPS in Beijing’ is an integrated project with four residences as well as a commercial building. The traditional residence buildings in China are oriented south and north.

Bumps
© Misae HIROMATSU
Bumps
© Misae HIROMATSU

With the increase in the density of the buildings, the traditional method causes buildings too close to each other and the rooms facing to the north can hardly get sunshine.

‘BUMPS in Beijing’ is rotated by 45 degrees from the north-south axis. This design can provide optimum sunshine for each building and also can short cut the way to the central business areas from different directions.

Bumps
© Misae HIROMATSU
Bumps
© Misae HIROMATSU

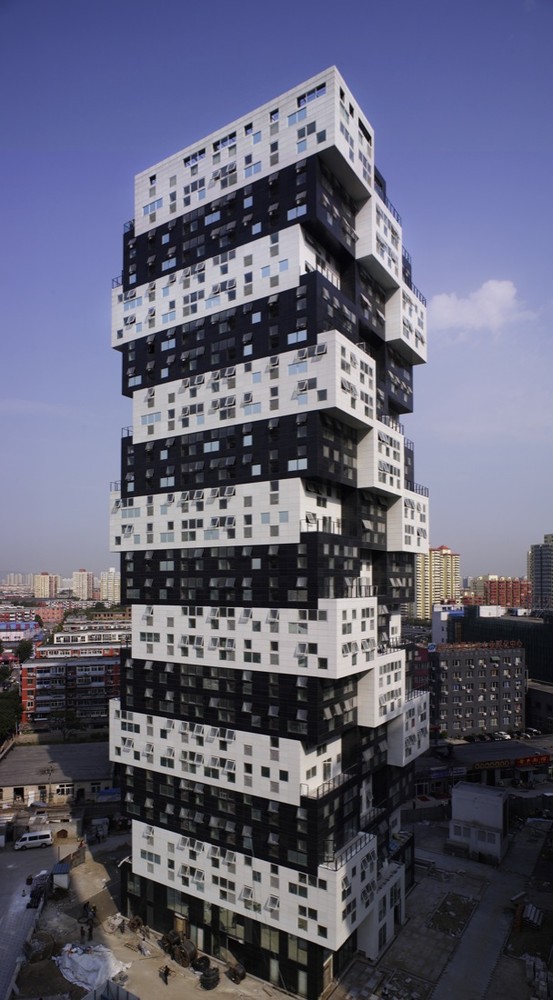

The residence buildings are 80 meters height. Every two floors are set as a unit. Every unit is staggered by 2 meters horizontally. Whole 80m’s building is repetitions of these units.

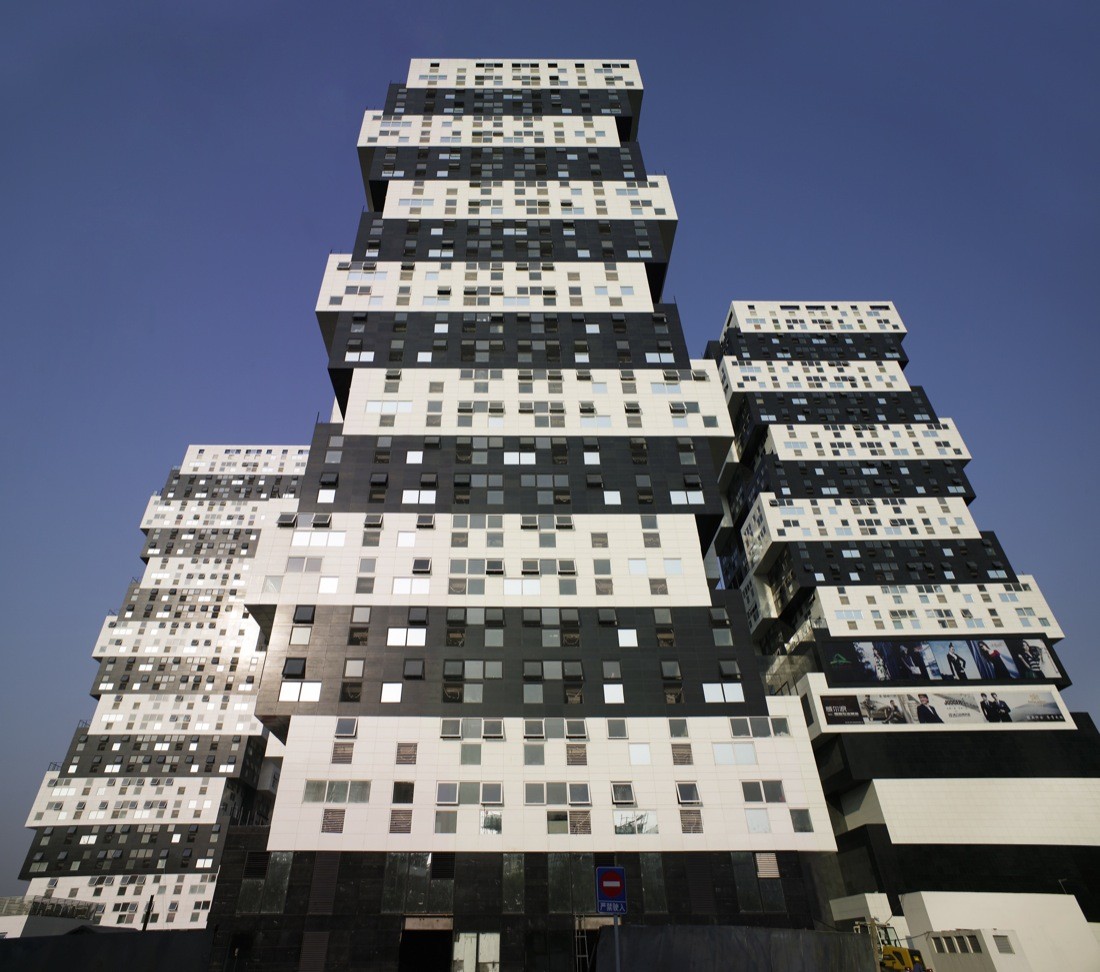

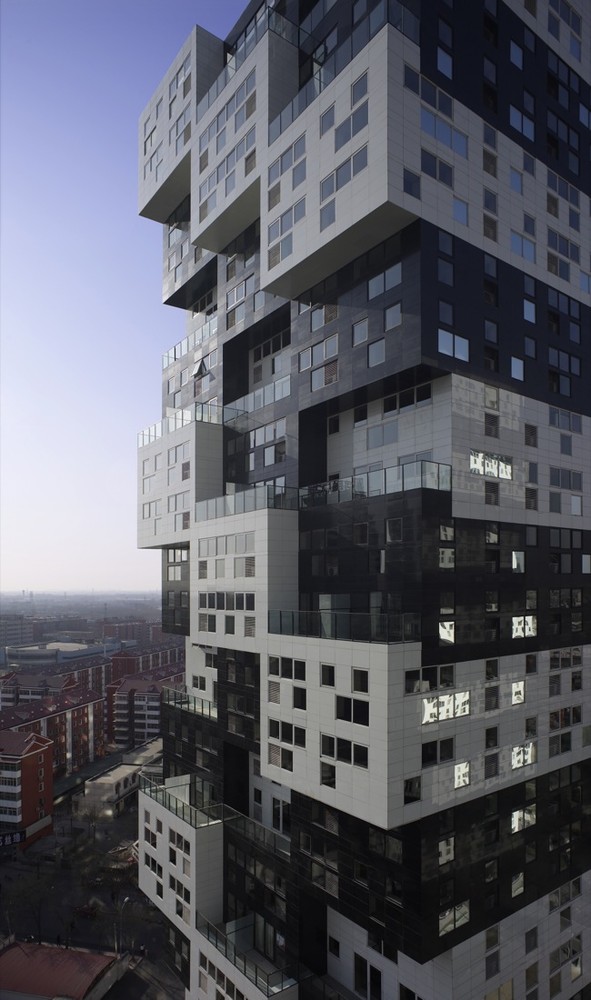

The setback areas are used for terraces. Interlaced black and white units highlight the concave-convex façade and show a clear lineament of the building. All the windows are 1 meter square.

Bumps
© Misae HIROMATSU
Bumps
© Misae HIROMATSU

Randomly placed windows weaken the existence of all pillars and beams. Therefore, the appearance of the buildings look like stacked by lots of small black and white ‘boxes’ together.


Bumps
© Misae HIROMATSU
Bumps
© Misae HIROMATSU
Bumps
© Misae HIROMATSU
Bumps
© Misae HIROMATSU
Bumps
© Misae HIROMATSU
Bumps
© Misae HIROMATSU
Bumps
© Misae HIROMATSU
Bumps
© Misae HIROMATSU


Bumps
© Misae HIROMATSU
Bumps
© Misae HIROMATSU
Bumps


Bumps
Plan
Bumps
Plan


Bumps
Elevation
