QUINGPU PEDESTRIAN BRIDGE

Ca-design

AREA
1000.0 m2

YEAR
2008

ARCHITECTS
Ca-design

LOCATION
Shanghai, China

Quingpu Pedestrian Bridge
Courtesy of CA-DESIGN
Quingpu Pedestrian Bridge
Courtesy of CA-DESIGN

Text description provided by architect.

Learning from the bridges of the great water town of ZhuJiaJiao, or those from the delicate gardens in Suzhou, we decided to link both sides of the 50 meters wide river with a bent path.

Quingpu Pedestrian Bridge
Courtesy of CA-DESIGN
Quingpu Pedestrian Bridge
Courtesy of CA-DESIGN

The bent axis responds to different access conditions and visually adapts to the surroundings.

Our strategy of borrowing from local historical references and other variables of the site, together with the objective of revealing the structural performance of the bridge, will generate the final form of the project.

The load-span relation recommends the use of the metal truss. In order to resist the strong torsion stress associated with the support-less winding shape of the bridge, we activate structurally all the sides of its distorted volume.

Quingpu Pedestrian Bridge
Courtesy of CA-DESIGN
Quingpu Pedestrian Bridge
Courtesy of CA-DESIGN
Quingpu Pedestrian Bridge
Courtesy of CA-DESIGN

Both shores of the river have a contrasting character. This fact is emphasized via designing asymmetric constraints for the structure.

The bridge has a simple support on the transversal ramp that faces the rapid and narrow street at the northern access.

Quingpu Pedestrian Bridge
Courtesy of CA-DESIGN
Quingpu Pedestrian Bridge
Courtesy of CA-DESIGN

On the contrary, there is a stiff connection with the longitudinal ramp that connects to the slow and large southern square. The elevation of the bridge adapts itself to the resulting asymmetric diagram of bending momentum.

Trying to minimize the amount of different steel sections, we design a pattern that becomes denser according to the diagram of shear stress.

Quingpu Pedestrian Bridge
Courtesy of CA-DESIGN
Quingpu Pedestrian Bridge
Courtesy of CA-DESIGN

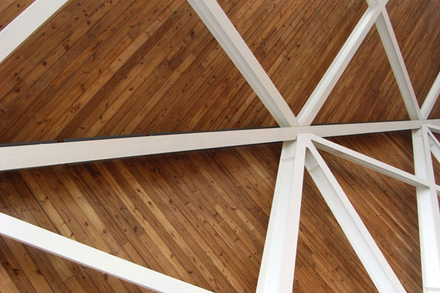

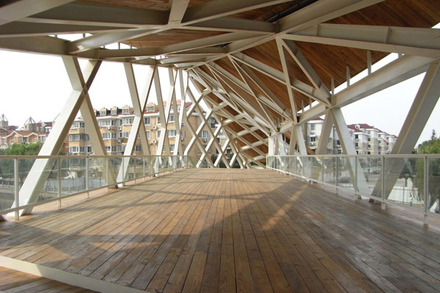

As other samples from Chinese tradition, we understand that the bridge should provide for a dedicated space on the river, a room over the water, more than merely acting as an engineering device that solves a communication problem. The faces of both the roof and deck are covered with wooden skins.

The contrast with the exposed steel profiles makes the structure appear lighter. Furthermore, the sloped ceiling serves as a large reflector for the artificial lighting that is embedded into the handrails. During the day as well, the inner surfaces will trap the glittering reflections of the sun on the water.

Quingpu Pedestrian Bridge
Courtesy of CA-DESIGN
Quingpu Pedestrian Bridge
Courtesy of CA-DESIGN
Quingpu Pedestrian Bridge
Courtesy of CA-DESIGN


Quingpu Pedestrian Bridge
Quingpu Pedestrian Bridge
Quingpu Pedestrian Bridge


Quingpu Pedestrian Bridge
