Guillermo Hevia Arquitectos, SpA

Palapa

Palapa
Courtesy of Guillermo Hevia H.

PALAPA

GH+A | Guillermo Hevia

ARCHITECTS
GH+A | Guillermo Hevia

AREA
450.0 m2

YEAR
2009

LOCATION
Monterrey, Mexico

CATEGORY
Hospitality Architecture

Text description provided by architect.

The Project “Palapa” is located in the city of Monterrey, Mexico, and is planed as a place of leisure time for the workers of an industrial complex in the outskirts of the city.

Palapa
Courtesy of Guillermo Hevia H.
Palapa
Courtesy of Guillermo Hevia H.

“La Palapa”, (space for BBQs), persist of a covered space with service rooms and a kitchen for social activities and events. Facing these conditions, the project poses in the floor plan a 20 x 20 m square, which achieves a free central space for flexible uses, putting the service rooms on the perimeter.

The building consists out of concrete parts, piling up in a configuration which assumes gravity like an expressive power of the constitution of the space, capturing the constructive conditions of the material, to make its virtue a possibility of the architecture.

Palapa
Courtesy of Guillermo Hevia H.
Palapa
Courtesy of Guillermo Hevia H.

The building works with straight separated parts, which, in its tonalities, determine a sculpture in structural and architectonical equilibrium.In first place, three walls, two pylons and one service volume are the supporting structure of the building.

Those elements define an appropriate answer in their geometrical assembly of the floor plan, and at the same time, confine the space as a semi-open area.

Palapa
Courtesy of Guillermo Hevia H.
Palapa
Courtesy of Guillermo Hevia H.

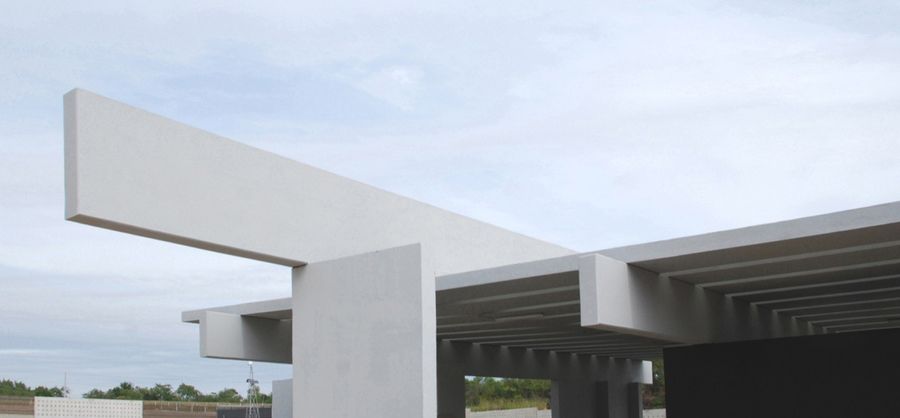

A roof made out of prefabricated concrete panels is supported by three beams, resting on the basic elements, and, at the time, being suspended by a fourth superior beam, which allows to liberate the internal space, defining a free floor with flexible use and great transparency.

The work assumes the gravity and materiality as a round architectonical expression, in which each element shows in a simple manner its structural quality in between the whole ensemble.

Palapa
Courtesy of Guillermo Hevia H.


Palapa

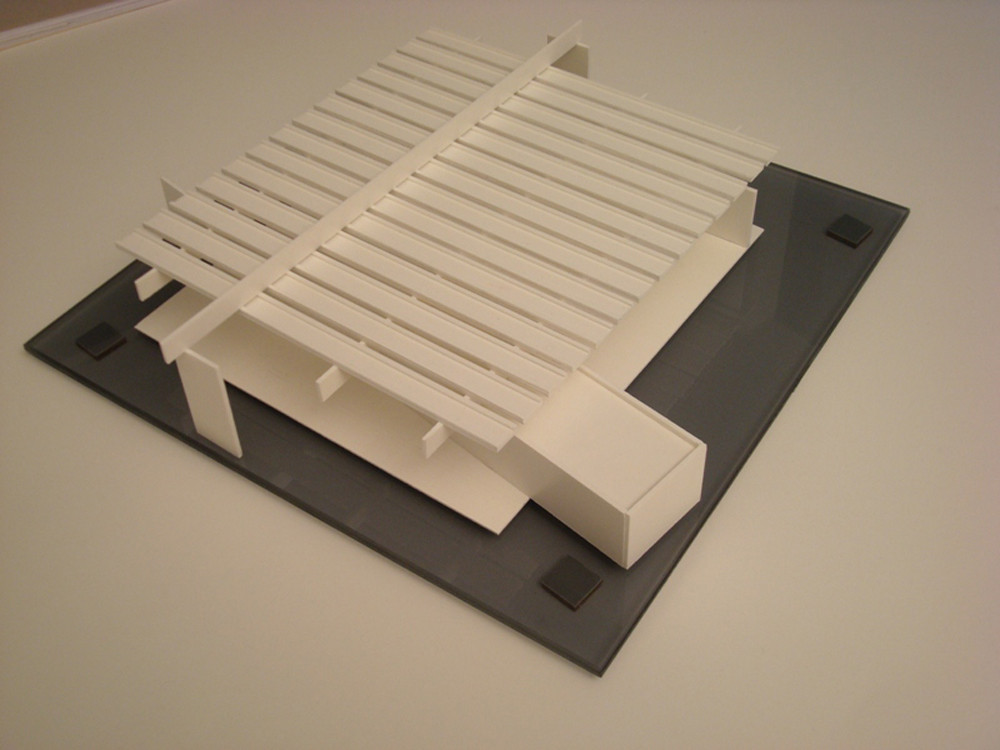

model 01
Palapa

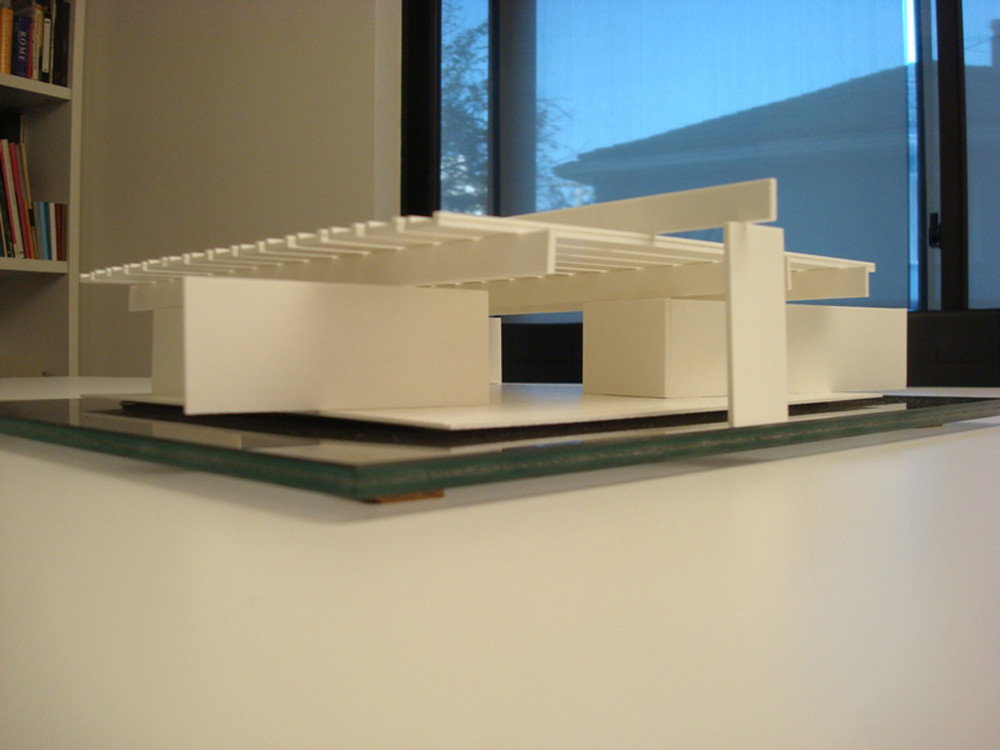

model 02
Palapa

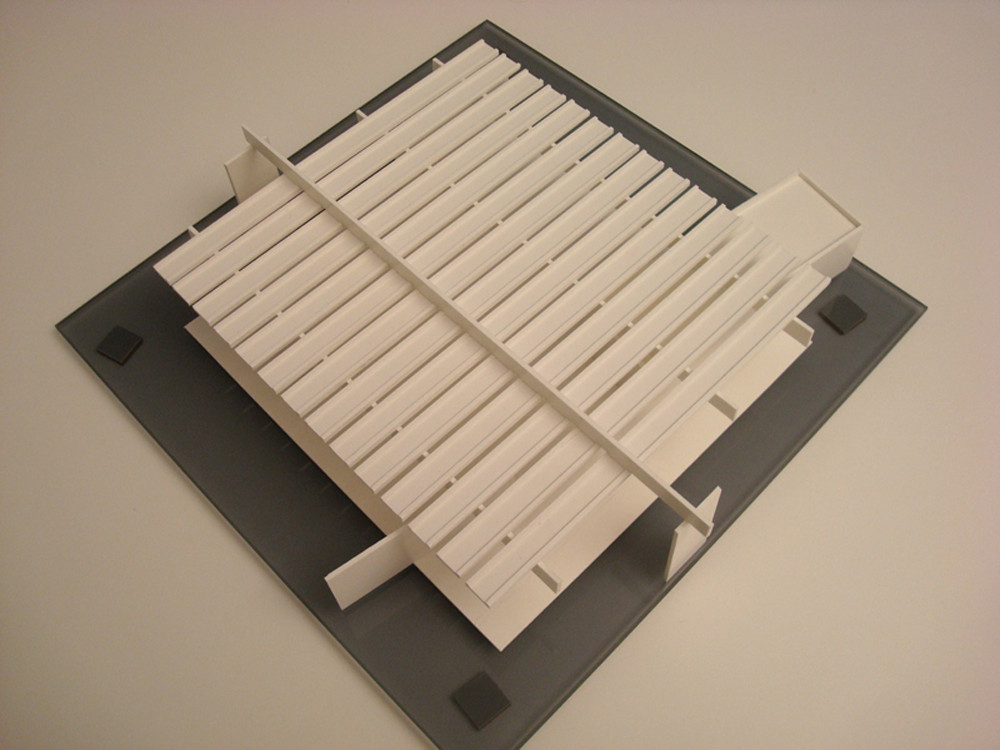

model 03


Palapa

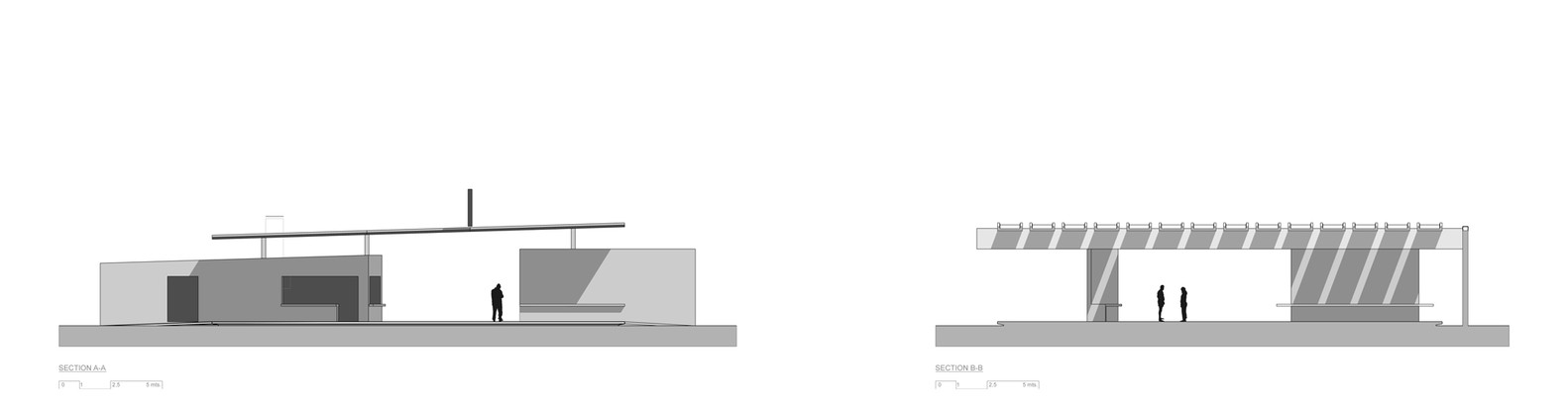

sections
Palapa

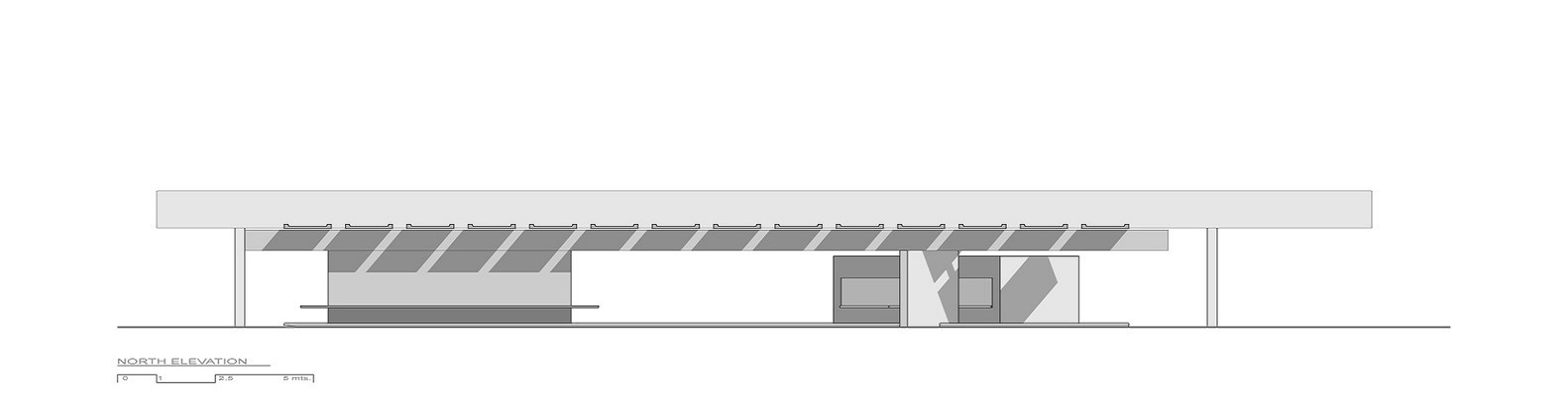

elevation


Palapa

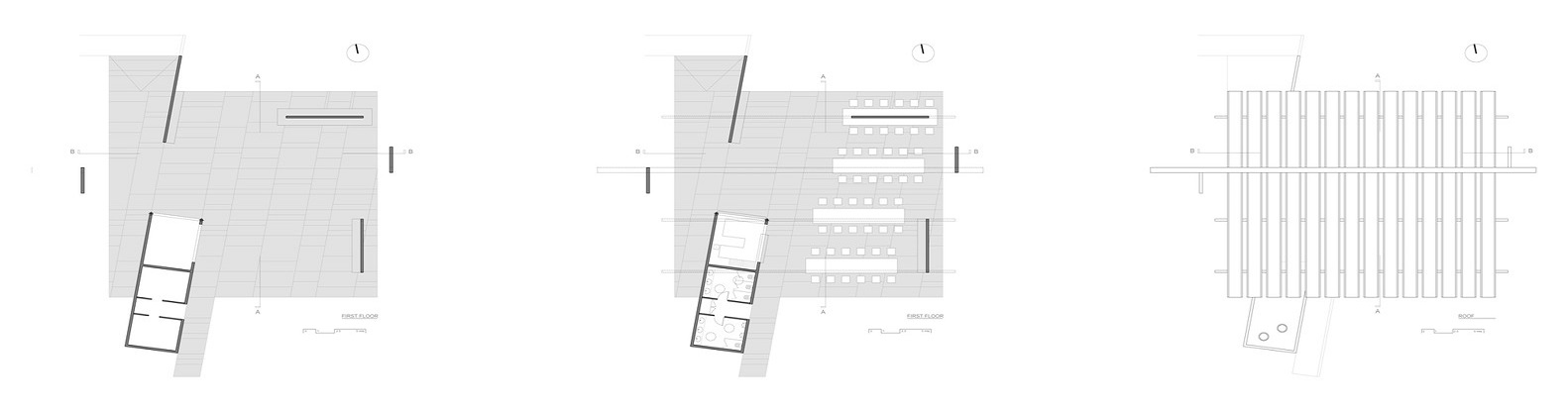

floor plans


Palapa

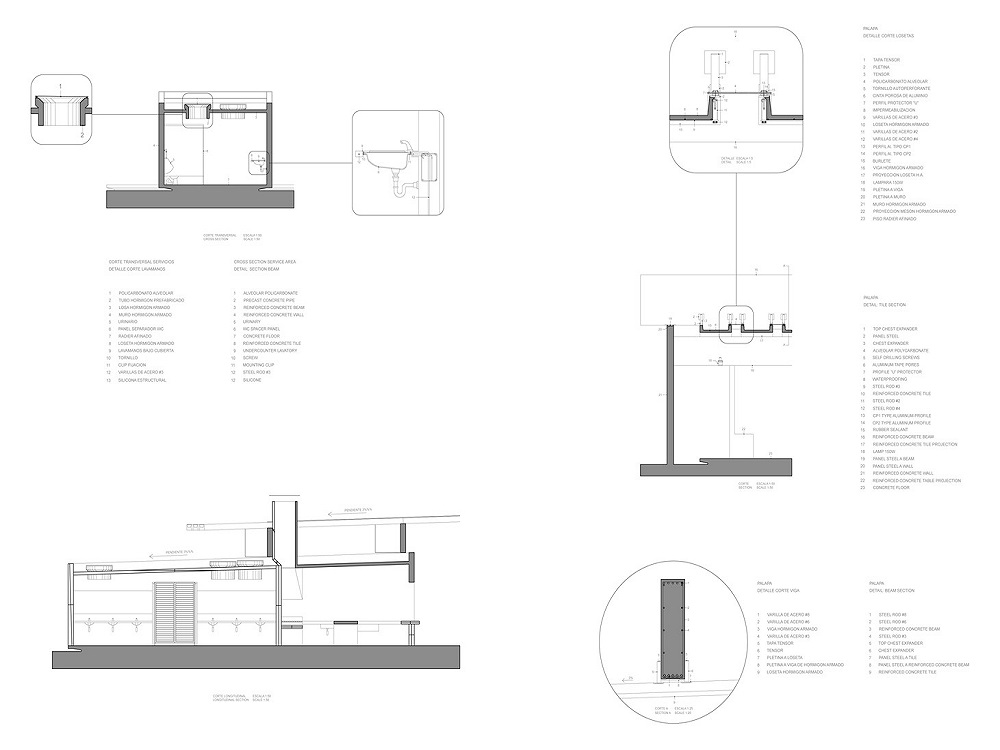

details
Palapa

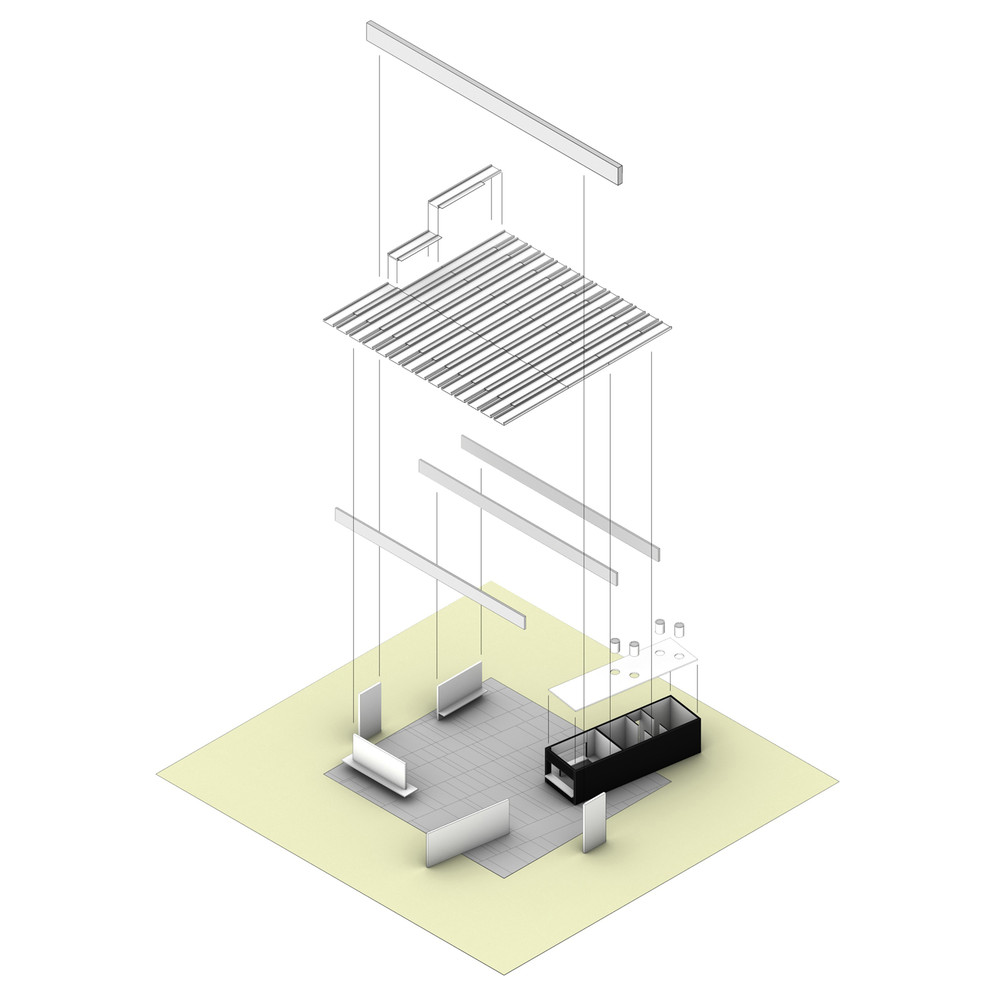

axon
