JJP Architects & Planners 潘冀聯合建築師事務所

Neo Solar Power Corporation

Neo Solar Power Corporation
Courtesy of jjpp

NEO SOLAR POWER CORPORATION

J. J. Pan & Partners

ARCHITECTS
J. J. Pan & Partners, Architects & Planners (JJPP)

AREA
27000.0 m2

YEAR
2009

LOCATION
Dong District, Taiwan (ROC)

CATEGORY
Institutional Buildings

Text description provided by architect.

The façade takes up the metaphor of transferring light energy to electric power with solar panels to achieve a uniqueness of the contour.

Neo Solar Power Corporation
Courtesy of jjpp
Neo Solar Power Corporation
Courtesy of jjpp

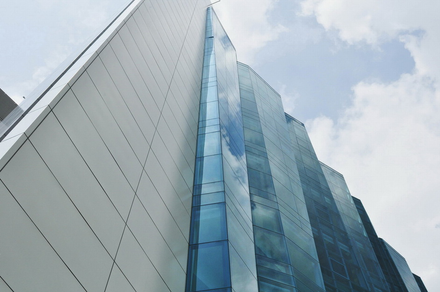

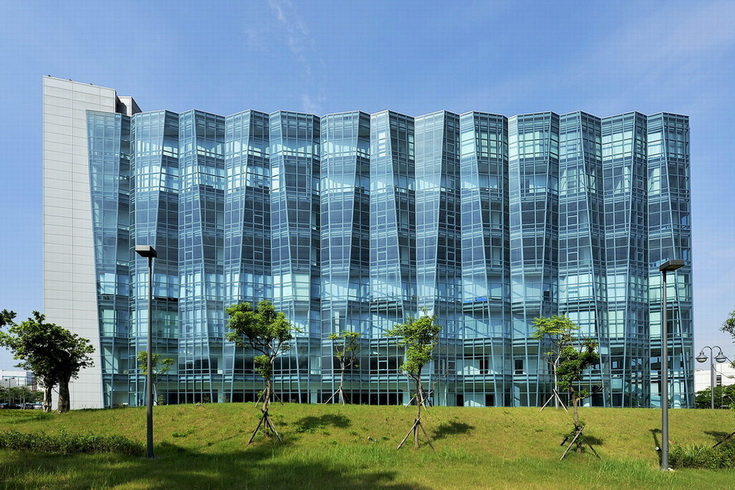

The exterior walls are designed as a continuous wave of glass panels in the concept of “starting-folding-concluding“ to express the design ideas of “undulation, transference.”

Half-unit glass and aluminum curtain walls are sectioned into 8 trapezoid units, finished with over 350 glass-cutting patterns. The perimeter of each floor varies with the advancing and recessing surface walls, and the trimming steel beam curving with the floor board serves as the fixed end of the curtain walls.

Neo Solar Power Corporation
Courtesy of jjpp
Neo Solar Power Corporation
Courtesy of jjpp

The ground floor of this north-oriented building is planned with high-ceilinged foyer and an auditorium, with a staff restaurant curtained with panoramic glass walls facing the central green belt.

The 2nd to 7th floors are research spaces, and the 8th floor is executive offices. The 5-story plant on the south is built with damping diagonal bracing structure.

Neo Solar Power Corporation
Courtesy of jjpp
Neo Solar Power Corporation
Courtesy of jjpp

The heightened basement air raid shelter and garage are planned to meet the parking needs for phase II expansion in the future.

To present a clear-cut, light, and transparent look of the building, and to induce greenery indoors, the large glass exterior walls of the office building are complemented with movable vertical blinds to shield off light from the north.

The alcove spaces formed alongside the exterior wall is employed as R&D discussion and lounging spots, to effectively utilize the irregular spaces.

Neo Solar Power Corporation
Courtesy of jjpp
Neo Solar Power Corporation
Courtesy of jjpp


Neo Solar Power Corporation
Plan
Neo Solar Power Corporation
Plan
Neo Solar Power Corporation
Relational Plan


Neo Solar Power Corporation
Glass Unit
Neo Solar Power Corporation
Glass Unit


Neo Solar Power Corporation
Concept
Neo Solar Power Corporation
Concept


Neo Solar Power Corporation
Facade
Neo Solar Power Corporation
Diagram
