OFFICE IN RAGUSA

Architrend Architecture

CATEGORY
Offices

LOCATION
Ragusa, Italy

ARCHITECTS
Architrend Architecture

AREA
2200.0 m2

YEAR
2008

PHOTOGRAPHS
Umberto Agnello

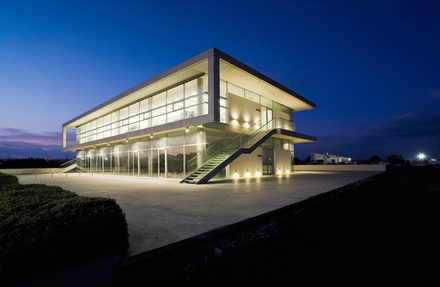

Office In Ragusa
© Umberto Agnello

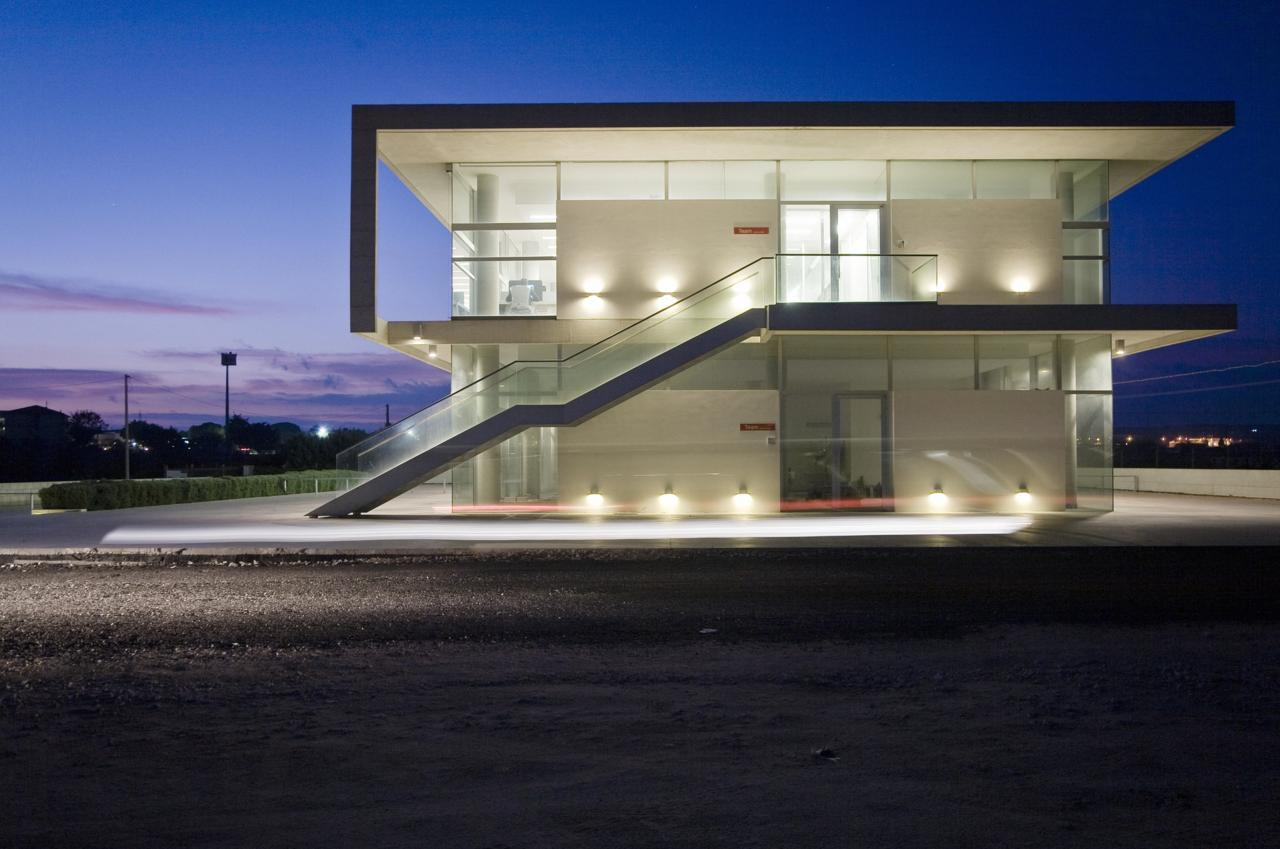

Office In Ragusa
© Umberto Agnello

Text description provided by architect.

Made of reinforced concrete and covered in glass, this building is a strong character tends to get minimal, with the least formal means, the ultimate functional outcome.

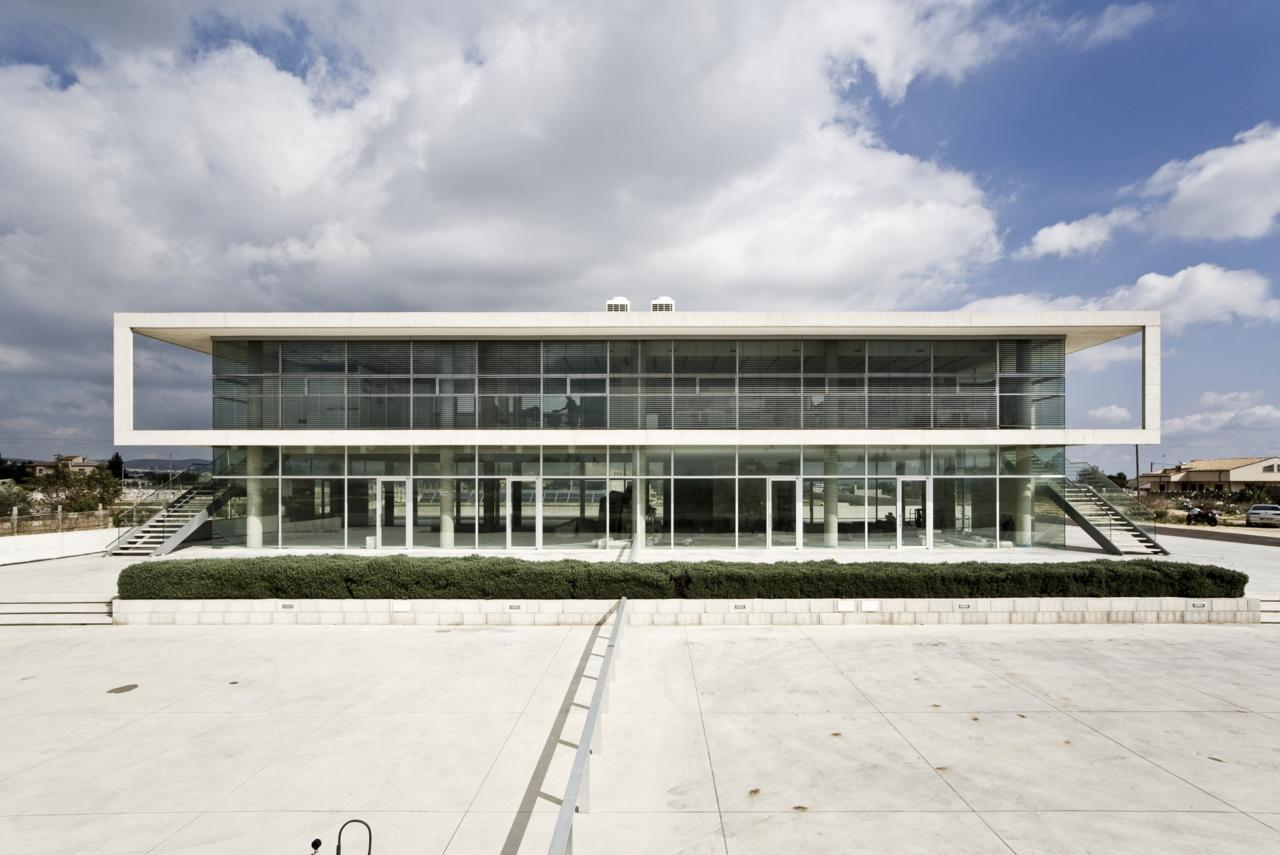

Office In Ragusa
© Umberto Agnello
Office In Ragusa
© Umberto Agnello

The project is located in an area of urban sprawl on the outskirts of Ragusa. The building has a large frame on the first floor, concrete-face view of 50 cm height, placed flush with the external shock defines the volume of the first floor, creating a gap with the glass facades of the ground floor.

Office In Ragusa
© Umberto Agnello
Office In Ragusa
© Umberto Agnello

Wide overhangs to protect the entire perimeter of the building's windows from the sun, the curtain walls are made of aluminum frames with thermal and solar control double glazing with argon gas, along with a system of exterior blinds in aluminum slats, electrically adjustable , maximizing the contribution of solar radiation.

Office In Ragusa
© Umberto Agnello
Office In Ragusa
© Umberto Agnello

A system made up of photovoltaic panels, installed in an open area of the lot, by the power of 50KW, fully complies with the building's energy requirements.

Office In Ragusa
© Umberto Agnello
Office In Ragusa
© Umberto Agnello

All system components are managed by the building of a Vantage home automation system that acts on the sensors for the lights inside and outside, on the opening or closing the curtains to adjust the intensity of daylight and the alarm system.

The water of rainfall collected from roofs is collected in a special reserve and reused for irrigation of green.

Office In Ragusa
© Umberto Agnello


Office In Ragusa

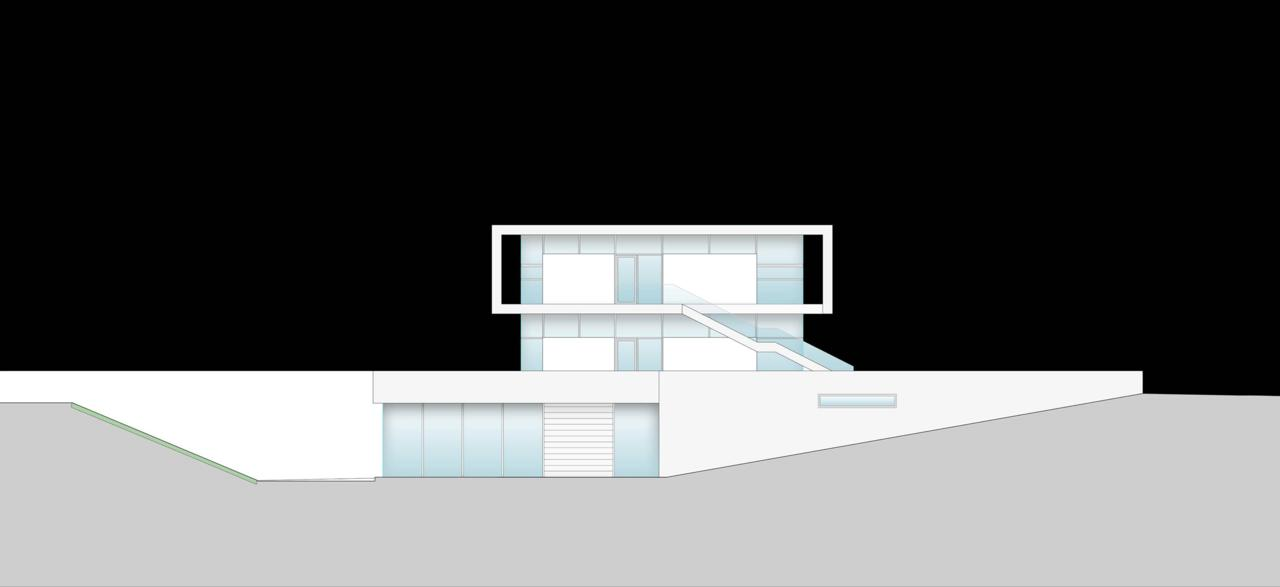

Elevation
Office In Ragusa
Elevation
Office In Ragusa
Elevation


Office In Ragusa
Plan

Office In Ragusa
Plan
