JURANDA HOUSE

Apiacás Arquitetos

ARCHITECTS
Apiacás Arquitetos

ARCHITECTS IN CHARGE
Anderson Freitas, Juliana de Araujo Antunes

STRUCTURAL ENGINEERING
Maria de Lourdes Mesquita

COLLABORATORS
Acácia Furuya, Bibiana Ferreira, Pedro Mauger

PHOTOGRAPHS
Pregnolato & Kusuki Estúdio Fotográfico

YEAR
2008

LOCATION
Sao Paulo, Brazil

CATEGORY
Houses

Text description provided by architect.

In designing our house on an urban plot with dimensions of 6 x 24m, located in Rua Juranda, Vila Beatriz, São Paulo, we were forced to establish certain criteria for the construction of a house of approximately 150 sqm.

Juranda House
© Pregnolato & Kusuki Estúdio Fotográfico
Juranda House
© Pregnolato & Kusuki Estúdio Fotográfico

As the terrain of the plot had an accentuated slope, the bottom of the plot being over three and a half metres below the pavement level, the building was distributed over half levels, separated by a three storey void which contains the staircase access to the floors.

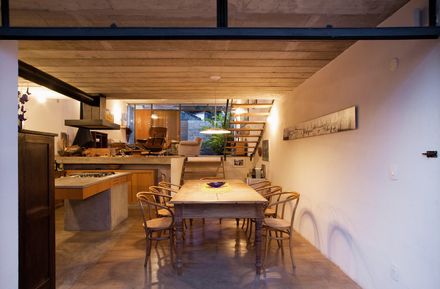

This void organises the spaces of the house: living room, dining room and kitchen on the ground floor as well as three bedrooms, two bathrooms, office and a 'deck' on the upper floors. The house is built up to the edges of the plot and consequently it is lit and ventilated from the front and rear.

Juranda House
© Pregnolato & Kusuki Estúdio Fotográfico
Juranda House
© Pregnolato & Kusuki Estúdio Fotográfico

The idea was to make the house as transparent as possible, in a way that would establish a relationship with the external areas.

In order make this viable, we designed the openings at the front and rear of the house to be on the same axis and to be three metres wide. When open, the glazing elements slide behind the walls uniting the internal and external spaces.

Juranda House
© Pregnolato & Kusuki Estúdio Fotográfico
Juranda House
© Pregnolato & Kusuki Estúdio Fotográfico

We sought to execute the construction work in the most economical manner possible. From the start, we tried to avoid as far as possible any kind of earth moving, which is always an onerous part of the budget of any construction.

For this reason, all of the slabs, including those on the ground floor are supported on the structure of the lateral walls of the house.

Juranda House
© Pregnolato & Kusuki Estúdio Fotográfico
Juranda House
© Pregnolato & Kusuki Estúdio Fotográfico

The house is given structure by steel reinforced concrete cast on site with the slabs in prefabricated concrete remaining visible after construction.

All of the brickwork is in ceramic blocks covered with a white render.

Juranda House
© Pregnolato & Kusuki Estúdio Fotográfico
Juranda House
© Pregnolato & Kusuki Estúdio Fotográfico

We opted to put all of the house's infrastructure on the lowest floor, making use of the nature slope, this includes: a water cistern, boiler and sewage treatment system.

Overall, this is a project that tried to limit the dimensions, to the strictly necessary, of areas such as bedrooms and bathrooms so that the communal spaces would be more generous even within this narrow plot, promoting communal living, preferably with friends.


Juranda House
© Pregnolato & Kusuki Estúdio Fotográfico
Juranda House
© Pregnolato & Kusuki Estúdio Fotográfico
Juranda House
© Pregnolato & Kusuki Estúdio Fotográfico
Juranda House
© Pregnolato & Kusuki Estúdio Fotográfico
Juranda House
© Pregnolato & Kusuki Estúdio Fotográfico
Juranda House
© Pregnolato & Kusuki Estúdio Fotográfico


Juranda House
Corte AA
Juranda House
Corte BB


Juranda House
Planta 0
Juranda House
Planta 1
Juranda House
Planta Cobertura


Juranda House
Croquis 3
Juranda House
Croquis 4
Juranda House
Implantação
