LA MOLA CONFERENCE CENTRE

B720 Fermín Vázquez Arquitectos

LOCATION
Barcelona, Spain

CATEGORY
Community

YEAR
2008

AREA
17400.0 m2

Text description provided by architect.

La Mola Hotel and Conference Centre is located on a site adjacent to the new El Prat Golf Club, in the natural reserve of Sant Llorenç de Munt I l'Obac (Terrassa). The project involves the construction of a hotel complex of 186 rooms with complementary services, meeting and convention spaces, auditoriums, multipurpose rooms and other services related to health and wellness (spa area, fitness, etc.).

La Mola Conference Centre
© Duccio Malagamba
La Mola Conference Centre
© Duccio Malagamba

To avoid the strong visual impact that a complex of such dimensions could cause in this environment, it has been chosen to split the program into four prismatic buildings which don’t exceed in height the surrounding forests, thereby a better implementation and integration is achieved.

Two of the volumes house the rooms settled out longitudinally along a central corridor on three floors above ground. There is also a living room in the entrance and several basements for complementary services (kitchens, spa, etc.).

La Mola Conference Centre
© Duccio Malagamba
La Mola Conference Centre
© Duccio Malagamba

The rooms on the south facade have balconies and a sunscreen formed by some mobile slides of perforated sheet designed as a large coloured curtain. Their tones and volumes are blending with the colour of the existing vegetation in an intentional game from an area located between a forest and the "artificial nature" of the golf course.

A third prismatic volume, similar but of greater height between floors, hosts the conventions centre. Inside there are several auditoriums, multipurpose rooms of varying size and multiple meeting spaces around a large open lobby, also with a ground floor directly communicated with the outside world, projecting uses (as a conference centre) to the outdoors .

In a central position between these three volumes, there is a fourth building housing the common areas that function as an access core and general distributor of the complex. A sunshade formed by corten steel plates provides protection and privacy to its large glass facade at the same time evoking the landscape around it, thus becoming the main reference point for intervention.

La Mola Conference Centre
© Duccio Malagamba
La Mola Conference Centre
Plan 00

IMPLEMENTATION AND LANDSCAPE

La Mola Hotel and Conference Centre was proposed as an architectural design that respects the natural environment in which it is situated. Because of this, it was given special attention to the layout of the different volumes built.

Thus, most of the trees of the place remained in its initial location and a lower part of them were transplanted. Furthermore, the plot was populated with trees to form a garden where irrigation is resolved entirely by the recycling of gray water generated in the centre.

La Mola Conference Centre
Plan 01
La Mola Conference Centre
Plan 02

Extensive areas of glass facades allow maximum use of natural light in winter while in summer the adjustment of various solar control systems prevents the overheating of the stays.

Moreover, the system allows free cooling in a controlled way the favourable conditions of the outside air, thus reducing the need of artificial air conditioning. Solar panels located on the roofs of two buildings help to reduce energy consumption for the generation of hot water.

La Mola Conference Centre
Plan 03
La Mola Conference Centre
Plan 04

The predominant use of concrete, combined with pine wood closures and decks gardened, provides a whole unit making it a peaceful space, integrated into its surroundings.

The outdoor areas have been addressed by creating paths and landscaped areas of rest and meeting that interconnect with each one of the buildings.

La Mola Conference Centre
Plan 05


La Mola Conference Centre
Underground Floor Plan 01
La Mola Conference Centre
Underground Floor Plan 02
La Mola Conference Centre

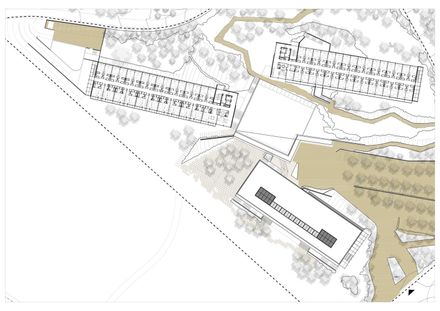

Site Plan


La Mola Conference Centre
Section
La Mola Conference Centre
Section
La Mola Conference Centre
Elevation
