ARXIU PLA URGELL

Valor - Llimos

CATEGORY
Community center

LOCATION
Mollerussa, spain

ARCHITECTS
Valor - Llimos

BUILDER
Construcciones Lumbierres

COLLABORATORS
BIS Arquitectes, RC Enginyers, Laura Llimós, Marta Coedo

CLIENT
Departament de Cultura. Generalitat de Catalunya

ARCHITECT IN CHARGE
Jaume Valor, Marc Obradó, Elisabeth Sadurní

AREA
1200.0 m²

PHOTOGRAPHS
Lluís Sans

YEAR
2009

Text description provided by architect.

The Regional Public Record Office is located at the boundary between a low density residential neighborhood and an industrial district, and it aims to be a social and cultural generator of the neighborhood.

Arxiu Pla Urgell
© Lluís Sans
Arxiu Pla Urgell
© Lluís Sans
Arxiu Pla Urgell
© Lluís Sans
Arxiu Pla Urgell
© Lluís Sans

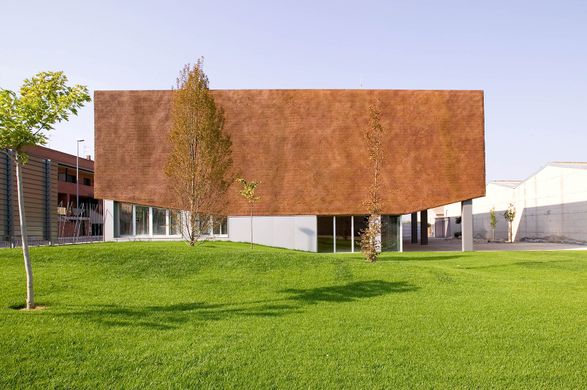

The building is perceived as a large petrous and opaque volume placed over a transparent and permeable body. The volume seems malleable, adapting to the layout of the building; it rises up to mark the entry, and grows to form a porch in the backyard for sun protecting the work areas.

Two patios cut the volume in three parts, allowing natural lighting and ventilation in the darkest areas of the building.

The building is divided into two floors. The ground floor is located one meter below the street level and it is accessed via a ramp down, thus accentuating the feeling of weight in the volume of the first floor.

Arxiu Pla Urgell
© Lluís Sans
Arxiu Pla Urgell
© Lluís Sans

This floor containes the public area and the office zone, while the archives warehouses are placed in the upper floor. This layout makes a very compact and optimized building.

The work areas downstairs (lecture hall, conference hall, classification area and reception area) have direct access to the courtyard of the plot, which can be understood as an extension of interior spaces.

Arxiu Pla Urgell
© Lluís Sans


Arxiu Pla Urgell

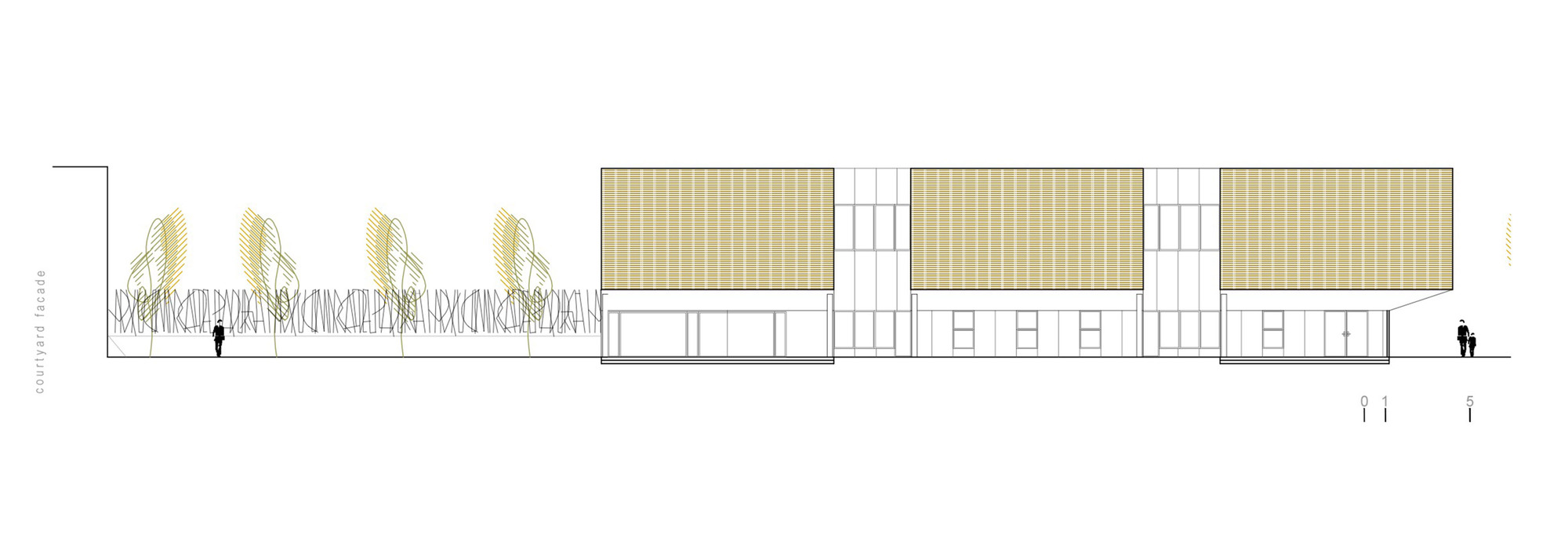

Elevation
Arxiu Pla Urgell

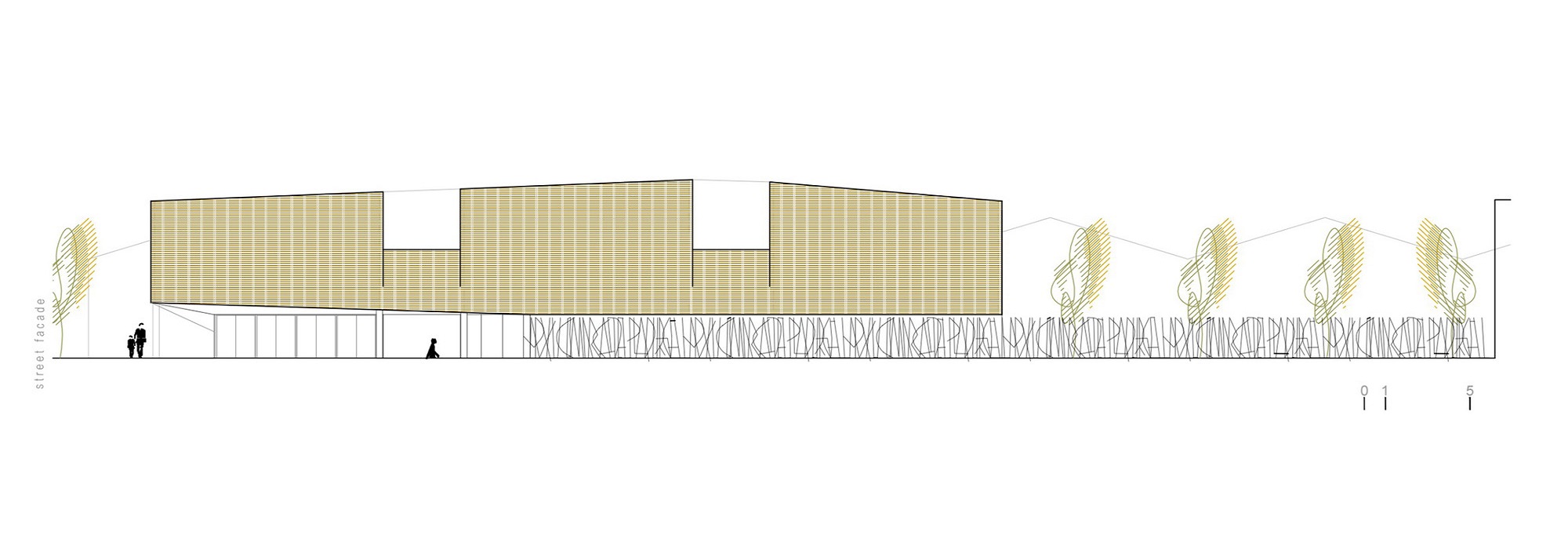

Elevation


Arxiu Pla Urgell

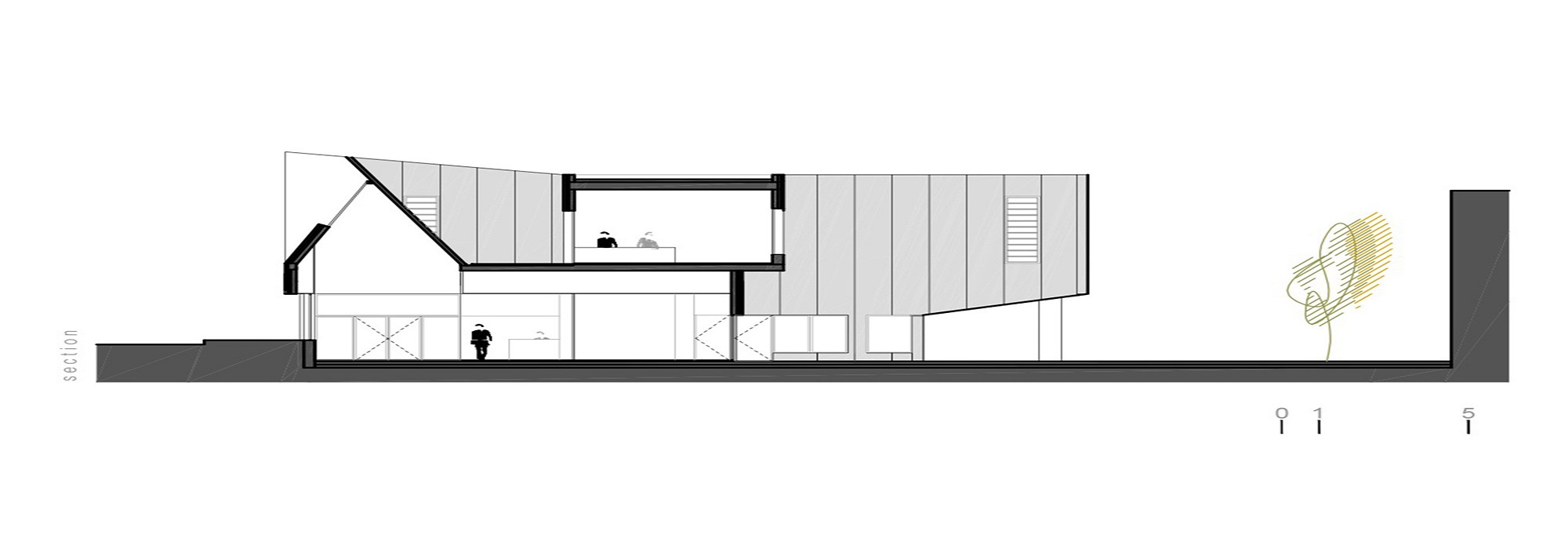

Section


Arxiu Pla Urgell

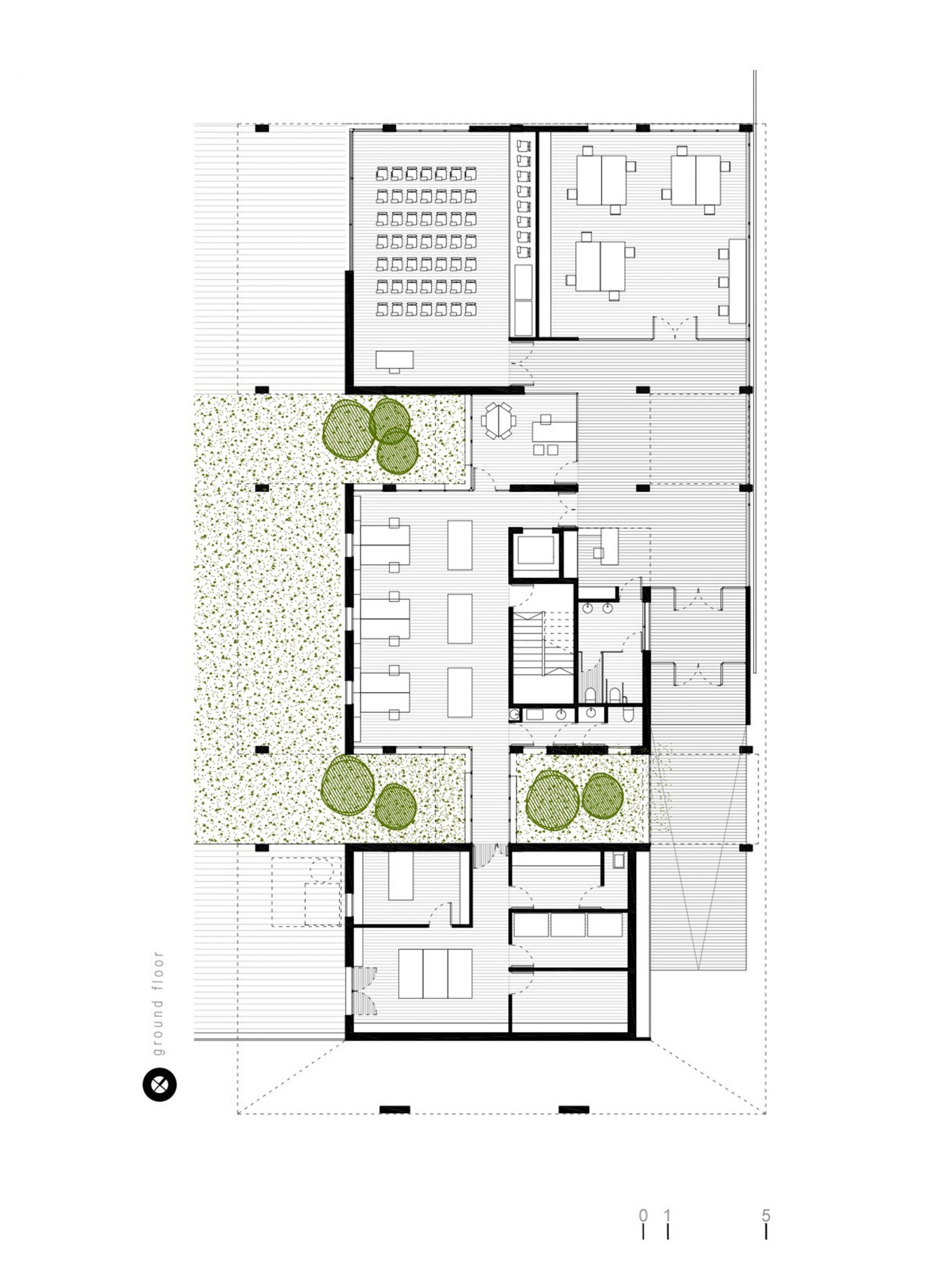

Ground Floor Plan
Arxiu Pla Urgell

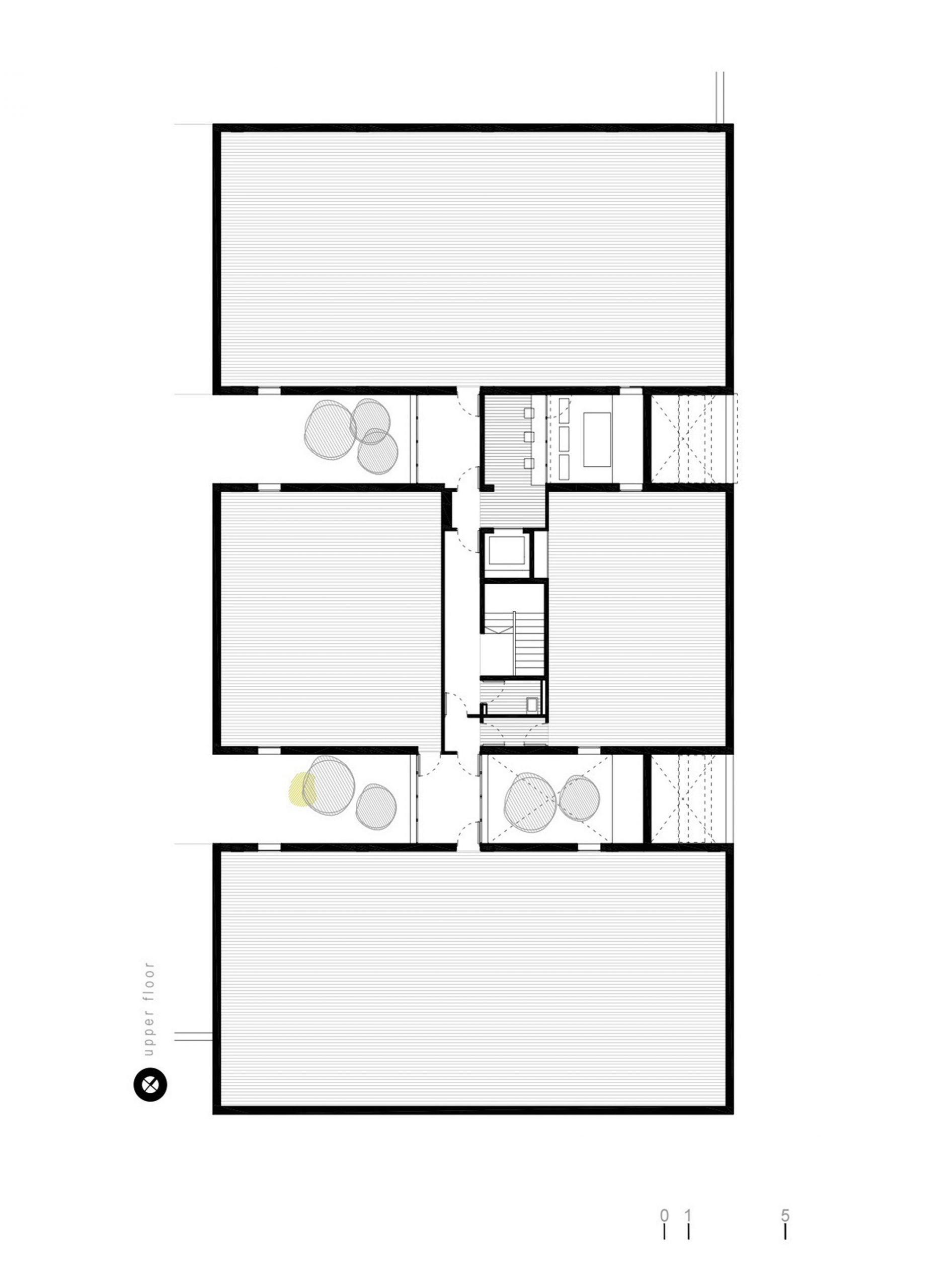

Upper Floor Plan
