Arquitectos Gubbins

Villa El Sol School

VILLA EL SOL SCHOOL

Gubbins Arquitectos

Villa El Sol School
© Cortesía de Gubbins Arquitectos

CATEGORY
Schools

YEAR
2009

LOCATION
Santiago, Chile

ARCHITECTS
Gubbins Arquitectos

MATERIALS
Masonry, concrete, glass

COLLABORATORS
Arq. Bruno Giliberto, Arq. Nicolas Fones, Arq. Beatriz Marin

SITE AREA
2925 m2

ROJECT ARCHITECTS
Pedro Gubbins Foxley, Victor Gubbins Browne

Villa El Sol School
© Cortesía de Gubbins Arquitectos
Villa El Sol School
© Cortesía de Gubbins Arquitectos
Villa El Sol School
© Cortesía de Gubbins Arquitectos
Villa El Sol School
© Cortesía de Gubbins Arquitectos
Villa El Sol School
© Cortesía de Gubbins Arquitectos

The project is located on a site with a special feature; it is 25 meters wide and 100 meters deep, which allows us to develop a 4-storey building occupying almost the entire ground surface. This gives the project a protagonist scale in the neighborhood.

The strategy to not "keep" the dimensions of the property (pre-existing length and width), was to organize the program of the school within a large regular volume, based on a double bay corridor, alternating classrooms and playgrounds in different levels and on both sides of the central circulation.

Villa El Sol School
© Cortesía de Gubbins Arquitectos
Villa El Sol School
© Cortesía de Gubbins Arquitectos
Villa El Sol School
© Cortesía de Gubbins Arquitectos
Villa El Sol School
© Cortesía de Gubbins Arquitectos

This allowed us to open cross perspectives on the site, with views of the mountains and the sunset.

Villa El Sol School
© Cortesía de Gubbins Arquitectos
Villa El Sol School
© Cortesía de Gubbins Arquitectos

Given the north-south orientation of the site, we designed a structural facade system based on U-shaped walls, allowing a depth for sun protection from the east and west.

Villa El Sol School
© Cortesía de Gubbins Arquitectos
Villa El Sol School
© Cortesía de Gubbins Arquitectos

This also generates a base system for interior furnishings in the classrooms, and a rhythm between masonry and concrete walls that display the length and height of the final volume.

Villa El Sol School
© Cortesía de Gubbins Arquitectos
Villa El Sol School
© Cortesía de Gubbins Arquitectos
Villa El Sol School
© Cortesía de Gubbins Arquitectos
Villa El Sol School
© Cortesía de Gubbins Arquitectos


Villa El Sol School

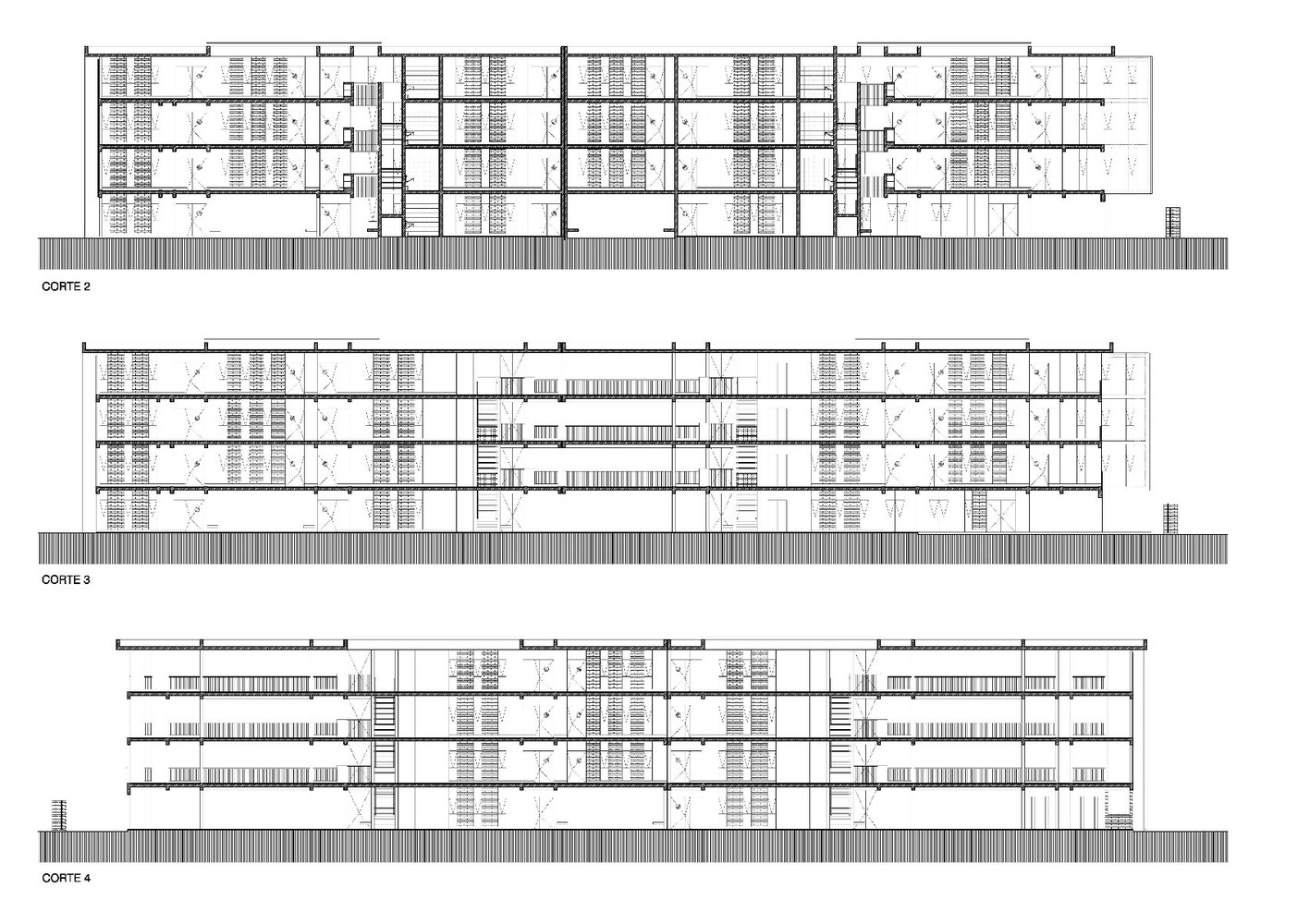

Sections 01
Villa El Sol School
Sections 02
Villa El Sol School
Sections 03


Villa El Sol School
Site Plan
Villa El Sol School
First Level Floor Plan
Villa El Sol School

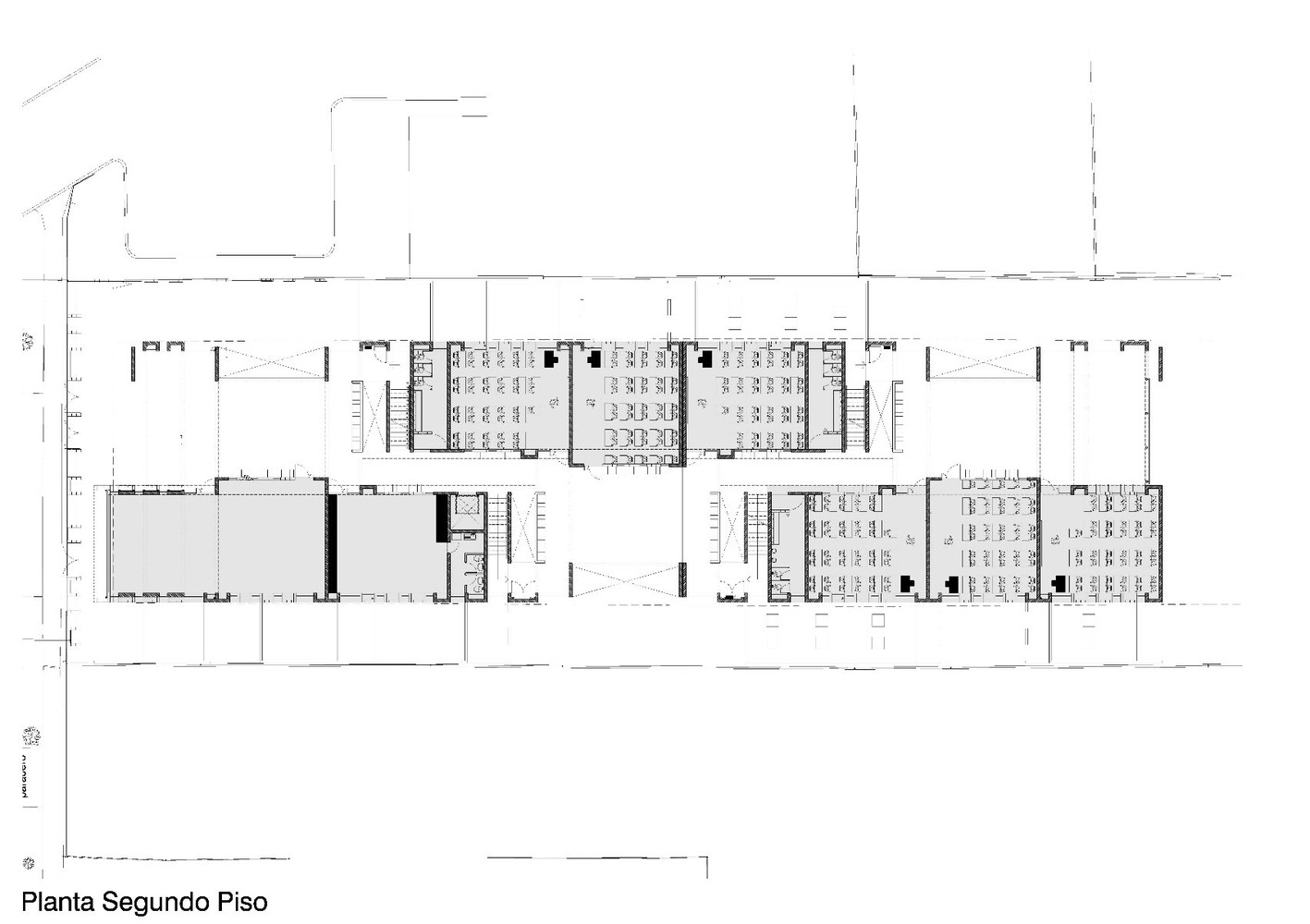

Second Level Floor Plan
Villa El Sol School
Third Level Floor Plan
Villa El Sol School
Fourth Level Floor Plan
Villa El Sol School
Elevations
