BIOTECHNOLOGY INDUSTRY

Marlene Imirzian & Associates

AREA
35400.0 ft²

ARCHITECTS
Marlene Imirzian & Associates

YEAR
2009

LOCATION
Phoenix, United States

CATEGORY
Industrial Architecture

Text description provided by architect.

Phoenix, Arizona has a burgeoning Biotechnology industry and in order to help fill the demand for skilled employees the Paradise Valley Community College plans to double its Biotechnology Program.

The new Life Science Building provides new instructional space, housing the college’s Anatomy, Physiology, General Biology, Biotechnology, Microbiology, Marine Biology and Environmental Biology Programs.

Biotechnology Industry
© Marlene Imirzian & Associates
Biotechnology Industry
© Marlene Imirzian & Associates

Throughout the development of the new Life Sciences Building, three major conceptual ideas led the design team:

Create a major campus amenity and help foster campus-wide interaction by interlacing classrooms, a major campus walk, informal gathering spaces and a campus green under one roof.

Biotechnology Industry
© Marlene Imirzian & Associates
Biotechnology Industry
© Marlene Imirzian & Associates

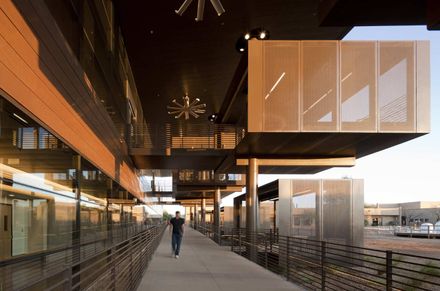

Facing the future campus green, this Big Porch creates an amenity for the entire college community and establishes a truly three-dimensional public space.

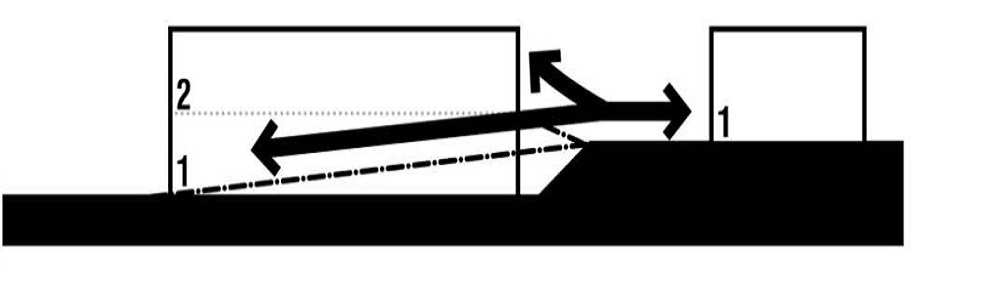

The large, east- facing porch shades a gently sloping bridge, an extension of primary campus circulation, which connects the existing campus to the remote Athletic Fields and to the location of future campus expansion.

Biotechnology Industry
© Marlene Imirzian & Associates
Biotechnology Industry
© Marlene Imirzian & Associates

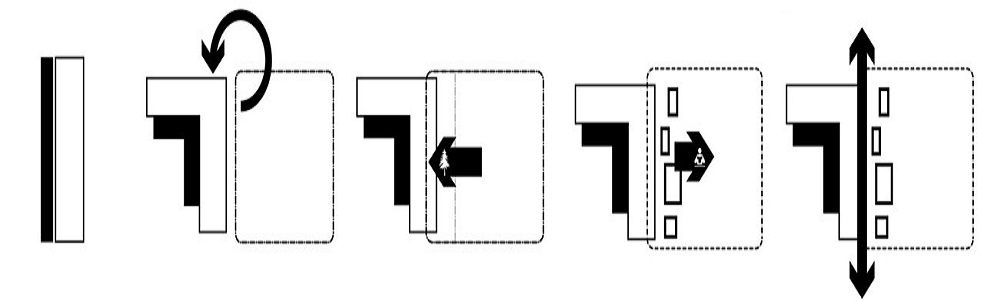

This simple thread weaves the Life Sciences building and these peripheral facilities into the fabric of the campus.

Develop a catalyst for innovation through collaboration. The series of eight exterior collaboration pods located under the Big Porch roof provide welcoming, informal gathering spaces.

Biotechnology Industry
© Marlene Imirzian & Associates
Biotechnology Industry
© Marlene Imirzian & Associates

The various sized pods incorporate power, data, lights, marker boards, fans and furniture to create highly functional spaces that overlook a future campus green. Each collaboration pod is a different size and proportion and features a bridged connection back to the building.

By presenting the pods along the main façade, the Life Sciences Building proudly presents its dedication to interaction and collaboration as a primary value of the sciences.

Respond to the context of the site. It is of great necessity that the new Life Sciences building respond to the extreme temperatures and intense heat of the desert sun.

Biotechnology Industry
© Marlene Imirzian & Associates
Biotechnology Industry
© Marlene Imirzian & Associates

The large “porch” roof shades the glazing and exterior spaces below reducing the temperature and making the exterior spaces usable for most of the year.

The design team also sought to express the beauty and diversity of the Sonoran Desert. A learning Sonoran Desert xeriscape supports the Life Science program. Furthermore, water is scarce.

Biotechnology Industry
© Marlene Imirzian & Associates

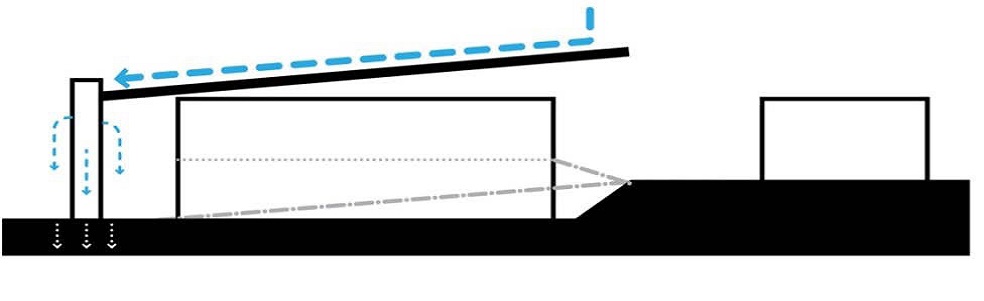

That is why it was important during the design process to celebrate the seasonal monsoons that provide a majority of the desert’s water for the year. The canted roof and rainwater collection system’s design honors these infrequent storms. Playful, oversized downspouts activate when it rains.

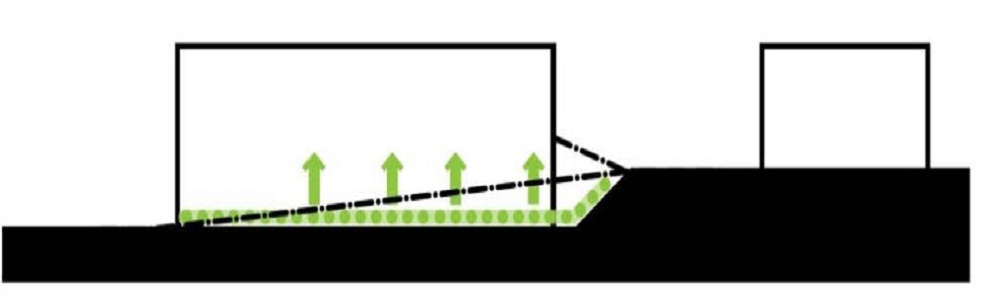

The carefully designed slots along the downspout act as a measuring device, indicating the duration and intensity of the ensuing rains. Water then runs down the exterior of the downspout where it lands above underground cisterns. The rainwater slowly percolates into the ground water, which helps enrich nearby soil rather than diverting it to the city sewer.


Biotechnology Industry

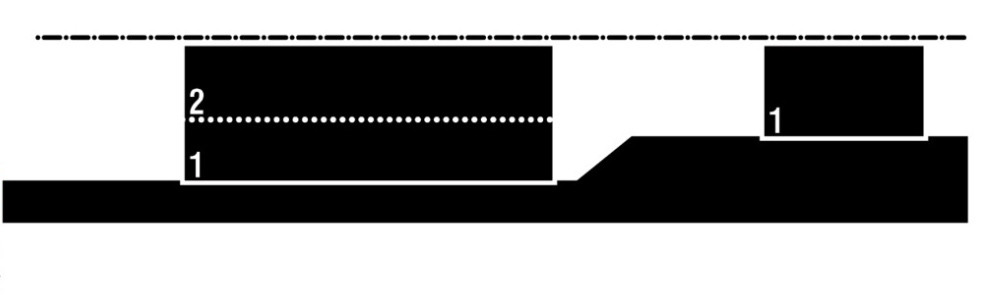

section 01


Biotechnology Industry
drawing 01
Biotechnology Industry
drawing 02
Biotechnology Industry
drawing 03
Biotechnology Industry
drawing 04


Biotechnology Industry

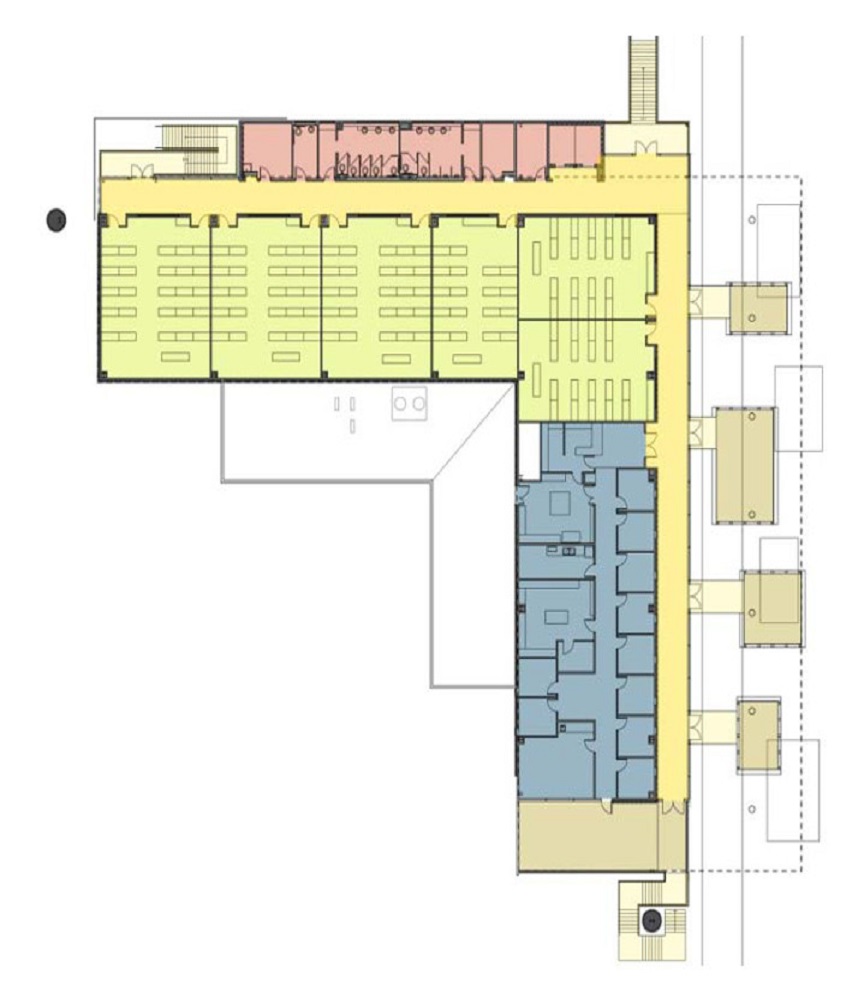

plan 01
Biotechnology Industry
plan 02
