Swanbury Penglase Architects Pty Ltd

Glen Osmond House

Glen Osmond House
© David Russell

GLEN OSMOND HOUSE

Swanbury Penglase

ARCHITECTS
Swanbury Penglase

LOCATION
Glen Osmond, Australia

PROJECT YEAR
2009

PHOTOGRAPHS
David Russell

Text description provided by architect.

A spur of the moment decision to purchase a small house literally across the road has lead to the creation of a home that reflected the clients current and future needs.

Glen Osmond House
© David Russell

The plan has as its basis a functional structure linking kitchen, dining, living and bedrooms at ground floor level into which ancillary spaces connect at specific points.

This structure was overlaid by a defined entry space which connects the two levels, functionally and visually and allows separation of functions and movement.

The living areas connect to both the private courtyard in the rear and a deck area to the north to provide a large entertaining area, while also taking advantage of Adelaide’s normally mild climatic conditions.

Glen Osmond House
© David Russell

The building is contemporary in form, using materials and finishes selected to ensure it sits comfortably within its existing context.

The form is simple, capped by a single skillion roof with detailing added to provide a three dimensional aspect to the façade.

The road is quite narrow, with the streetscape defined by hedges, fences and trees, rather than the existing diverse architectural styles.

Glen Osmond House
© David Russell
Glen Osmond House
© David Russell
Glen Osmond House
© David Russell

In response, the site planning included placing the garage to the rear of the property along with the workshop, accessed by a driveway with a generous entry and exit.

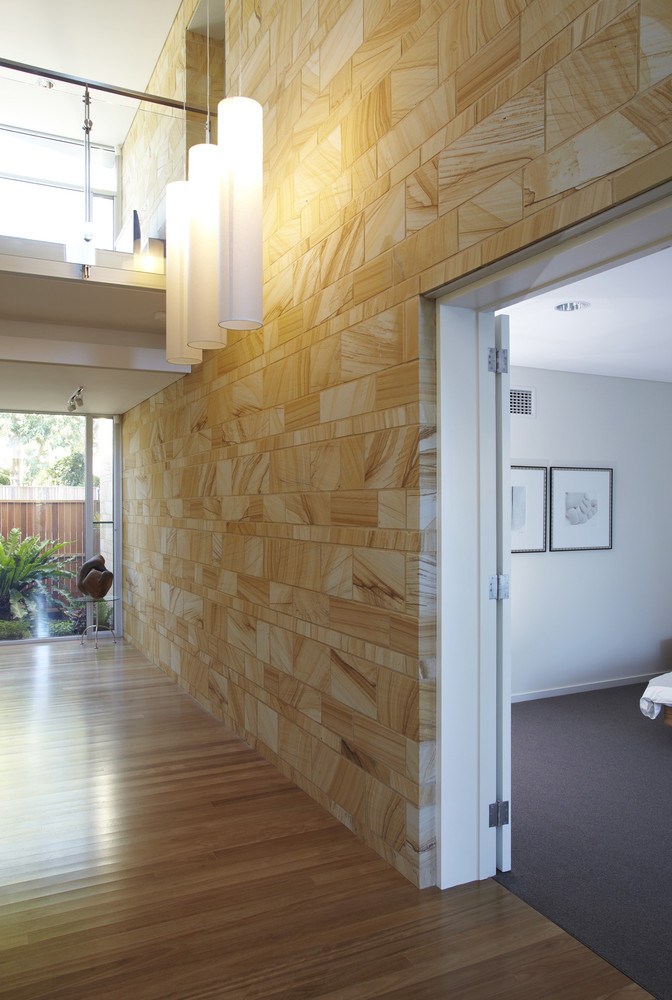

In order to minimise the disruption to surrounding properties, the building was cut into the site, reducing the bulk of the building on the rear boundaries. Materials used include Tasmanian sandstone, cream bricks and zinc wall cladding.

Designed and equipped to minimise energy use, the building shell is well insulated, north and south floor windows are shaded and double glazed with high efficiency glass externally.

Glen Osmond House
© David Russell
Glen Osmond House
© David Russell

Motorized blinds minimise the impact of the sun on the western façade. A large concrete filled spine wall through the centre of plan provides thermal mass to assist the overall thermal performance.

A geothermal air conditioning system, photovoltaic cells and solar hot water have been integrated into the project. To date, energy consumption has been approx 40% of the average usage for a house of comparable size.

Two 5000L rainwater tanks are located below ground under the driveway and collect stormwater from the roof. These have been connected to provide water for toilet flushing and to water the rear courtyard. A grey water recycling system provides water via soaker pipes below ground along the western boundary and portion of the front garden.

Glen Osmond House
© David Russell
Glen Osmond House
© David Russell


Glen Osmond House
Plan
Glen Osmond House
Plan


Glen Osmond House
Section
Glen Osmond House
East Elevation
Glen Osmond House
West Elevation
Glen Osmond House
North Elevation
