Room11 Architects

Allens Rivulet House

Allens Rivulet House
© Ben Hosking
Allens Rivulet House
© Ben Hosking

ALLENS RIVULET HOUSE

Room11

ARCHITECTS
Room11

AREA
346.0 m2

PROJECT YEAR
2009

COLLABORATORS
Nathan Crump, Thomas Bailey, James Wilson

SITE AREA
30 Acres

LOCATION
Allens Rivulet, Australia

PHOTOGRAPHS
Ben Hosking

ENGINEERING
Aldanmark Consulting Engineers

PRINCIPAL IN CHARGE
Aaron Roberts

Allens Rivulet House
© Ben Hosking

Text description provided by architect.

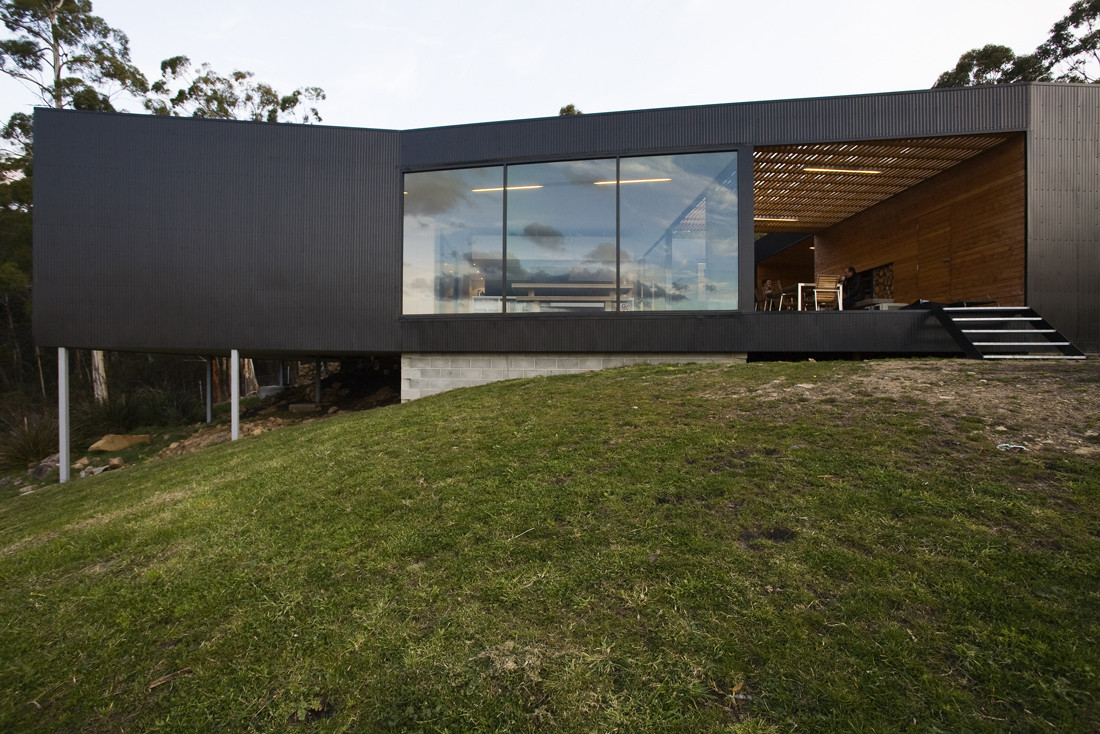

The house has a duality of character and experience defined by the way it responds to context and use. On approach its angular and severe form is a toughened abstract container, bracing itself against the robust Tasmanian landscape and weather conditions.

Passing through the “hollowed out” portals, the warm and sheltering underbelly is exposed and acts as a protective envelope.

Allens Rivulet House
© Ben Hosking
Allens Rivulet House
© Ben Hosking

These areas of in-between, outside but surrounded by the building’s form, are a result of a considered approach to outdoor living within typical Tasmanian weather condition, ie “4 seasons in one day”.

They allow one to sit in the sunshine but avoid the cold winter wind, or alternatively sit outdoors and avoid the harsh high UV summer sun.

Allens Rivulet House
© Ben Hosking
Allens Rivulet House
© Ben Hosking

The spaces shift from fully enclosed to semi enclosed, with roof and without, culminating in a roof deck for maximum exposure and view.

The client’s wish for the kitchen to be the heart of the home generated the internallayout.

Allens Rivulet House
© Ben Hosking
Allens Rivulet House
© Ben Hosking

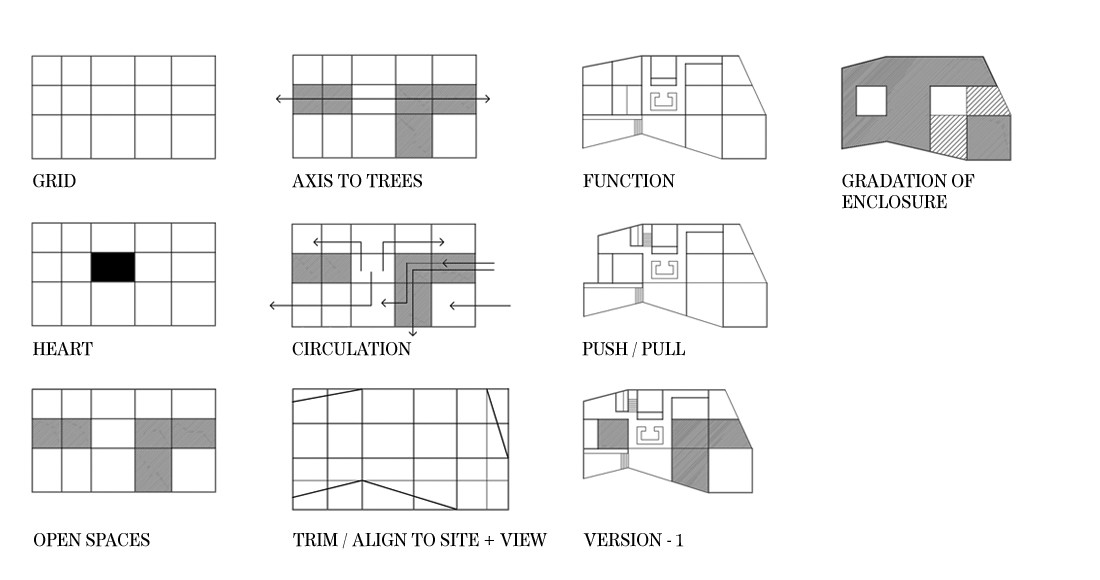

A defined grid relating to the various uses set the kitchen at its centre, becoming slightly deformed as rooms were angled towards particular views. Revolving around this heart the house eventually lifts to peer over the first level ring and towards Mt Wellington.

Voids allow the heart to be visible from various spaces within the house. The compact plan is extended via the positioning of voids and linked external areas. Internal and external spaces are blurred at one extreme, and highly contained in others.

 Dark metallic cladding was employed for low maintenance and to allow the building to recede into the shadows of the hill-scape when viewed from afar. Entry points and areas for outdoor living were conceptually cleaved out of the metallic box and lined with “warm” timber.

Allens Rivulet House
© Ben Hosking
Allens Rivulet House
© Ben Hosking

The house employs a suspended concrete slab through the living area for thermal mass, absorbing the heat transferred through glass walls to the north. Natural ventilation operates via airflow through the connecting adjacent tree voids.


Allens Rivulet House
Ground Floor Plan
Allens Rivulet House
First Floor Plan
Allens Rivulet House
Site Plan
Allens Rivulet House
Outdoor Spaces Diagram


Allens Rivulet House
Grid Diagram
Allens Rivulet House
Perspective


Allens Rivulet House
Elevations 01
Allens Rivulet House
Elevations 02


Allens Rivulet House
Sections
