A-RING

Atelier Tekuto

ARCHITECTS
Yasuhiro Yamashita+Toshinao Iki/Atelier TEKUTO

PHOTOGRAPHS
Toshihiro Sobajima

AREA
136.62 m²

YEAR
2009

LOCATION
Japan

CATEGORY
Houses

Text description provided by architect.

A-ring is the third edition in the Aluminum House Project series and represents the culmination of the previous two.

A-Ring
© Toshihiro Sobajima
A-Ring
© Toshihiro Sobajima

The main structure is composed of an aluminum ring and a frame of an aluminum column and beam.

The ring is made from four aluminum molds interlocked into a ring shape.

A-Ring
© Toshihiro Sobajima
A-Ring
© Toshihiro Sobajima

The dies (molds) from which the aluminum ring were created, were developed by Atelier Tekuto, Jun Sato structure design office, Shin Nikkei Co. Ltd. and Miyashita Lab. of Kanazawa Institute of Technology.

The aluminum ring fully integrated the radiant cooling/heating and lighting systems by imbedding them within its structure.

A-Ring
© Toshihiro Sobajima
A-Ring
© Toshihiro Sobajima

This cooling system was developed by Atelier Tekuto, PS Company Co. Ltd., EOS plus and Miyashita Lab and Nagano Lab of Kanazawa Institute of Technology.

The lighting which uses LEDs was developed by Visual Technology Laboratory and Koizumi Lighting Technology Corporation.

A-Ring
© Toshihiro Sobajima
A-Ring
© Toshihiro Sobajima

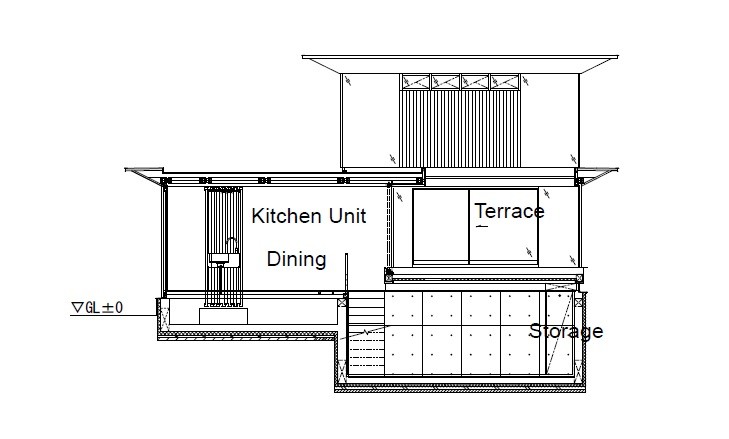

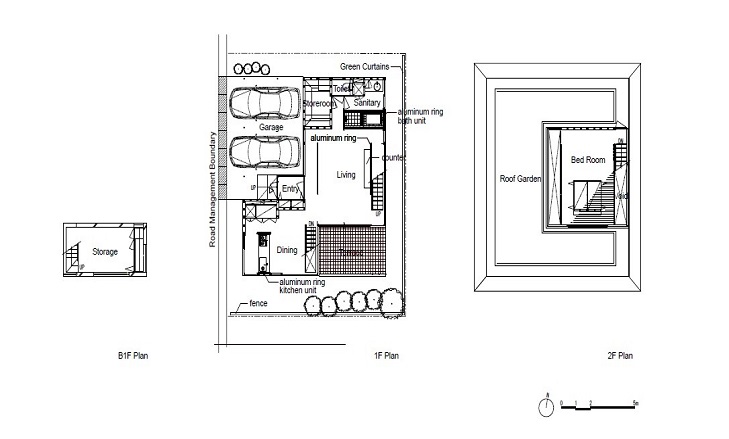

In addition to these, Atelier Tekuto developed two more aluminum rings to accommodate the hydraulic functions of the house.They are a bath unit and a kitchen unit developed by Atelier Tekuto, Shin Nikkei Co. Ltd. and INAX.

The challenge of the project was to minimize it’s running costs and environmental footprint by relying on natural energy systems such as geothermal heating/cooling and natural light and ventilation.

A-Ring
© Toshihiro Sobajima
A-Ring
© Toshihiro Sobajima

The geothermal heating/cooling system was imbedded into the aluminum ring.The system to capture ground energy was developed and realized by Atelier Tekuto, Kanaiwa Co. Ltd., and Miyashita Lab and Nagano Lab of Kanazawa Institute of Technology.

Atelier Tekuto and Greens Co. Ltd. developed a green garden fence called “Green Curtain”, which re-uses captured rain water. Furthermore, Atelier Tekuto, Masaki Envec Co. Ltd. and Greens Co. Ltd. developed the second floor roof garden.

A-Ring
© Toshihiro Sobajima
A-Ring
© Toshihiro Sobajima

A-Ring was selected as “Model House & Architecture Project of Standardized Structured Conservation of 2008” by Ministry of Land, Infrastructure, Transport and Tourism.

Collection of environmental data on CO2 emission and power consumption from this house is ongoing.

A-Ring
© Toshihiro Sobajima
A-Ring
© Toshihiro Sobajima

Aluminum is still regarded as special material in the building industry. The technical data gathered from this project aims to help aluminum take its place among concrete, steel and wood as an essential building material.


A-Ring
Courtesy of Yasuhiro Yamashita+Toshinao Iki/Atelier TEKUTO
A-Ring
Courtesy of Yasuhiro Yamashita+Toshinao Iki/Atelier TEKUTO
A-Ring
Courtesy of Yasuhiro Yamashita+Toshinao Iki/Atelier TEKUTO
A-Ring
Courtesy of Yasuhiro Yamashita+Toshinao Iki/Atelier TEKUTO


A-Ring
Courtesy of Yasuhiro Yamashita+Toshinao Iki/Atelier TEKUTO
A-Ring
Courtesy of Yasuhiro Yamashita+Toshinao Iki/Atelier TEKUTO
A-Ring
Courtesy of Yasuhiro Yamashita+Toshinao Iki/Atelier TEKUTO
