ELESKO WINERY + ZOYA MUSEUM

Cakov + Partners

PHOTOGRAPHS
Tomas Manina, Juraj Bartoš

DESIGN TEAM
Kalin Cakov, Metodiy Monev, Jan Obušek, Miloš Djuračka, Martin Boška

AREA
5400.0 m2

MANUFACTURERS
Halfen, ZIPP

PROJECT YEAR
2009

LOCATION
Modra, Slovakia

CATEGORY
Winery, Museums & Exhibit

Text description provided by the architects.

The facility is located in the central part of the site (25 000m2) in one of the most famous wine regions of Slovakia – the Small Carpathian wine region, close to the capital Bratislava. Wine is made exclusively from own grape, raised in own vineyards.

ELESKO Winery + ZOYA Museum
 © Tomas Manina
ELESKO Winery + ZOYA Museum
© Juraj Bartoš

Current year production is 600 000 bottles, with a potential of increase up to 1.2 million bottles.

The goal was to include under one roof diverse functions – wine production, art, gastronomy, shop, hotel with wellness area and hunting room, offices, staff accommodation etc.

ELESKO Winery + ZOYA Museum
© Juraj Bartoš
ELESKO Winery + ZOYA Museum
© Tomas Manina

The main entrance is located from the state road between the towns of Modra and Dubová. The complex of the winery (5400m2) is designed as a compact unit and is sensitively composed into the site using its natural slope, giving a clear functional division of the architectural mass.

The winery part is an archaic concrete prism with a green wall which is also creating a visual barrier for the production part, eliminating the negative visual perception of the hall.

ELESKO Winery + ZOYA Museum
© Tomas Manina
ELESKO Winery + ZOYA Museum
© Tomas Manina

The manufacture and distribution as well as all the other relevant parts of the wine factory are in the northern part. Service court is in the western part, composed in the terrain cut. The entire production area is mostly located below the surface, entirely covered by green roofs, which largely improves the energy balance.

At the entrance hall is the wine tasting in a comfortable environment with fireplace with visual contact with the tank hall, wine cellar, barrique cellar and wine archive. This space is also used for banquets, conferences etc.

ELESKO Winery + ZOYA Museum
© Tomas Manina
ELESKO Winery + ZOYA Museum
© Tomas Manina

From the entrance hall concrete stairs lead to the restaurant on the second floor with a large fireplace and visual contact with the kitchen, southerly and northerly views to the exterior and also with direct connection via the rear entrance to an outdoor terrace.

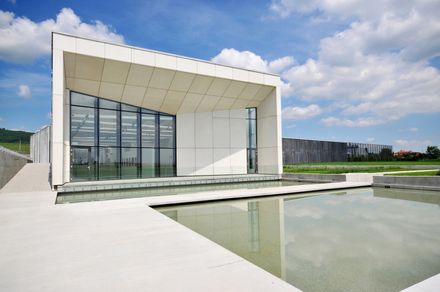

From the museum is a spectacular view to the exterior thru the glassed façade, bracket terrace over the water surface. The museum is focused on the art from the second half of the 20-th century.

ELESKO Winery + ZOYA Museum
© Tomas Manina
ELESKO Winery + ZOYA Museum
© Juraj Bartoš

The museum object is divided according to the architectural design for segments of different geometry of 18 m span and separate structure of reinforced wall of 30 cm thickness wedged into the foundation structures.

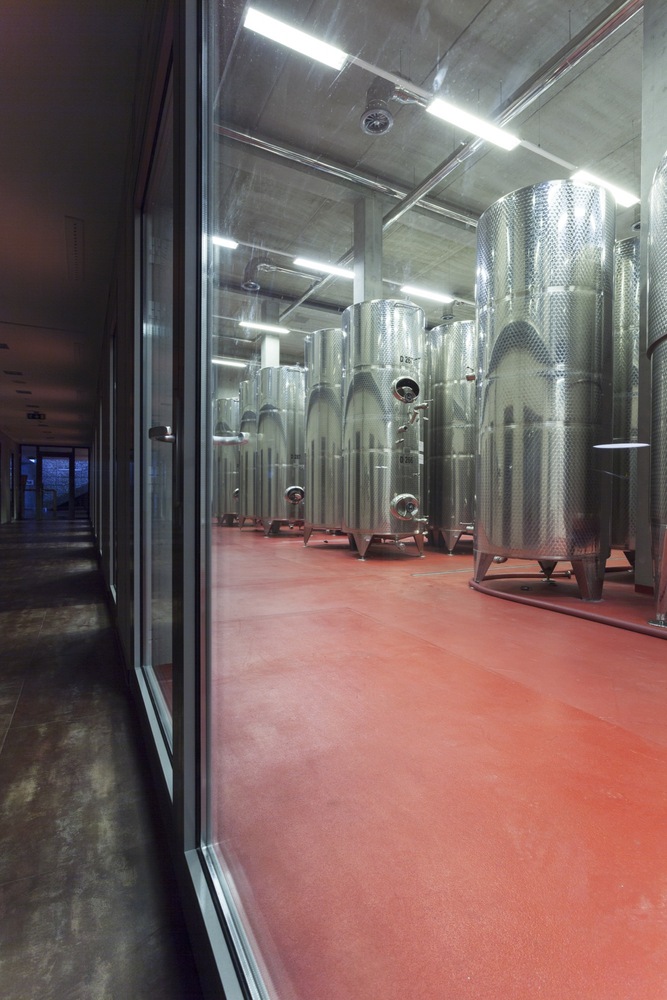

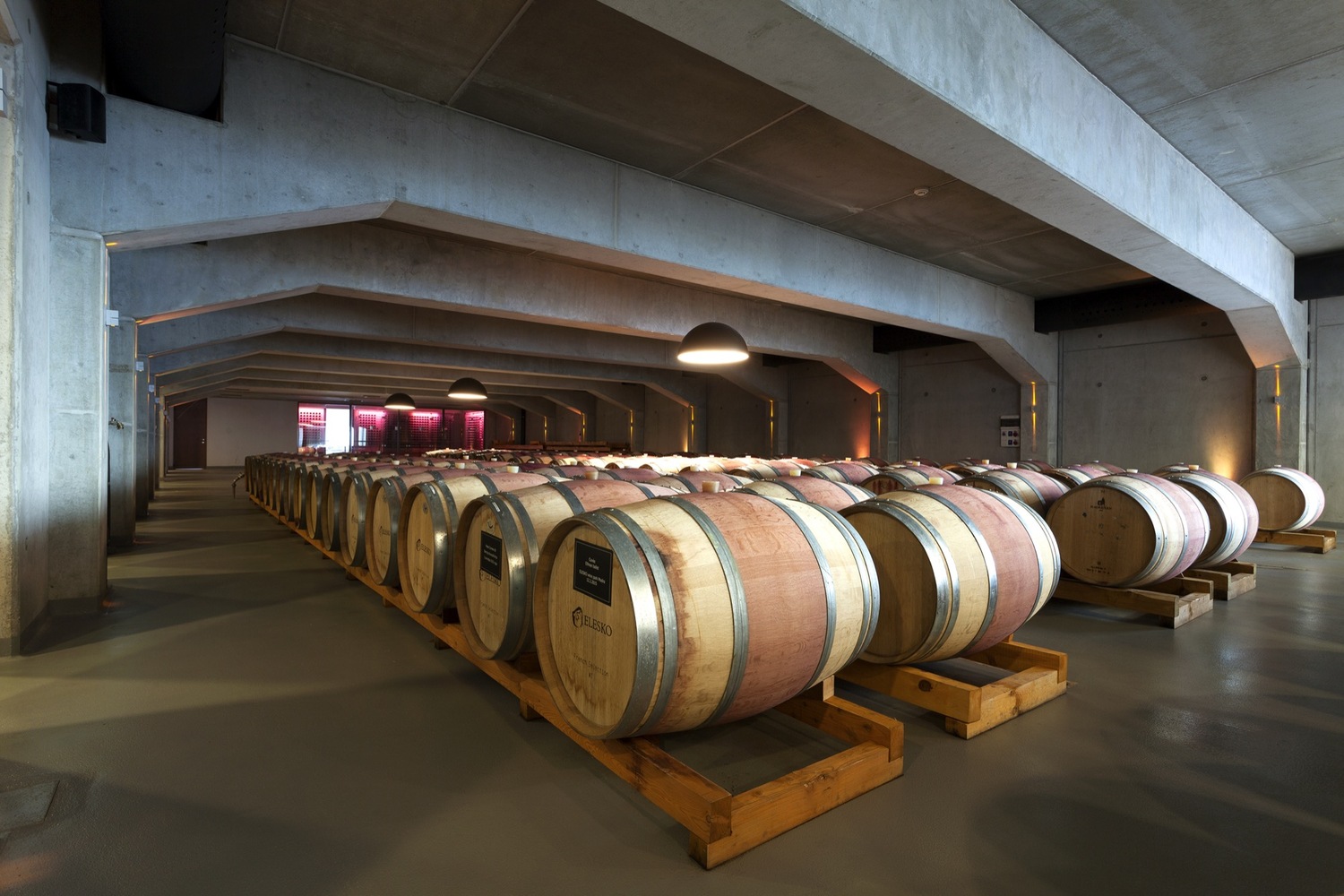

Long glassed corridor for visitors from the entrance hall allows watching the production as well as a sight into the barrique cellar. At the end of this communication is the owners own VIP atrium, office, tasting salon, archives and own facilities.

ELESKO Winery + ZOYA Museum
© Tomas Manina
ELESKO Winery + ZOYA Museum
© Tomas Manina
ELESKO Winery + ZOYA Museum
© Tomas Manina

Management of production and the administration is located in the second storey of the production hall with an exit to the economic court.

Daylight distribution into the production hall is secured through monolithic skylights on the green roof faced to the north, by which direct sunlight is prevented.

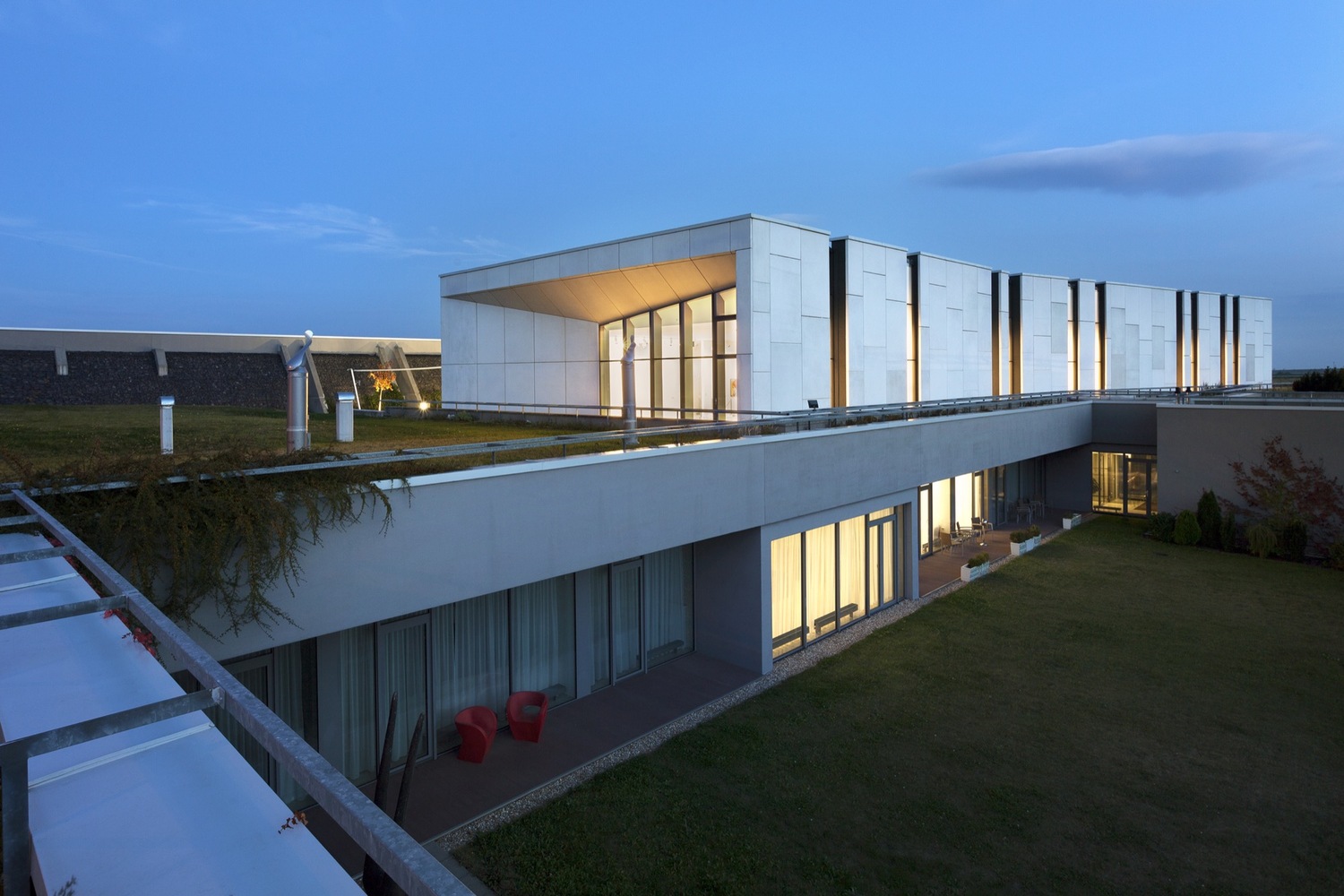

Accommodation for the manager is designed as an energy house with green roof, with only one glass facade to the southwest. It is sunk into the terrain creating its own patio and by this is separated from the public part of the area.

ELESKO Winery + ZOYA Museum
© Tomas Manina
ELESKO Winery + ZOYA Museum
© Tomas Manina
ELESKO Winery + ZOYA Museum
© Tomas Manina

The production building is two-storey and part single-storey. The modular system is 6x7.5 m, at the barrique cellar 3x12 m. The supporting system consists of 30cm thick prefabricated monolithic interior peripheral walls.

Apartments and the house of the employees are located in a single-storey building with a green roof.

ELESKO Winery + ZOYA Museum
© Tomas Manina


ELESKO Winery + ZOYA Museum
© Tomas Manina
ELESKO Winery + ZOYA Museum
© Tomas Manina
ELESKO Winery + ZOYA Museum
© Tomas Manina
ELESKO Winery + ZOYA Museum
© Tomas Manina
ELESKO Winery + ZOYA Museum
© Tomas Manina
ELESKO Winery + ZOYA Museum
© Tomas Manina
ELESKO Winery + ZOYA Museum
© Tomas Manina


ELESKO Winery + ZOYA Museum

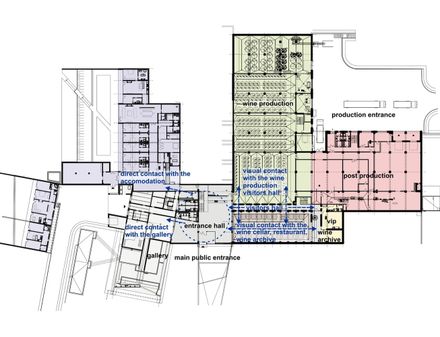

First floor diagram
ELESKO Winery + ZOYA Museum
Second floor diagram
ELESKO Winery + ZOYA Museum
Site plan


ELESKO Winery + ZOYA Museum
Section
ELESKO Winery + ZOYA Museum
Section
ELESKO Winery + ZOYA Museum
Section
ELESKO Winery + ZOYA Museum
West elevation


ELESKO Winery + ZOYA Museum
Skylight details
ELESKO Winery + ZOYA Museum
Skylight axonometric
